John Deere X300 - PC9519 - Mower Drive - ST541499

Description

John Deere X300

PC Number - PC9519

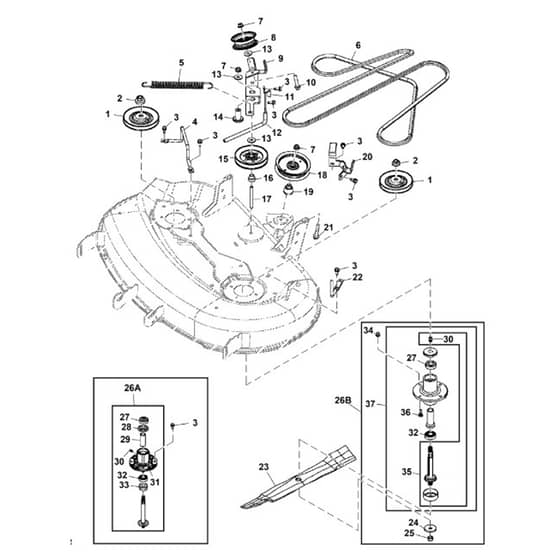

Mower Drive Belt, Sheaves, Spindles And Blades, 42X Inch - ST541499

	Part No.	Details
1	JDUC26511 Available to backorder	Mower Drive Pulley	£56.21 £46.84
2	JDGX20513 Available to backorder	Hexagonal Lock Nut 9/16"	£5.89 £4.91
3	JDGX22456 In stock	Screw M8 x 20	£1.57 £1.31
5	JDM155068 Available to backorder	Extension Spring	£18.64 £15.53
6	JDM154621 In stock	V-Belt Effective Length 3714.6 mm 146.24 inch	£164.99 £137.49
7	JD14M7296 Available to backorder	14M7296 Hexagonal Flange Nut M10	£1.12 £0.93
8	JDAM135773 Available to backorder	Idler Pulley	£118.32 £98.60
9	JDM154271 Available to backorder	Idler Arm	£59.68 £49.73
10	JD19M8320 Available to backorder	19M8320 Hexagonal Head Flange Bolt M10 x 45	£3.48 £2.90
12	JDM153929 Available to backorder	Handle	£75.96 £63.30
13	JD24M7178 Available to backorder	24M7178 Round Hole Washer	£1.68 £1.40
14	JDM154421 Available to backorder	Cylindrical Flanged Alloy Bushing	£16.70 £13.92
16	JDM71682 Available to backorder	Cylindrical Flanged Alloy Bushing	£5.56 £4.63
18	JDAM135526 Available to backorder	Mower Deck Drive Sheave Assembly	£78.48 £65.40
19	JDM154979 Available to backorder	Bushing	£18.37 £15.31
21	JD19M7807 Available to backorder	19M7807 Hexagonal Head Flange Bolt M10 x 60	£4.73 £3.94
23	JDAM141032 Available to backorder	Medium Lift Mower Blade 42 Inch	£107.88 £89.90
23	JDAM141034 Available to backorder	High Lift Bagging Mower Blade Kit 42 Inch	£111.24 £92.70
23	JDAM141033 Available to backorder	Mulching Mower Blade Kit 42x Inch	£114.24 £95.20
24	JDM147138 In stock	Concave Washer	£16.66 £13.88
24	JDM149625 In stock	Concave Washer	£6.34 £5.28
25	JDM159140 Available to backorder	Hexagonal Lock Nut 15.875 mm 5/8"	£4.30 £3.58
26	JDAM137483 In stock	Mower Belt Drive Housing [26B]	£166.36 £138.63
27	JDGX20818 Available to backorder	Single Row Cylindrical Ball Bearing	£12.79 £10.66
28	JDGX21927 Available to backorder	Sheave Spacer	£6.17 £5.14
30	JDJD7849 Available to backorder	Shank Drive Lubrication Fitting	£1.25 £1.04
32	JDGX21510 Available to backorder	Single Row Cylindrical Ball Bearing	£25.46 £21.22
33	JDGX21695 Available to backorder	Spacer	£10.66 £8.88
34	JD14M7396 Available to backorder	14M7396 Hexagonal Flange Self-Lock Nut M8	£0.41 £0.34
35	JDAM141110 Available to backorder	Mower Deck Spindle	£68.40 £57.00
36	JD19M7867 Available to backorder	19M7867 Hexagonal Head Flanged Screw M8 x 25	£1.67 £1.39
