John Deere X300 - PC9519 - Belt Drive (040001 - ) - ST541467

Name: John Deere X300 - PC9519 - Belt Drive (040001 - ) - ST541467
SKU: X300_PC9519_ST541467-group
Price: 0.42 GBP
Availability: InStock

Part No. X300_PC9519_ST541467-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

John Deere X300 - PC9519 - Belt Drive (040001 - ) - ST541467

Description

John Deere X300

PC Number - PC9519

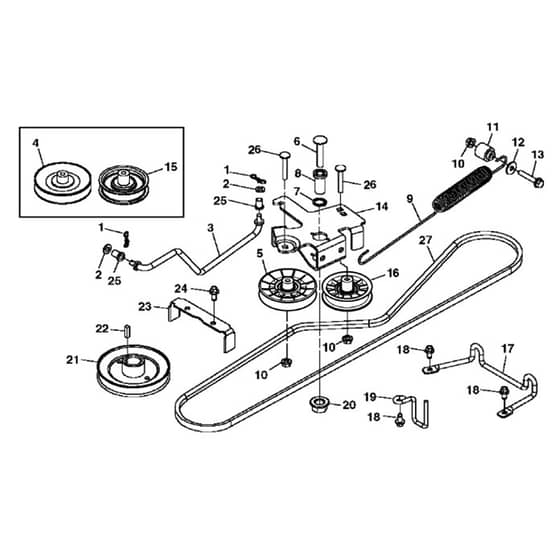

Belt Drive And Idlers (040001 - ) - ST541467

	Part No.	Details
1	JDM146729 Available to backorder	Spring Locking Pin	£0.71 £0.59
2	JD24M7055 Available to backorder	Round Hole Washer	£0.50 £0.42
5	JDAUC20589 In stock	Belt Drive Pulley	£36.35 £30.29
6	JD03M7212 Available to backorder	03M7212 Round Head Square Neck Bolt M16 x 80	£9.62 £8.02
9	JDM151783 Available to backorder	Extension Spring	£13.18 £10.98
10	JD14M7298 Available to backorder	14M7298 Hexagonal Flange Nut M8	£0.68 £0.57
12	JD24M7298 Available to backorder	24M7298 Round Hole Washer	£1.45 £1.21
13	JD19M7799 Available to backorder	19M7799 Hexagonal Head Flanged Screw M8 x 45	£2.89 £2.41
14	JDM157101 Available to backorder	Idler Arm	£32.54 £27.12
16	JDAUC20590 In stock	Flat Idler Pulley	£34.00 £28.33
18	JDM167872 Available to backorder	Self-Tapping Screw M8 x 16	£1.52 £1.27
19	JDM151787 Available to backorder	Guide	£27.88 £23.23
20	JD14M7291 Available to backorder	14M7291 Hexagonal Flange Lock Nut M16	£3.85 £3.21
21	JDAUC11772 Available to backorder	Engine Pulley	£89.28 £74.40
22	JDM45460 Available to backorder	Shaft Key	£2.66 £2.22
24	JDGX22456 In stock	Screw M8 x 20	£1.57 £1.31
25	JDM154467 Available to backorder	Flanged Bushing	£1.14 £0.95
26	JD03M7216 Available to backorder	03M7216 Carriage Bolt M8 x 50	£2.48 £2.07
27	JDUC35484 In stock	V-Belt Effective Length 2334 mm 91.8 inch	£85.30 £71.08
27	JDM151277 Available to backorder	Powertrain Drive V-Belt Effective Length 2348 mm 92.4 inch	£92.52 £77.10
