John Deere X155R - PC10452 - Blades - ST698903

Description

John Deere X155R

PC Number - PC10452

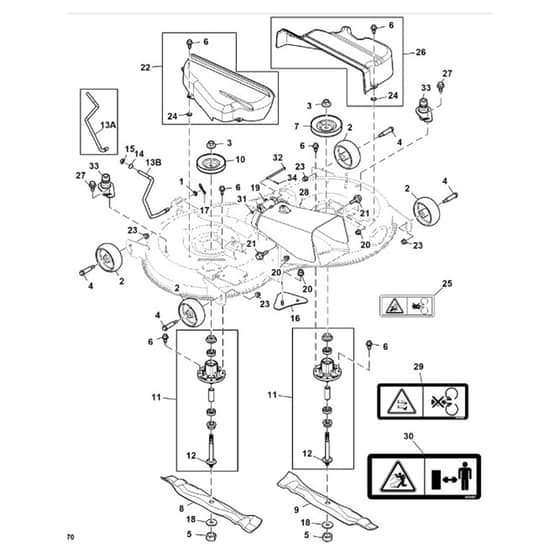

Blades, Gage Wheels, Spindles And Upper Chute - ST698903

	Part No.	Details
1	JD24M7044 In stock	24M7044 Round Hole Washer	£0.66 £0.55
2	JDGX10168 In stock	Gauge Wheel	£20.04 £16.70
3	JDGX20513 Available to backorder	Hexagonal Lock Nut 9/16"	£5.89 £4.91
4	JDGX21012 In stock	Hexagonal Flanged Head Self-Locking Screw M10 x 70	£6.91 £5.76
5	JDGX21694 In stock	Blade Mounting Lock Nut 5/8"	£5.80 £4.83
6	JDGX22456 In stock	Screw M8 x 20	£1.57 £1.31
7	JDGX22616 Available to backorder	Mower Deck Drive Sheave	£51.82 £43.18
8	JDGX23227 In stock	Left Side Mower Deck Blade 42 inch	£50.69 £42.24
9	JDGX23228 In stock	Right Side Mower Deck Blade 42 inch	£50.69 £42.24
10	JDGX23372 Available to backorder	Sheave	£58.06 £48.38
11	JDAUC15811 Available to backorder	Mower Deck Drive Spindle	£115.20 £96.00
12	JDGX22975 Available to backorder	Shaft	£80.04 £66.70
13	JDGX26402 Available to backorder	Mower Deck Lift Linkage Rod [13B]	£43.28 £36.07
13	JDGX23098 Available to backorder	Front Draft Arm [13A]	£99.36 £82.80
14	JDM112982 In stock	Ball	£1.57 £1.31
15	JDH135891 Available to backorder	Hexagonal Lock Nut M10	£2.48 £2.07
16	JDGY21217 Available to backorder	Grass Deflector	£40.58 £33.82
17	JDM144705 Available to backorder	Spring Locking Pin	£1.28 £1.07
18	JDM149625 In stock	Concave Washer	£6.34 £5.28
19	JDM75239 Available to backorder	Extension Spring	£11.38 £9.48
19	JDGX25193 Available to backorder	Extension Spring	£9.62 £8.02
20	JD14M7396 Available to backorder	14M7396 Hexagonal Flange Self-Lock Nut M8	£0.41 £0.34
21	JDM153513 Available to backorder	Hexagonal Head Flanged Screw M8 x 28	£3.14 £2.62
22	JDGY21465 Available to backorder	Left Side Decals Shield	£51.20 £42.67
23	JD14M7400 In stock	14M7465 Hexagonal Lock Nut M10	£2.36 £1.97
24	JDM84309 Available to backorder	Retainer Nut 5/16"	£1.68 £1.40
25	JDGX23397 Available to backorder	Label	£12.43 £10.36
26	JDGY21466 Available to backorder	Shield Dirt Shield	£58.31 £48.59
27	JD37M7458 Available to backorder	37M7458 Hexagonal Flanged Head Self-Tapping Screw M6 x 12	£1.18 £0.98
28	JDGX23059 Available to backorder	Top Deck Chute	£127.32 £106.10
28	JDGX24236 Available to backorder	Chute	£41.02 £34.18
29	JDGX23398 Available to backorder	Label	£12.43 £10.36
30	JDGX23400 Available to backorder	Label	£12.43 £10.36
31	JD24M7088 Available to backorder	Round Hole Washer	£0.48 £0.40
33	JDGX22426 In stock	Deck Wash Water Port Plate	£7.57 £6.31
34	JDM112711 Available to backorder	Spring Locking Pin	£0.34 £0.28
