John Deere X147R - PC16001 - Mower Drive - ST1012587

Name: John Deere X147R - PC16001 - Mower Drive - ST1012587
SKU: X147R_PC16001_ST1012587-group
Price: 0.23 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

John Deere X147R - PC16001 - Mower Drive - ST1012587

Description

John Deere X147R

PC Number - PC16001

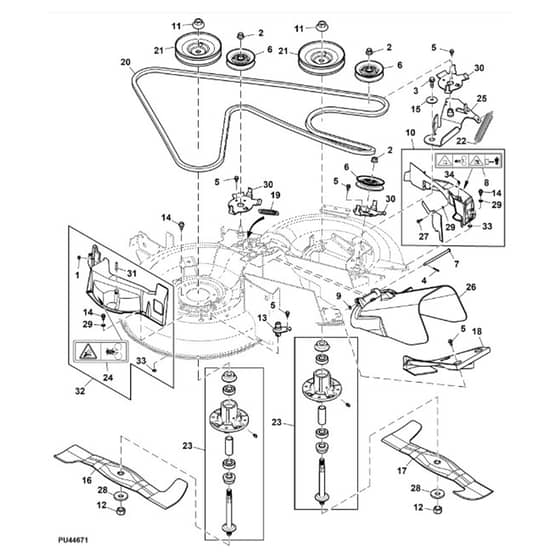

Mower Drive Belt, Blades, Sheaves And Spindles, Rear Discharge Rear Collect, 36 Inch - ST1012587

Be the first to review this product

0 product questions

	Part No.	Details
1	JD14M7396 Available to backorder	14M7396 Hexagonal Flange Self-Lock Nut M8	£0.46 £0.38
2	JD14M7400 Available to backorder	14M7465 Hexagonal Lock Nut M10	£2.20 £1.83
3	JD19M7867 Available to backorder	19M7867 Hexagonal Head Flanged Screw M8 x 25	£1.60 £1.33
4	JDM112711 Available to backorder	Spring Locking Pin	£0.34 £0.28
5	JD37M7458 Available to backorder	37M7458 Hexagonal Flanged Head Self-Tapping Screw M6 x 12	£1.19 £0.99
6	JDAM118447 In stock	Sheave Idler	£52.20 £43.50
9	JD24M7088 Available to backorder	Round Hole Washer	£0.28 £0.23
10	JDAUC12064 Available to backorder	Shield Kit	£106.87 £89.06
11	JDGX20513 Available to backorder	Hexagonal Lock Nut 9/16"	£5.44 £4.53
12	JDGX21694 In stock	Blade Mounting Lock Nut 5/8"	£5.15 £4.29
13	JDGX22426 In stock	Deck Wash Water Port Plate	£7.08 £5.90
14	JDGX22456 Available to backorder	Screw M8 x 20	£1.40 £1.17
15	JDGX23240 Available to backorder	Pivot Bushing	£1.60 £1.33
16	JDGX24566 In stock	Left Side Mower Deck Blade 36 inch	£59.16 £49.30
17	JDGX24567 In stock	Right Side Mower Deck Blade 36 inch	£56.10 £46.75
18	JDGX24914 Available to backorder	Mower Drive Belt Deflector	£32.39 £26.99
19	JDGX25193 Available to backorder	Extension Spring	£9.62 £8.02
20	JDGX25209 In stock	HBB Section Mower Drive V-Belt	£188.16 £156.80
21	JDGX25210 Available to backorder	Mower Deck Pulley	£172.46 £143.72
22	JDGX23274 Available to backorder	Extension Spring	£20.76 £17.30
23	JDAUC15811 Available to backorder	Mower Deck Drive Spindle	£106.92 £89.10
24	JDGX23397 Available to backorder	Label	£12.43 £10.36
25	JDGY21909 Available to backorder	Arm	£108.19 £90.16
26	JDGX24472 Available to backorder	Chute	£37.36 £31.13
27	JD19M7863 Available to backorder	19M7863 Hexagonal Head Flanged Screw M6 x 25	£1.22 £1.02
28	JDM149625 In stock	Concave Washer	£5.83 £4.86
29	JD24M7095 Available to backorder	24M7095 Round Hole Washer	£0.38 £0.32
30	JDGX25573 Available to backorder	Guide	£25.87 £21.56
31	JDGX20455 Available to backorder	Belt Guide Rod	£13.79 £11.49
33	JDM84309 Available to backorder	Retainer Nut 5/16"	£1.68 £1.40
34	JDGC00309 Available to backorder	Lock Clamp-On Nut M6	£1.68 £1.40
