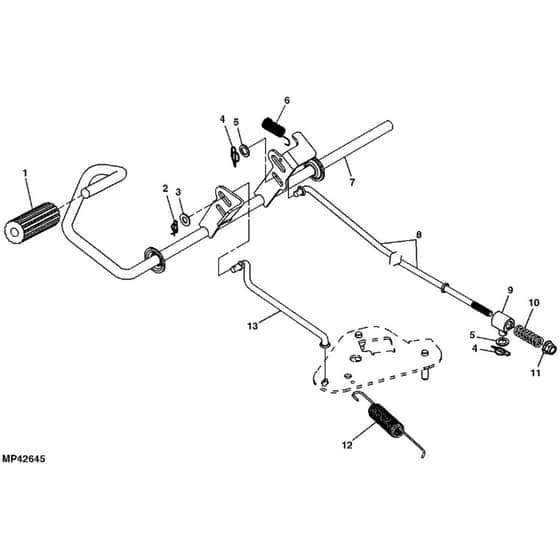

John Deere X130R - PC10316 - Brake Pedal - ST247252

John Deere X130R - PC10316 - Brake Pedal - ST247252

Description

John Deere X130R

PC Number - PC10316

Brake Pedal And Linkage - ST247252

Ref.		Img.	Part No.	Details
	2		JDGX21211 Available to backorder	Cotter Pin		£1.50 £1.25
	3		JD24H1305 Available to backorder	24H1305 Round Hole Washer		£0.76 £0.63
	4		JDGX21530 Available to backorder	Spring Pin		£0.68 £0.57
	5		JD24M7044 In stock	24M7044 Round Hole Washer		£0.66 £0.55
	6		JDGX21977 Available to backorder	Extension Spring		£3.64 £3.03
	9		JDGX22027 Available to backorder	Swivel		£5.44 £4.53
	11		JD14M7400 In stock	14M7400 Hexagonal Flange Lock Nut M10		£2.36 £1.97
	12		JDGX23403 Available to backorder	Spring		£19.64 £16.37

Description

John Deere X130R

PC Number - PC10316

Brake Pedal And Linkage - ST247252
