John Deere X120 - PC9637 - Mower Drive - ST245031

Name: John Deere X120 - PC9637 - Mower Drive - ST245031
SKU: X120_PC9637_ST245031-group
Price: 0.59 GBP
Availability: InStock

Part No. X120_PC9637_ST245031-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

John Deere X120 - PC9637 - Mower Drive - ST245031

Description

John Deere X120

PC Number - PC9637

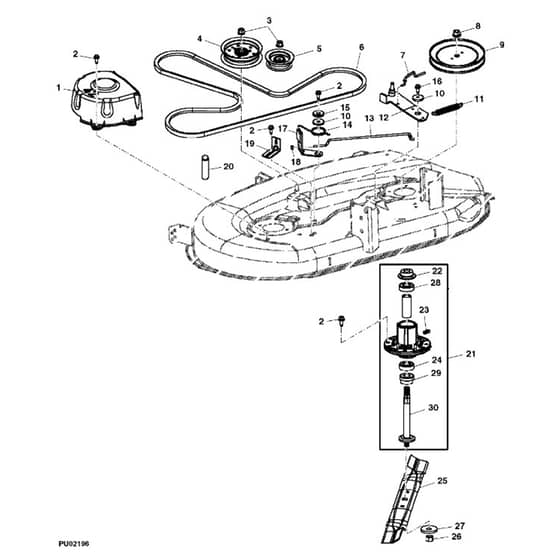

Mower Drive Belt, Sheaves, Spindles And Blades - ST245031

	Part No.	Details
1	JDGY21084 Available to backorder	Shield	£24.46 £20.38
1	JDGY21773 Available to backorder	Spindle Shield 42 inch Right Side	£22.69 £18.91
1	JDGY20426 Available to backorder	Shield	£18.53 £15.44
2	JDGX22456 In stock	Screw M8 x 20	£1.57 £1.31
3	JD14M7400 In stock	14M7400 Hexagonal Flange Lock Nut M10	£2.36 £1.97
4	JDAUC17621 Available to backorder	Flat Idler Sheave	£52.74 £43.95
5	JDAUC23277 In stock	Flat Idler Drive Sheave	£32.84 £27.37
6	JDUC32283 In stock	V-Belt Effective Length 2635 mm 103.7 inch	£72.38 £60.32
7	JDGX25342 Available to backorder	Brake Deck Rod Right Side	£4.44 £3.70
8	JDGX20513 Available to backorder	Hexagonal Lock Nut 9/16"	£5.89 £4.91
9	JDUC23728 Available to backorder	Mower Drive Sheave	£41.08 £34.23
10	JDGX23240 Available to backorder	Pivot Bushing	£1.66 £1.38
11	JDGX10120 Available to backorder	Extension Spring	£7.46 £6.22
12	JDGY20059 Available to backorder	Mower Deck Idler Arm 42 inch	£48.89 £40.74
13	JDGX23000 Available to backorder	Brake Rod Left Side	£14.47 £12.06
14	JDGX20494 Available to backorder	Torsion Spring	£9.72 £8.10
15	JDGX20515 Available to backorder	Round Flanged Retainer	£1.00 £0.83
16	JD37M7084 Available to backorder	37M7084 Hexagonal Flanged Head Self-Tapping Screw M8 x 25	£1.80 £1.50
17	JDGY21943 Available to backorder	Mower Deck Brake Pad	£44.95 £37.46
18	JD14M7165 Available to backorder	14M7165 Hexagonal Lock Nut M6	£0.71 £0.59
20	JDGX20455 Available to backorder	Belt Guide Rod	£13.79 £11.49
21	JDAUC15811 Available to backorder	Mower Deck Drive Spindle	£115.20 £96.00
22	JDGX21927 Available to backorder	Sheave Spacer	£6.17 £5.14
23	JDJD7849 Available to backorder	Shank Drive Lubrication Fitting	£1.25 £1.04
24	JDGX21510 Available to backorder	Single Row Cylindrical Ball Bearing	£25.46 £21.22
25	JDGY20850 In stock	Mower Blade Kit 42 inch	£71.88 £59.90
25	JDUC21583 In stock	Mower Deck Blade Cut Length 134 mm 5.2 inch	£42.92 £35.77
25	JDAM141034 Available to backorder	High Lift Bagging Mower Blade Kit 42 Inch	£111.24 £92.70
26	JDGX21694 In stock	Blade Mounting Lock Nut 5/8"	£5.80 £4.83
27	JDM149625 In stock	Concave Washer	£6.34 £5.28
27	JDM147138 In stock	Concave Washer	£16.66 £13.88
28	JDGX20818 Available to backorder	Single Row Cylindrical Ball Bearing	£12.79 £10.66
29	JDGX21695 Available to backorder	Spacer	£10.66 £8.88
30	JDGX22975 Available to backorder	Shaft	£80.04 £66.70
