John Deere X115R - PC12386 - Mower Deck - ST800047

Name: John Deere X115R - PC12386 - Mower Deck - ST800047
SKU: X115R_PC12386_ST800047-group
Price: 0.23 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

John Deere X115R - PC12386 - Mower Deck - ST800047

Description

John Deere X115R

PC Number - PC12386

Mower Deck, 36 inch - ST800047

Be the first to review this product

0 product questions

	Part No.	Details
1	JD14M7396 Available to backorder	14M7396 Hexagonal Flange Self-Lock Nut M8	£0.46 £0.38
2	JD14M7400 Available to backorder	14M7465 Hexagonal Lock Nut M10	£2.20 £1.83
3	JD19M7867 Available to backorder	19M7867 Hexagonal Head Flanged Screw M8 x 25	£1.60 £1.33
4	JD24M7044 Available to backorder	24M7044 Round Hole Washer	£0.64 £0.53
5	JD37M7458 Available to backorder	37M7458 Hexagonal Flanged Head Self-Tapping Screw M6 x 12	£1.19 £0.99
6	JDAM118447 In stock	Sheave Idler	£52.20 £43.50
8	JDGX10120 Available to backorder	Extension Spring	£7.08 £5.90
9	JD24M7088 Available to backorder	Round Hole Washer	£0.28 £0.23
11	JDGX20513 Available to backorder	Hexagonal Lock Nut 9/16"	£5.44 £4.53
12	JDGX21694 In stock	Blade Mounting Lock Nut 5/8"	£5.15 £4.29
13	JDGX22426 In stock	Deck Wash Water Port Plate	£7.08 £5.90
14	JDGX22456 Available to backorder	Screw M8 x 20	£1.40 £1.17
15	JDGX23240 Available to backorder	Pivot Bushing	£1.60 £1.33

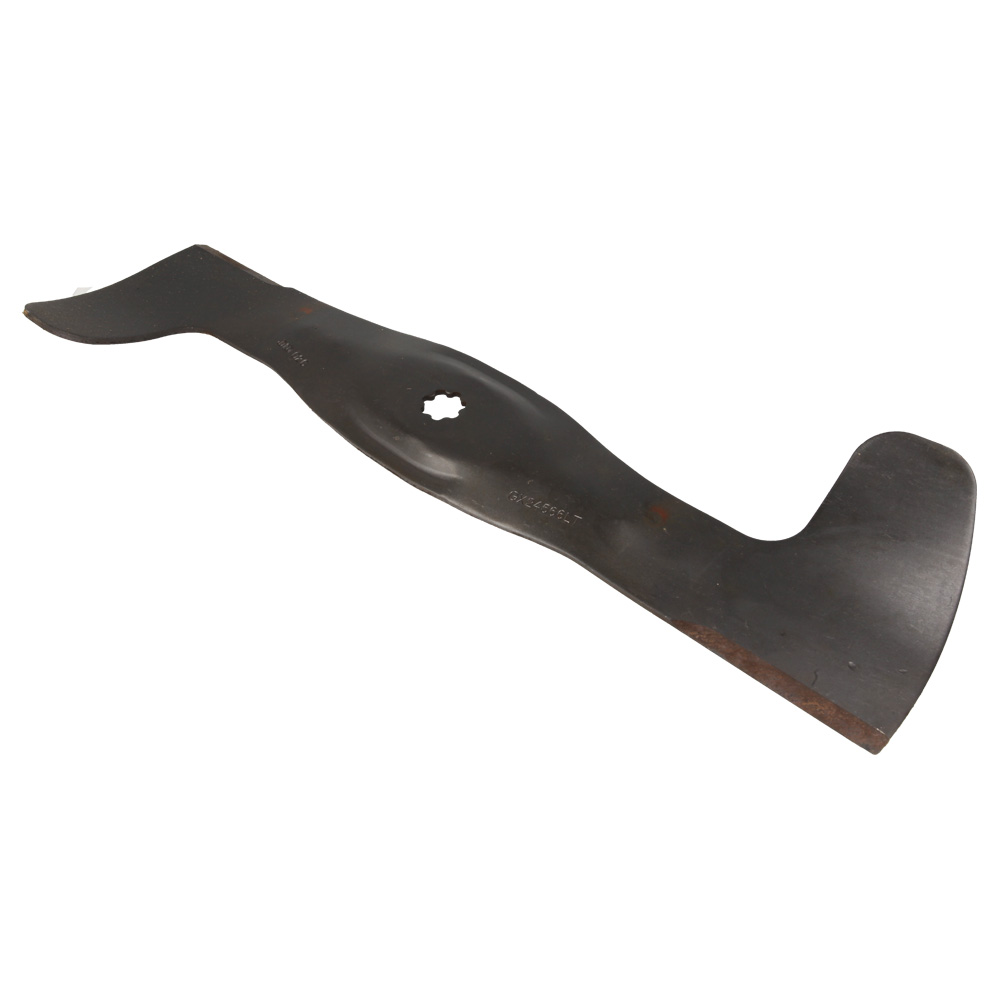

16	JDGX24566 In stock	Left Side Mower Deck Blade 36 inch	£59.16 £49.30

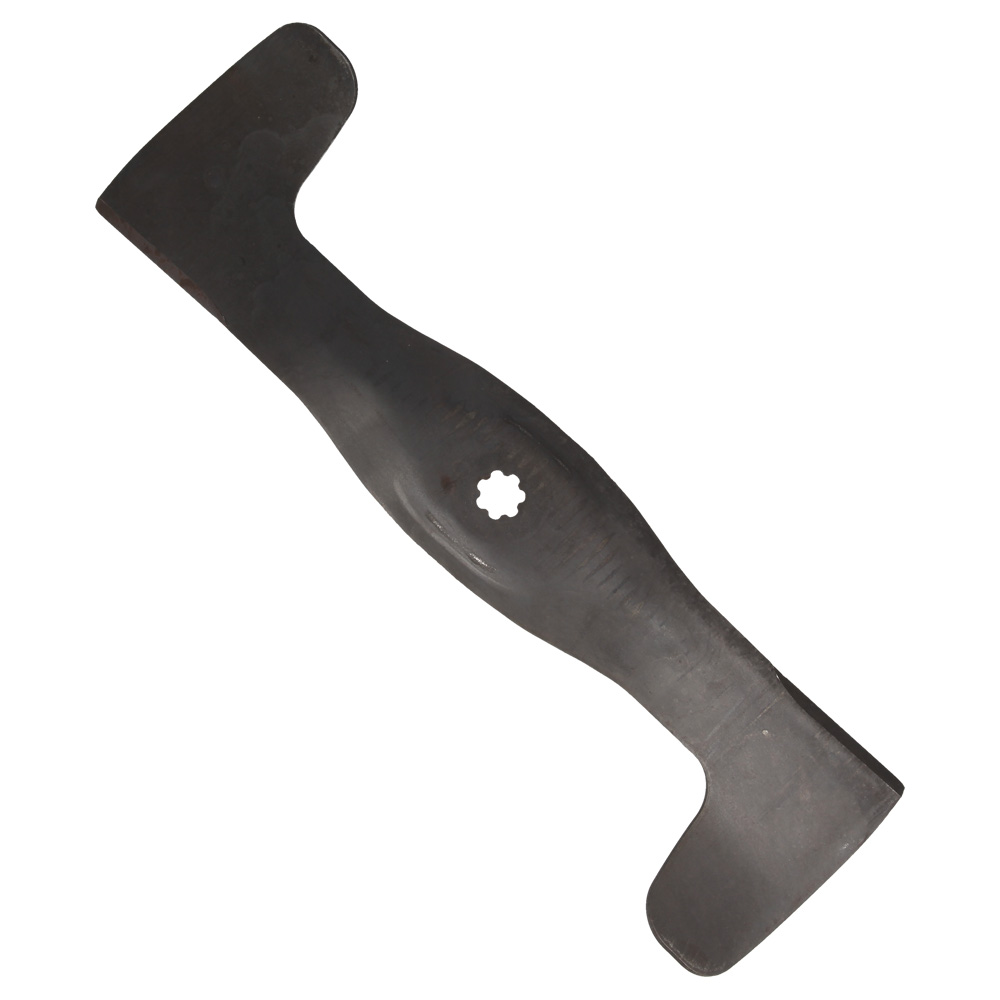

17	JDGX24567 In stock	Right Side Mower Deck Blade 36 inch	£56.10 £46.75

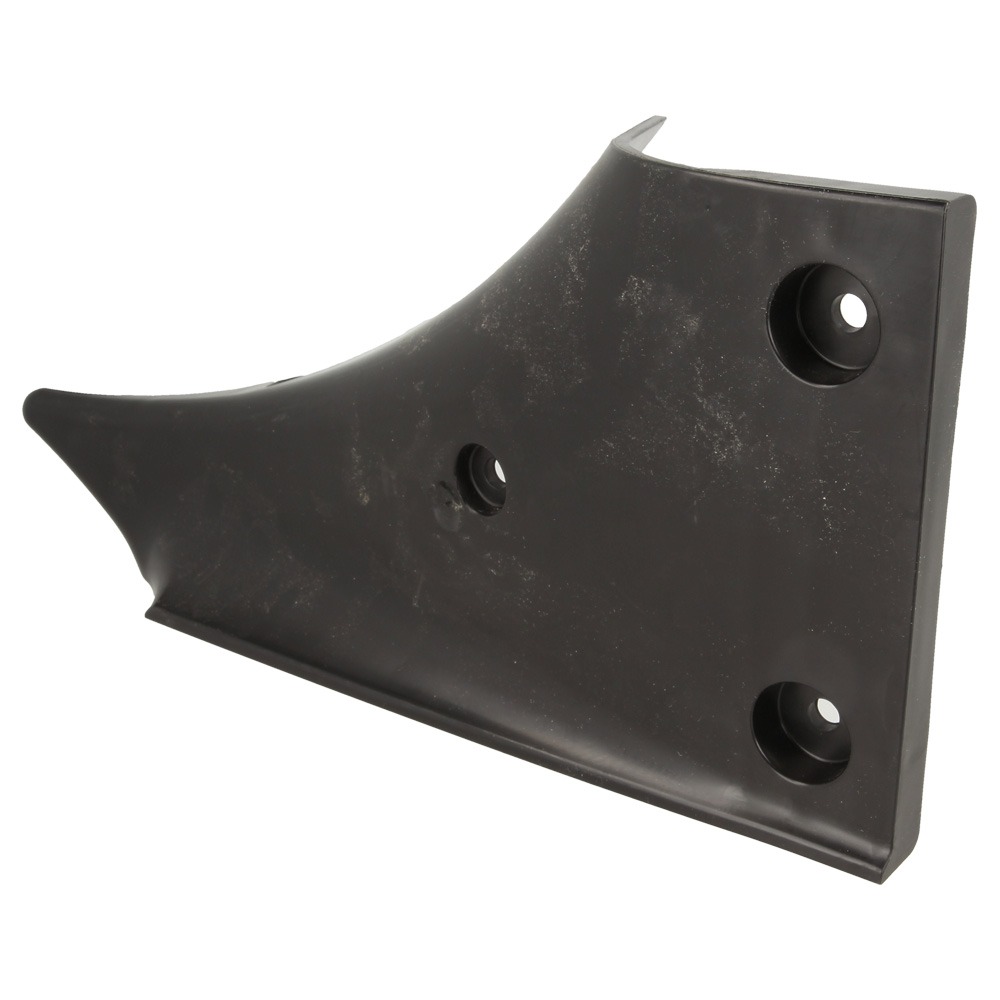

18	JDGX24914 Available to backorder	Mower Drive Belt Deflector	£32.39 £26.99
19	JDGX25193 Available to backorder	Extension Spring	£9.62 £8.02

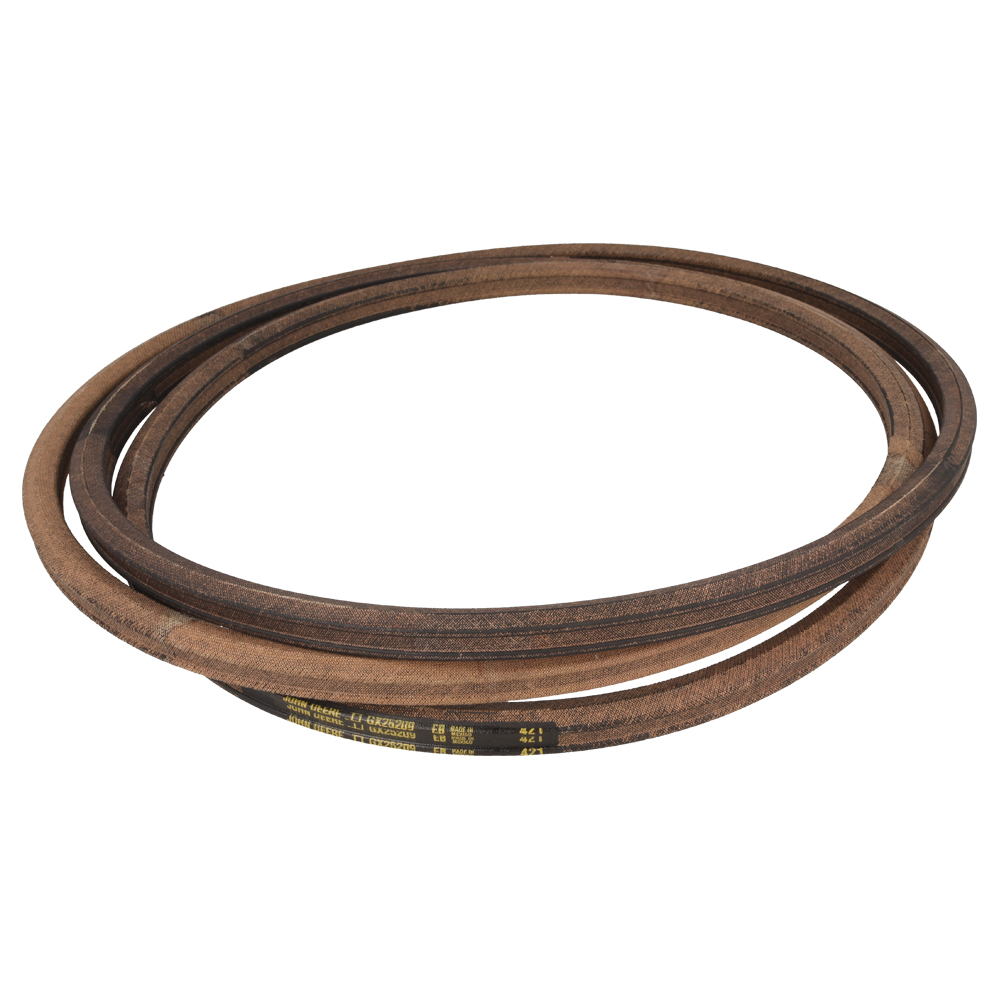

20	JDGX25209 In stock	HBB Section Mower Drive V-Belt	£188.16 £156.80

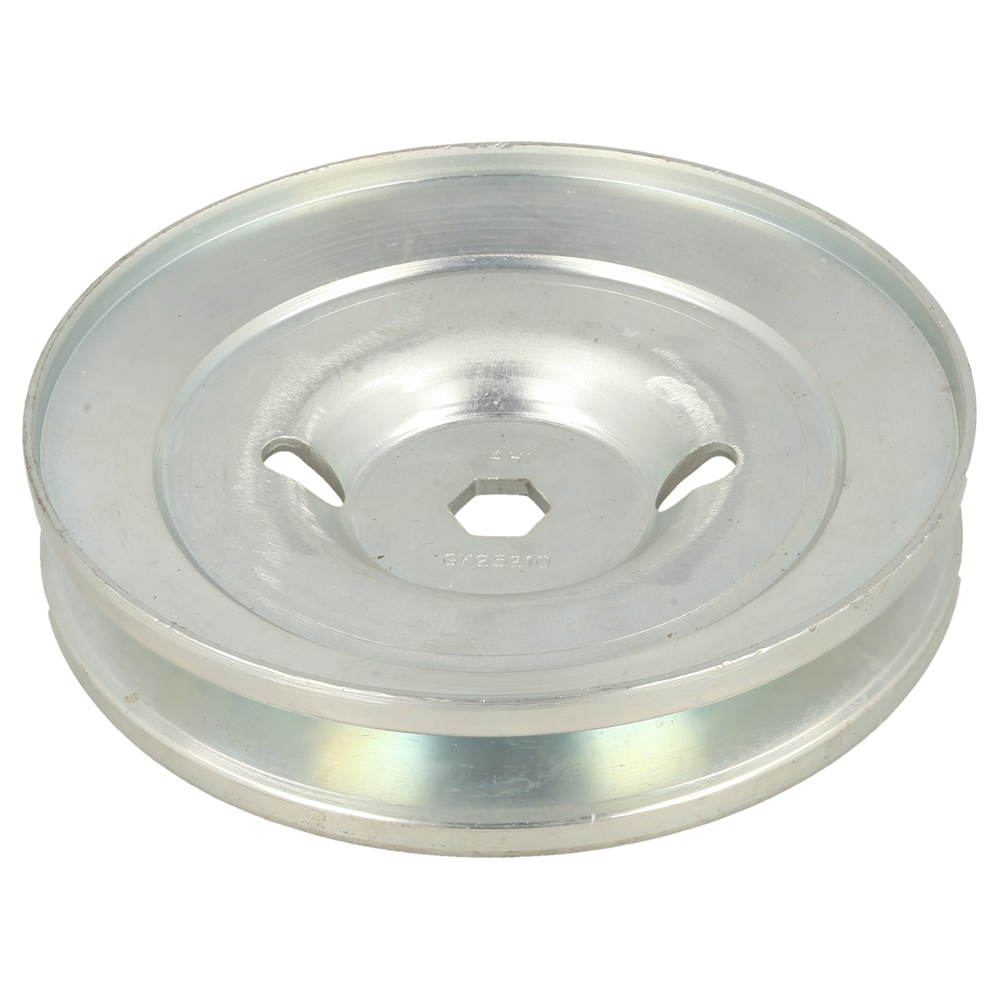

21	JDGX25210 Available to backorder	Mower Deck Pulley	£172.46 £143.72
22	JDGY22272 Available to backorder	Extension Spring	£15.74 £13.12
23	JDAUC15811 Available to backorder	Mower Deck Drive Spindle	£106.92 £89.10
24	JDGY21908 Available to backorder	Brake Blade Left Side	£60.08 £50.07
25	JDGY21909 Available to backorder	Arm	£108.19 £90.16

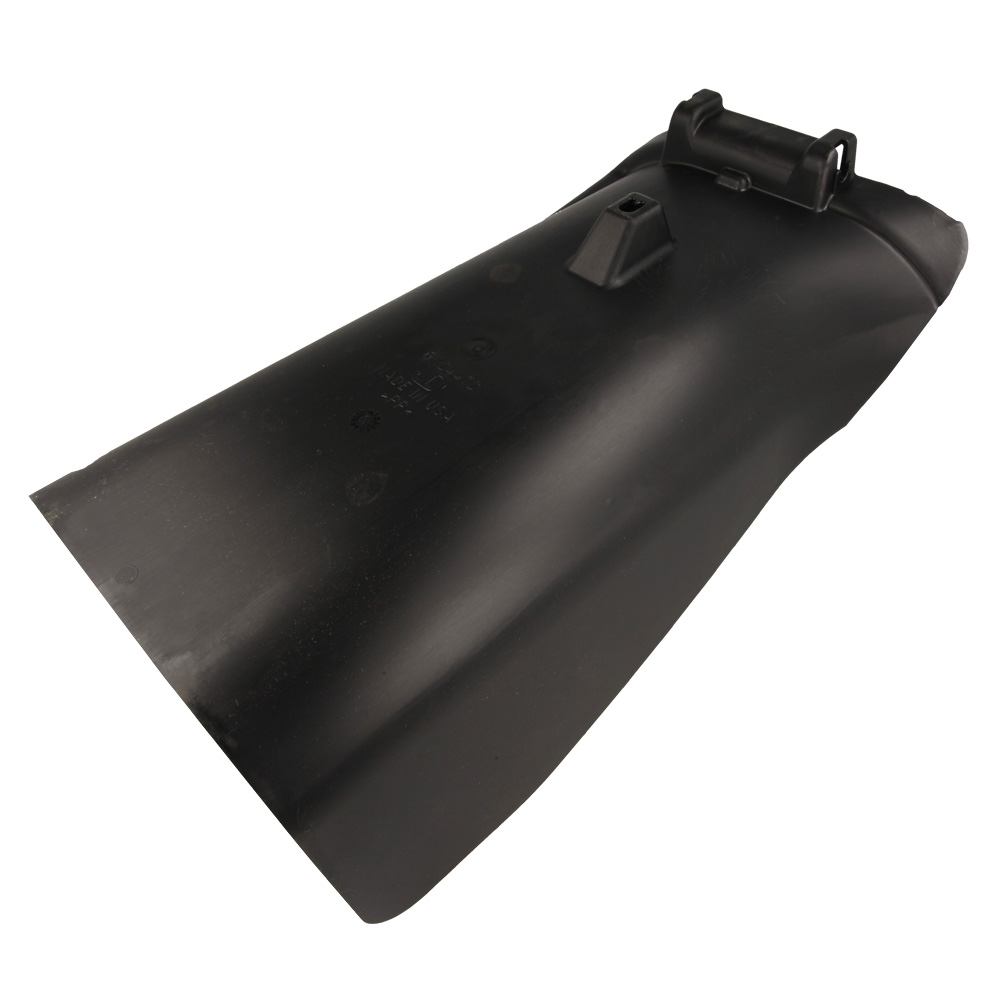

26	JDGX24472 Available to backorder	Chute	£37.36 £31.13
27	JDM144705 Available to backorder	Spring Locking Pin	£1.21 £1.01
28	JDM149625 In stock	Concave Washer	£5.83 £4.86
29	JDM153513 In stock	Hexagonal Head Flanged Screw M8 x 28	£2.88 £2.40
30	JDGX25573 Available to backorder	Guide	£25.87 £21.56
32	JDJD8535 Available to backorder	Single Row Cylindrical Ball Bearing	£16.80 £14.00
33	JDGX22975 Available to backorder	Shaft	£82.80 £69.00
34	JDGX26402 Available to backorder	Mower Deck Lift Linkage Rod [34B]	£43.28 £36.07

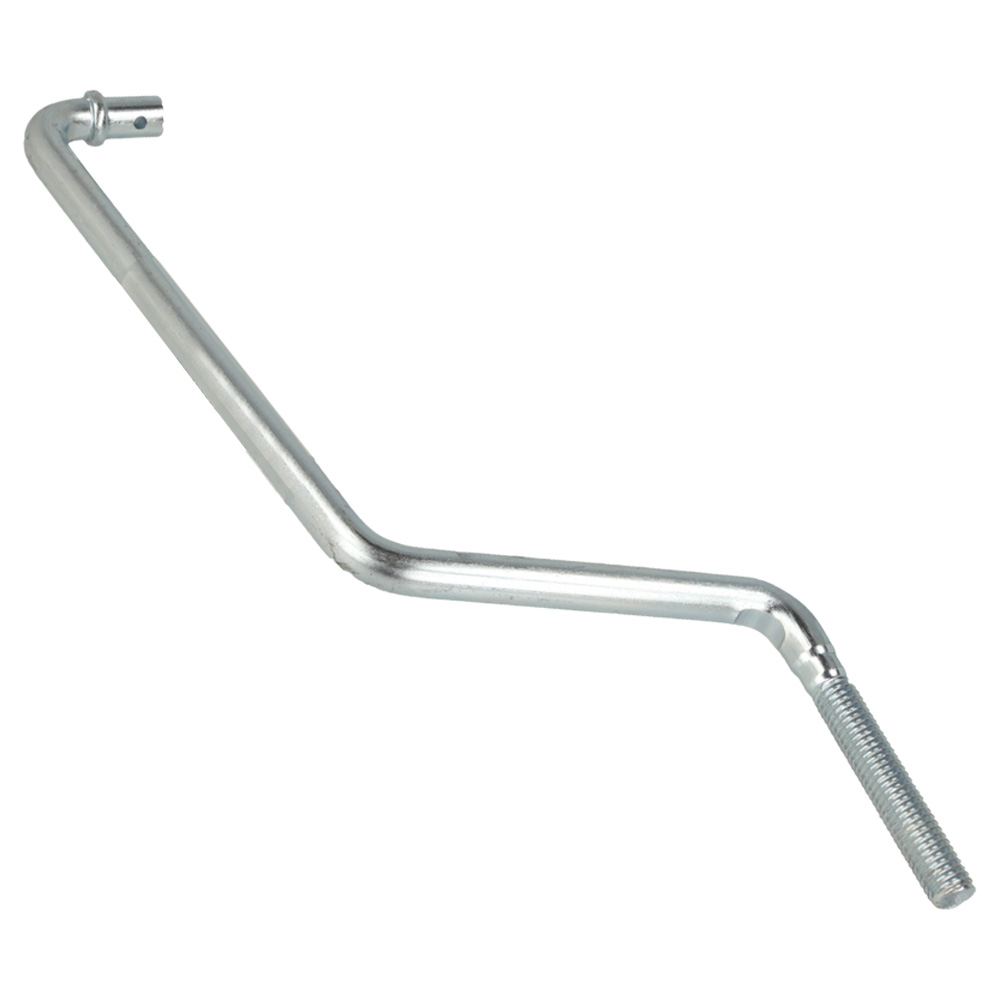

34	JDGX23098 Available to backorder	Front Draft Arm [34A]	£30.36 £25.30
35	JDM112982 Available to backorder	Ball	£1.40 £1.17
36	JDH135891 Available to backorder	Hexagonal Lock Nut M10	£2.48 £2.07
38	JDGX20455 Available to backorder	Belt Guide Rod	£13.79 £11.49
39	JDGX23397 Available to backorder	Label	£12.43 £10.36
43	JDM84309 Available to backorder	Retainer Nut 5/16"	£1.68 £1.40
44	JD24M7095 Available to backorder	24M7095 Round Hole Washer	£0.38 £0.32
45	JDGC00309 Available to backorder	Lock Clamp-On Nut M6	£1.68 £1.40
46	JD19M7863 Available to backorder	19M7863 Hexagonal Head Flanged Screw M6 x 25	£1.22 £1.02
47	JDM112711 Available to backorder	Spring Locking Pin	£0.34 £0.28
