John Deere X110 - PC9636 - Mower Drive - ST245031

Name: John Deere X110 - PC9636 - Mower Drive - ST245031
SKU: X110_PC9636_ST245031-group
Price: 0.59 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

John Deere X110 - PC9636 - Mower Drive - ST245031

Description

John Deere X110

PC Number - PC9636

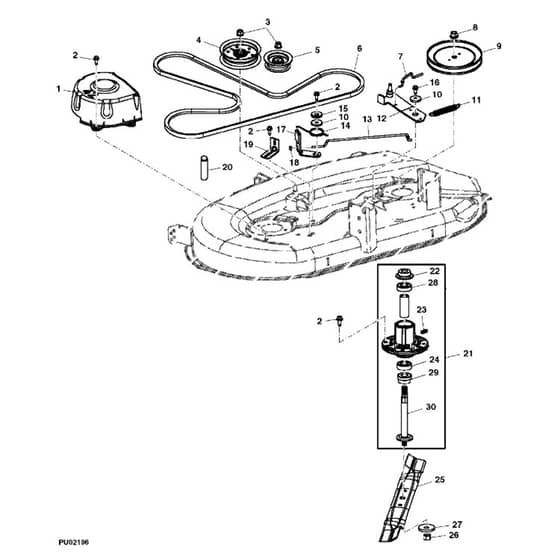

Mower Drive Belt, Sheaves, Spindles and Blades - ST245031

Be the first to review this product

0 product questions

	Part No.	Details
1	JDGY21773 Available to backorder	Spindle Shield 42 inch Right Side	£22.72 £18.93
1	JDGY21084 Available to backorder	Shield	£23.40 £19.50
1	JDGY20426 Available to backorder	Shield	£18.53 £15.44
2	JDGX22456 Available to backorder	Screw M8 x 20	£1.40 £1.17
2	JDGX21694 In stock	Blade Mounting Lock Nut 5/8"	£5.15 £4.29
3	JD14M7400 Available to backorder	14M7400 Hexagonal Flange Lock Nut M10	£2.20 £1.83
4	JDAUC17621 In stock	Flat Idler Sheave	£46.92 £39.10
5	JDAUC23277 In stock	Flat Idler Drive Sheave	£29.16 £24.30
6	JDUC32283 Available to backorder	V-Belt Effective Length 2635 mm 103.7 inch	£67.27 £56.06
7	JDGX25342 Available to backorder	Brake Deck Rod Right Side	£4.24 £3.53
8	JDGX20513 Available to backorder	Hexagonal Lock Nut 9/16"	£5.44 £4.53
9	JDUC23728 Available to backorder	Mower Drive Sheave	£37.44 £31.20
10	JDGX23240 Available to backorder	Pivot Bushing	£1.60 £1.33
11	JDGX10120 Available to backorder	Extension Spring	£7.08 £5.90
12	JDGY20059 Available to backorder	Mower Deck Idler Arm 42 inch	£46.56 £38.80
13	JDGX23000 Available to backorder	Brake Rod Left Side	£13.79 £11.49
14	JDGX20515 Available to backorder	Round Flanged Retainer	£0.96 £0.80
14	JDGX20494 Available to backorder	Torsion Spring	£9.72 £8.10
16	JD37M7084 Available to backorder	37M7084 Hexagonal Flanged Head Self-Tapping Screw M8 x 25	£1.70 £1.42
17	JDGY21943 Available to backorder	Mower Deck Brake Pad	£43.45 £36.21
18	JD14M7165 Available to backorder	14M7165 Hexagonal Lock Nut M6	£0.71 £0.59
20	JDGX20455 Available to backorder	Belt Guide Rod	£13.79 £11.49
21	JDAUC15811 Available to backorder	Mower Deck Drive Spindle	£106.92 £89.10
21	JDGX21927 Available to backorder	Sheave Spacer	£6.17 £5.14
23	JDJD7849 Available to backorder	Shank Drive Lubrication Fitting	£1.22 £1.02
24	JDGX21510 Available to backorder	Single Row Cylindrical Ball Bearing	£24.26 £20.22
25	JDAM141034 Available to backorder	High Lift Bagging Mower Blade Kit 42 Inch	£115.07 £95.89
25	JDGY20850 In stock	Mower Blade Kit 42 inch	£69.42 £57.85
25	JDUC21583 Available to backorder	Mower Deck Blade Cut Length 134 mm 5.2 inch	£36.35 £30.29
30	JDGX22975 Available to backorder	Shaft	£82.80 £69.00
