John Deere X105 - PC12385 - Mower Drive - ST821128

Name: John Deere X105 - PC12385 - Mower Drive - ST821128
SKU: X105_PC12385_ST821128-group
Price: 0.32 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

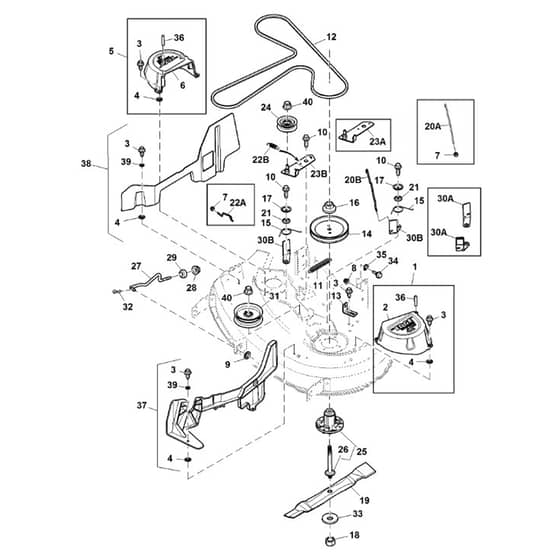

John Deere X105 - PC12385 - Mower Drive - ST821128

Description

John Deere X105

PC Number - PC12385

Mower Drive Belt, Blades, Spindles and Sheaves, 42 inch - ST821128

Be the first to review this product

0 product questions

	Part No.	Details
1	JDGX26333 Available to backorder	Rod	£11.35 £9.46
1	JDAUC17430 Available to backorder	Mower Deck Brake Pad	£29.70 £24.75
1	JDGX25342 Available to backorder	Brake Deck Rod Right Side	£4.24 £3.53
1	JDGX26251 Available to backorder	Extension Spring	£16.55 £13.79
1	JDGY21484 Available to backorder	Shield Left Side	£59.06 £49.22
1	JDGY20059 Available to backorder	Mower Deck Idler Arm 42 inch	£46.56 £38.80
1	JDAUC16256 Available to backorder	Mower Deck Idler Arm	£34.20 £28.50
1	JDGX23000 Available to backorder	Brake Rod Left Side	£13.79 £11.49
1	JDGY21943 Available to backorder	Mower Deck Brake Pad	£43.45 £36.21
2	JDGY21084 Available to backorder	Shield	£23.40 £19.50
3	JDGX22456 Available to backorder	Screw M8 x 20	£1.40 £1.17
4	JDM84309 Available to backorder	Retainer Nut 5/16"	£1.68 £1.40
5	JDGY21898 Available to backorder	Right Side Export Hardware Shield	£23.99 £19.99
6	JDGY21773 Available to backorder	Spindle Shield 42 inch Right Side	£22.72 £18.93
7	JD14M7165 Available to backorder	14M7165 Hexagonal Lock Nut M6	£0.71 £0.59
8	JD14M7396 Available to backorder	14M7396 Hexagonal Flange Self-Lock Nut M8	£0.46 £0.38
9	JD24M7044 Available to backorder	24M7044 Round Hole Washer	£0.64 £0.53
10	JD37M7461 Available to backorder	37M7461 Hexagonal Flanged Head Self-Tapping Screw M8 x 25	£2.00 £1.67
11	JDGX10120 Available to backorder	Extension Spring	£7.08 £5.90
12	JDUC32283 Available to backorder	Mower Drive Flat Belt Effective Length 2635 mm 103.7 inch	£67.27 £56.06
14	JDUC23728 Available to backorder	Mower Drive Sheave	£37.44 £31.20
15	JDGX20494 Available to backorder	Torsion Spring	£9.72 £8.10
16	JDGX20513 Available to backorder	Hexagonal Lock Nut 9/16"	£5.44 £4.53
17	JDGX20515 Available to backorder	Round Flanged Retainer	£0.96 £0.80
18	JDGX21694 In stock	Blade Mounting Lock Nut 5/8"	£5.15 £4.29
19	JDUC21583 Available to backorder	Mower Deck Blade Cut Length 134 mm 5.2 inch	£36.35 £30.29
21	JDGX23240 Available to backorder	Pivot Bushing	£1.60 £1.33
24	JDAUC23277 In stock	Flat Idler Drive Sheave	£29.16 £24.30
25	JDAUC15811 Available to backorder	Mower Deck Drive Spindle	£106.92 £89.10
27	JDGX20497 Available to backorder	Mower Deck Lift Linkage Arm Front Draft	£27.70 £23.08
28	JDH135891 Available to backorder	Hexagonal Lock Nut M10	£2.48 £2.07
29	JDM112982 Available to backorder	Ball	£1.40 £1.17
31	JDAUC17621 In stock	Flat Idler Sheave	£46.92 £39.10
32	JDM144705 Available to backorder	Spring Locking Pin	£1.21 £1.01
33	JDM149625 In stock	Concave Washer	£5.83 £4.86
34	JDM153513 In stock	Hexagonal Head Flanged Screw M8 x 28	£2.88 £2.40
35	JDM46935 Available to backorder	Curved Washer	£1.66 £1.38
36	JDGX20455 Available to backorder	Belt Guide Rod	£13.79 £11.49
37	JDGY22057 Available to backorder	Shield Kit	£31.02 £25.85
38	JDGY22058 Available to backorder	Right Side Deck Shield	£36.02 £30.02
39	JD24M7095 Available to backorder	24M7095 Round Hole Washer	£0.38 £0.32
40	JD14M7400 Available to backorder	14M7465 Hexagonal Lock Nut M10	£2.20 £1.83
