John Deere S100 - PC13988 - Mower Deck - ST1010429

Name: John Deere S100 - PC13988 - Mower Deck - ST1010429
SKU: S100_PC13988_ST1010429-group
Price: 0.34 GBP
Availability: InStock

Part No. S100_PC13988_ST1010429-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

John Deere S100 - PC13988 - Mower Deck - ST1010429

Description

John Deere S100

PC Number - PC13988

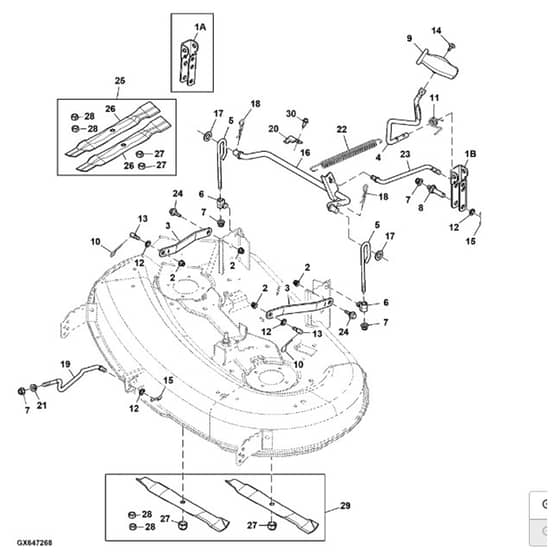

Mower Deck Lift Linkage, 42C Inch - ST1010429

	Part No.	Details
2	JD14M7396 Available to backorder	14M7396 Hexagonal Flange Self-Lock Nut M8	£0.41 £0.34
3	JDGX23233 Available to backorder	Mower Deck Suspension Arm	£71.64 £59.70
5	JDGX24864 Available to backorder	Mower Deck Lift Linkage Rod	£15.38 £12.82
6	JDGX21718 In stock	Mower Deck Trunnion	£4.86 £4.05
7	JD14M7400 In stock	14M7465 Hexagonal Lock Nut M10	£2.36 £1.97
10	JDGX26085 Available to backorder	Spring Locking Pin	£1.66 £1.38
12	JD24M7044 In stock	24M7044 Round Hole Washer	£0.66 £0.55
13	JDGX20237 Available to backorder	Stud M8 x 33	£6.50 £5.42
14	JDM163626 Available to backorder	Screw M6 x 20	£1.57 £1.31
15	JDM144705 Available to backorder	Spring Locking Pin	£1.28 £1.07
16	JDGY20788 Available to backorder	Mower Deck Lift Linkage Shaft	£65.76 £54.80
17	JD24M7053 Available to backorder	24M7053 Round Hole Washer	£1.37 £1.14
18	JD99M7080 Available to backorder	Hair Pin Clip	£7.46 £6.22
19	JDGX20497 In stock	Mower Deck Lift Linkage Arm Front Draft	£31.16 £25.97
20	JDGX22783 Available to backorder	Lift Shaft Bracket	£18.02 £15.02
21	JDM112982 In stock	Ball	£1.57 £1.31
24	JDM153513 Available to backorder	Hexagonal Head Flanged Screw M8 x 28	£3.14 £2.62
25	JDAM141031 Available to backorder	Mower Blade Kit 42 Inch 3 in 1	£114.24 £95.20
26	JDUC21583 In stock	Mower Deck Blade Cut Length 134 mm 5.2 inch	£42.92 £35.77
28	JDM159140 Available to backorder	Hexagonal Lock Nut 15.875 mm 5/8"	£4.30 £3.58
29	JDAM141033 Available to backorder	Mulching Mower Blade Kit 42x Inch	£114.24 £95.20
30	JDGX22456 In stock	Screw M8 x 20	£1.57 £1.31
