John Deere LX280 - PC9329 - Sheave - ST594260

Name: John Deere LX280 - PC9329 - Sheave - ST594260
SKU: LX280_PC9329_ST594260-group
Price: 0.34 GBP
Availability: InStock

Part No. LX280_PC9329_ST594260-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

John Deere LX280 - PC9329 - Sheave - ST594260

Description

John Deere LX280

PC Number - PC9329

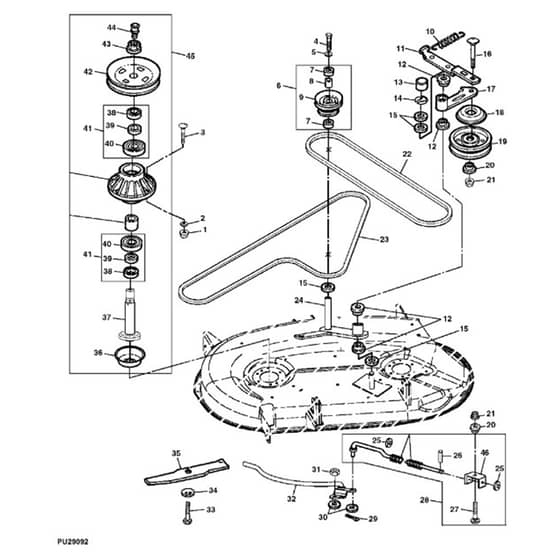

Sheave, Idlers, Spindle And Belt, 42C Inch - ST594260

	Part No.	Details
1	JD14M7396 Available to backorder	14M7396 Hexagonal Flange Self-Lock Nut M8	£0.41 £0.34
2	JD24H1887 Available to backorder	24H1887 Round Hole Washer	£1.48 £1.23
3	JD03M7094 Available to backorder	03M7094 Round Head Square Neck Bolt M8 x 30	£1.34 £1.12
4	JD19M7784 Available to backorder	19M7784 Hexagonal Head Screw M10 x 20	£2.28 £1.90
5	JD24M7101 Available to backorder	24M7101 Round Hole Washer	£2.05 £1.71

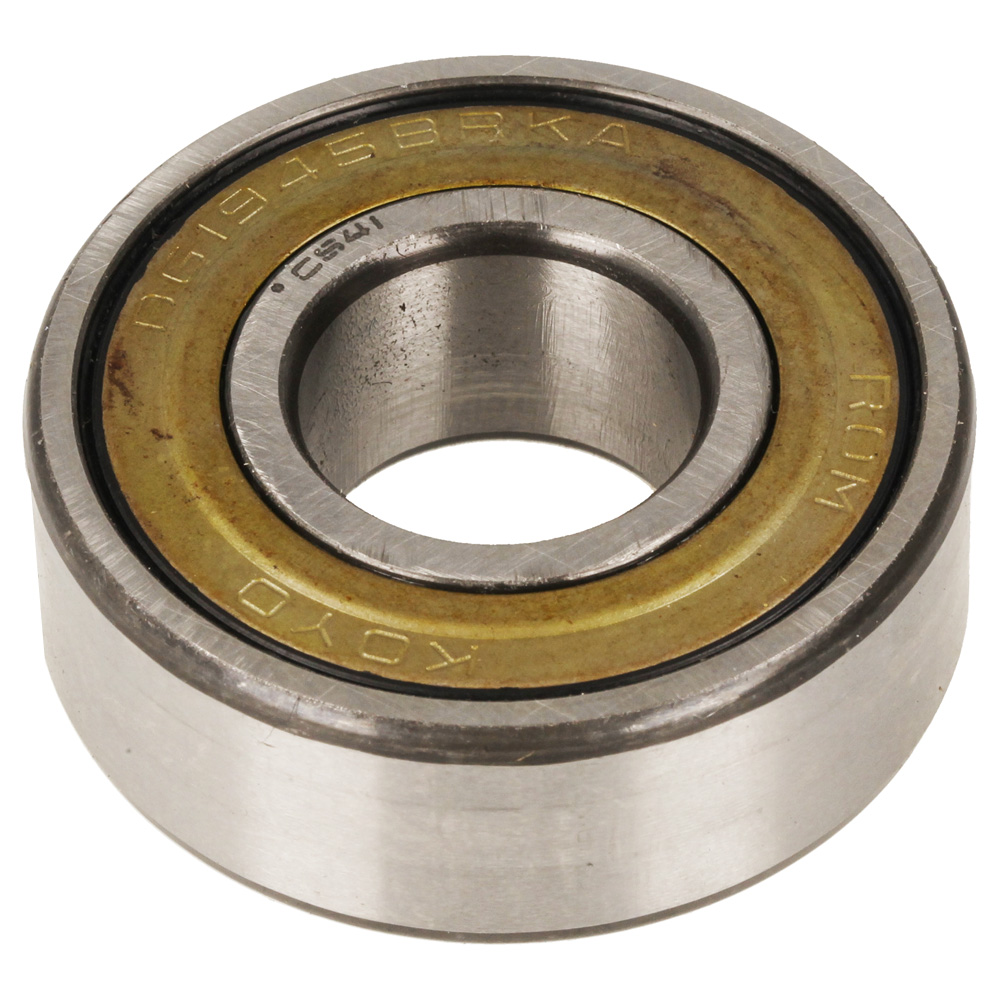

7	JDJD9296 Available to backorder	Single Row Cylindrical Ball Bearing	£22.62 £18.85
10	JDM47400 Available to backorder	Extension Spring	£21.02 £17.52
11	JDAM127430 Available to backorder	Arm	£48.05 £40.04

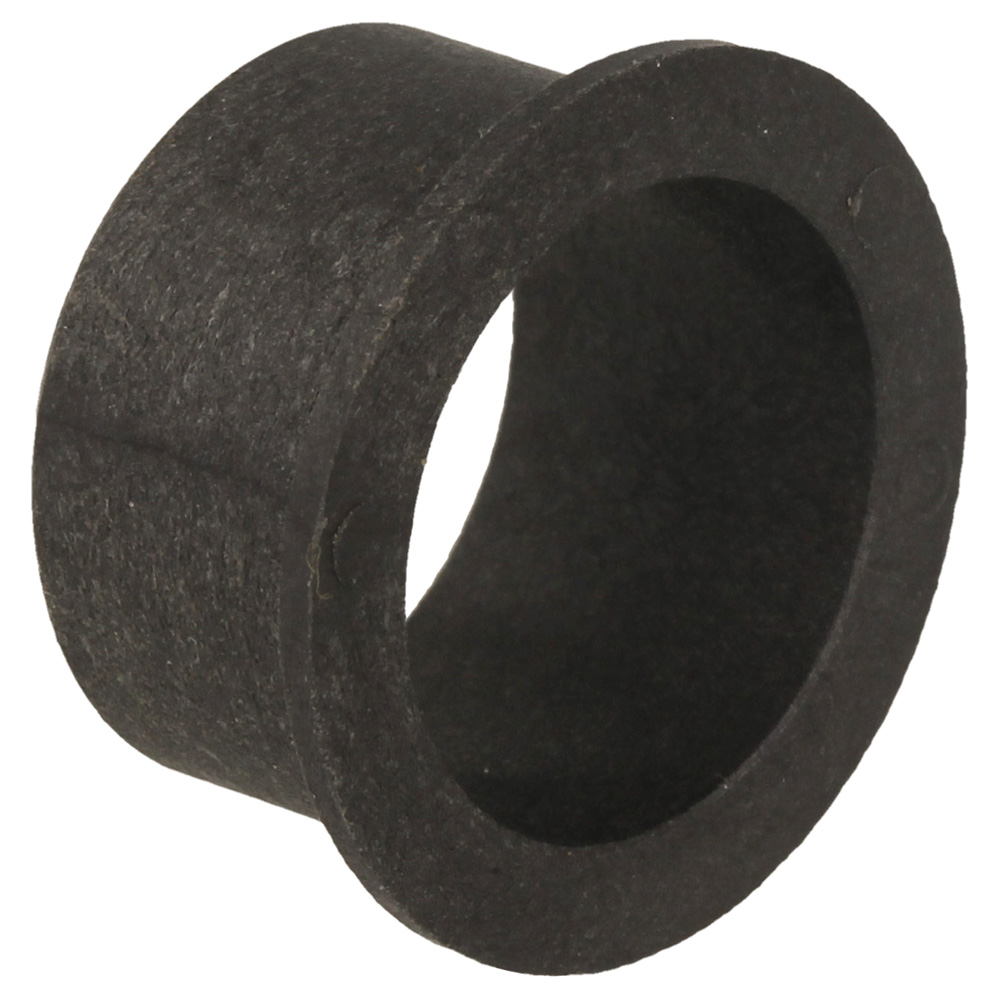

12	JDM111358 In stock	Flanged Bushing	£4.07 £3.39
13	JDM131119 Available to backorder	Idler Cap	£3.41 £2.84
14	JDT40189 Available to backorder	External Snap Ring	£3.83 £3.19
15	JD24H1391 Available to backorder	24H1391 Round Hole Washer	£1.21 £1.01
16	JD03M7216 Available to backorder	03M7216 Carriage Bolt M8 x 50	£2.48 £2.07
17	JDM143350 Available to backorder	Mower Deck Drive Arm	£39.80 £33.17
18	JDM165520 Available to backorder	Idler Shield	£4.34 £3.62

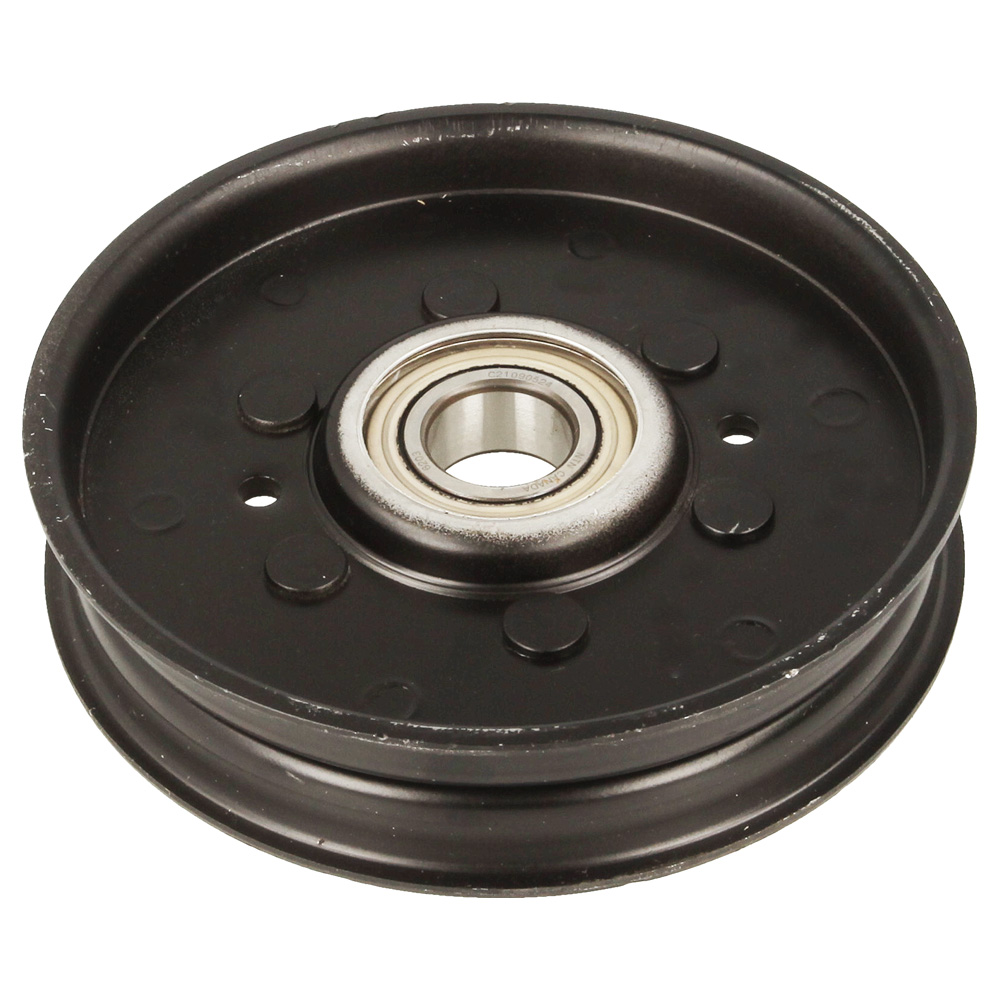

19	JDAM37249 In stock	Idler Pulley	£49.46 £41.22
20	JDM110316 Available to backorder	Shoulder Washer	£7.92 £6.60
21	JD14M7298 Available to backorder	14M7298 Hexagonal Flange Nut M8	£0.68 £0.57

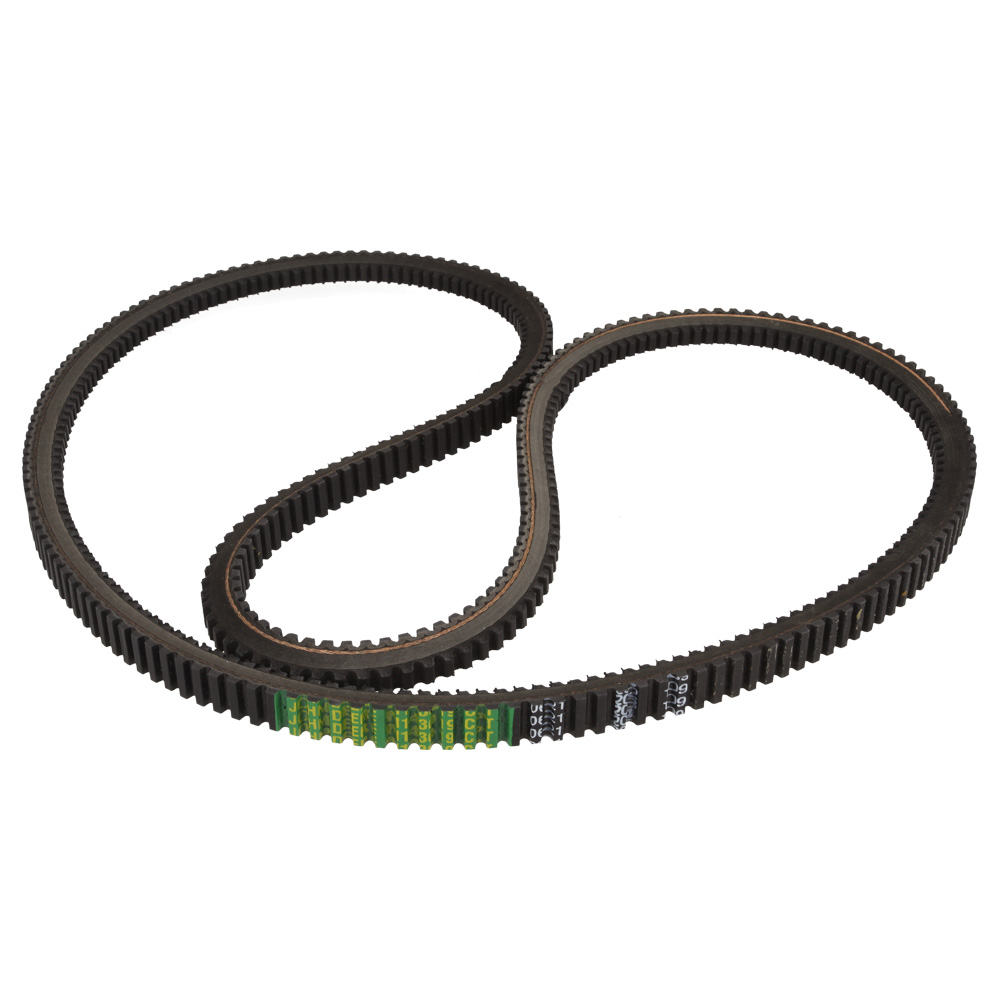

22	JDM143019 Available to backorder	Mower Deck Drive V-Belt Effective Length 1610 mm 63.4 inch	£113.04 £94.20
23	JDM43820 Available to backorder	Mower Drive V-Belt Effective Length 1869.4 mm 73.6 inch	£68.04 £56.70
25	JD24M7055 Available to backorder	Round Hole Washer	£0.50 £0.42
26	JD34M7130 Available to backorder	34M7130 Spring Pin	£1.12 £0.93
27	JD03M7185 Available to backorder	03M7185 Carriage Bolt M8 x 25	£1.19 £0.99
29	JD11M7081 Available to backorder	11M7081 Cotter Pin	£0.48 £0.40
31	JD14M7166 Available to backorder	14M7166 Hexagonal Lock Nut M8	£1.07 £0.89
33	JD19M7872 Available to backorder	19M7872 Hexagonal Head Screw M12 x 25	£2.82 £2.35
34	JDM147138 In stock	Concave Washer	£16.66 £13.88
35	JDM159047 Available to backorder	High Lift Mower Blade 42 inch Cut Length 95 mm 3.7 inch	£41.02 £34.18
35	JDM148613 Available to backorder	Mower Blade 42 inch Cut Length 100 mm 3.9 inch	£42.52 £35.43
36	JDM157142 Available to backorder	Lower Cutting Unit Deflector	£10.88 £9.07
38	JDET15755 In stock	Internal Oil Seal	£10.24 £8.53
39	JDM110008 Available to backorder	One End Expanded Inner Diameter Bushing	£6.76 £5.63
40	JDM110024 Available to backorder	Single Row Cylindrical Ball Bearing	£19.46 £16.22
43	JDM110013 Available to backorder	Hexagonal Flange Nut M18	£7.51 £6.26
44	JDJD7849 Available to backorder	Shank Drive Lubrication Fitting	£1.25 £1.04
46	JDM110335 Available to backorder	Clevis	£4.52 £3.77
