John Deere LX277 - PC2718

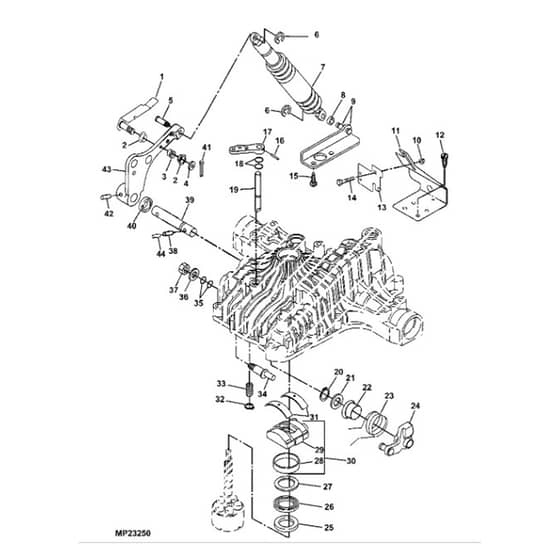

John Deere LX277 - PC2718 - Transaxle Control - ST580322

John Deere LX277 - PC2718 - Transaxle Control - ST580322

Part No. LX277_PC2718_ST580322-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

John Deere LX277 - PC2718 - Transaxle Control - ST580322

John Deere LX277 - PC2718 - Transaxle Control - ST580322

Description

John Deere LX277

PC Number - PC2718

Transaxle Control Shaft (Aws) - ST580322

Ref.		Img.	Part No.	Details
	3		JDM139939 Available to backorder	Torsion Spring		£8.59 £7.16
	4		JD24H1136 Available to backorder	24H1136 Washer		£0.48 £0.40
	10		JDE63524 Available to backorder	Hexagonal Lock Nut M6		£0.71 £0.59
	14		JD03M7251 Available to backorder	03M7251 Carriage Bolt M6 x 12		£0.94 £0.78
	15		JDR91159 Available to backorder	Tapping Screw M8 x 30		£1.30 £1.08
	16		JDM802463 Available to backorder	Spring Pin		£1.64 £1.37
	17		JDM808831 Available to backorder	Lever		£31.78 £26.48
	18		JDCH10571 Available to backorder	O-Ring		£1.12 £0.93
	20		JD40M7068 Available to backorder	40M7068 External Snap Ring		£0.48 £0.40
	31		JDM806539 Available to backorder	Thrust Bearing		£33.76 £28.13
	32		JDCH17950 Available to backorder	Snap Ring		£1.22 £1.02
	35		JDCH10569 Available to backorder	O-Ring		£2.54 £2.12
	36		JD24M7047 Available to backorder	Round Hole Washer		£0.98 £0.82
	37		JDCH13545 Available to backorder	Nut		£0.94 £0.78
	38		JDCH11501 Available to backorder	Slotted Spring Pin		£1.48 £1.23
	40		JDM806040 Available to backorder	Transaxle Seal		£18.41 £15.34
	41		JD11M7076 Available to backorder	11M7076 Cotter Pin		£3.23 £2.69
	42		JDCH17125 Available to backorder	Roll Pin		£1.30 £1.08

Description

John Deere LX277

PC Number - PC2718

Transaxle Control Shaft (Aws) - ST580322
