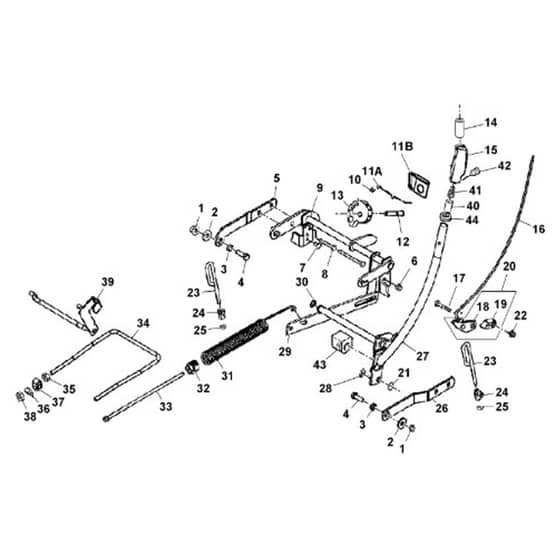

John Deere LX277 - PC2718 - Lift Lever - ST580344

Description

John Deere LX277

PC Number - PC2718

Lift Lever And Linkage - ST580344

	Part No.	Details
1	JD14M7401 Available to backorder	14M7401 Hexagonal Lock Nut M12	£2.94 £2.45
2	JDM135494 Available to backorder	Round Hole Washer	£4.07 £3.39
3	JDM139762 Available to backorder	Round Hole Washer	£2.96 £2.47
4	JD19M7744 Available to backorder	19M7744 Hexagonal Head Cap Screw M12 x 35	£2.03 £1.69
5	JDM153358 Available to backorder	Right Side Rear Draft Arm	£75.12 £62.60
6	JD14M7298 Available to backorder	14M7298 Hexagonal Flange Nut M8	£0.68 £0.57
7	JD03M7183 Available to backorder	03M7183 Carriage Bolt M8 x 16	£1.19 £0.99
8	JD19M8456 Available to backorder	19M8456 Hexagonal Head Cap Screw M8 x 100	£5.10 £4.25
8	JD19M7801 Available to backorder	19M7801 Hexagonal Head Flanged Screw M8 x 60	£4.01 £3.34
9	JDAM133474 Available to backorder	Rear Lift Arm	£281.64 £234.70
10	JD37M7458 Available to backorder	37M7458 Hexagonal Flanged Head Self-Tapping Screw M6 x 12	£1.18 £0.98
11	JDM125613 Available to backorder	Detent Spring [11B]	£10.46 £8.72
11	JDM124808 Available to backorder	Detent Depth Stop Clip [11A]	£14.29 £11.91
13	JDM146340 Available to backorder	Cam Depth Stop	£33.28 £27.73
16	JDM134826 Available to backorder	Rod	£20.64 £17.20
17	JD19M7160 Available to backorder	19M7160 Hexagonal Head Cap Screw M6 x 30	£1.02 £0.85
21	JDM43940 Available to backorder	External Snap Ring	£2.00 £1.67
22	JD14M7397 In stock	14M7397 Hexagonal Flange Lock Nut M6	£1.01 £0.84
23	JDM135396 Available to backorder	Adjustable Lift Rod	£57.47 £47.89
24	JDM131725 Available to backorder	Snow Blower Lift Lever Link	£9.83 £8.19
25	JDM85516 Available to backorder	Hexagonal Lock Nut M10	£2.09 £1.74
26	JDM153347 Available to backorder	Left Side Rear Draft Arm	£37.92 £31.60
28	JD24H1806 Available to backorder	24H1806 Round Hole Washer	£0.36 £0.30
28	JD24H1341 Available to backorder	24H1341 Round Hole Washer	£0.68 £0.57
30	JD40M7080 Available to backorder	External Snap Ring	£0.41 £0.34
34	JDM147445 Available to backorder	U-Bolt M12 x 289.65	£49.18 £40.98
35	JD14M7275 Available to backorder	14M7275 Hexagonal Nut M12	£1.50 £1.25
36	JDM110875 Available to backorder	Clevis Spacer	£7.39 £6.16
37	JDM113014 Available to backorder	Front Clevis	£5.62 £4.68
38	JDM85540 Available to backorder	Hexagonal Lock Nut M12	£2.32 £1.93
39	JDAM119811 Available to backorder	Front Mount Pivot	£126.36 £105.30
42	JD22H926 Available to backorder	22H926 Set Screw 1/4" x 1/2"	£3.32 £2.77
44	JDM138105 Available to backorder	Round Hole Washer	£0.76 £0.63
44	JDAM136645 Available to backorder	Implement Lift Extension Spring	£63.72 £53.10
