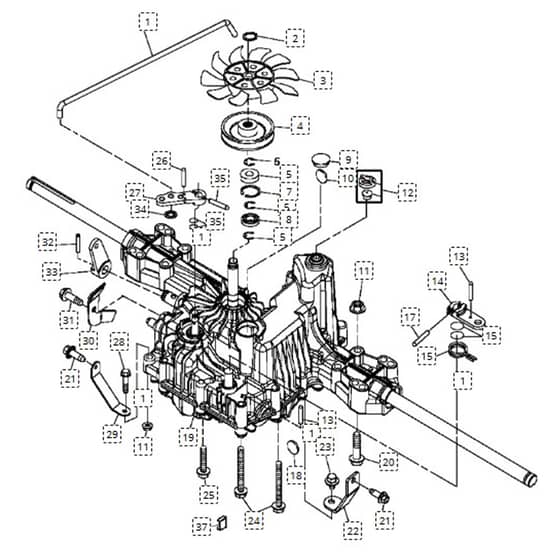

John Deere LA115 - PC9741 - Transaxle - ST163889

Description

John Deere LA115

PC Number - PC9741

Transaxle - ST163889

Be the first to review this product

0 product questions

	Part No.	Details
2	JDM809166 Available to backorder	Snap Ring	£2.28 £1.90
3	JDMIA880240 Available to backorder	Fan	£57.44 £47.87
4	JDMIU800221 Available to backorder	Transmission Pulley	£66.46 £55.38
5	JDF2863R Available to backorder	Snap Ring	£2.32 £1.93
6	JDMIU804070 Available to backorder	Seal	£19.80 £16.50
7	JDCH13493 Available to backorder	Snap Ring	£2.18 £1.82
9	JDMIU14382 Available to backorder	Cap	£19.60 £16.33
10	JDM119842 Available to backorder	Transaxle Center Case Magnet	£9.35 £7.79
11	JD14M7396 Available to backorder	14M7396 Hexagonal Flange Self-Lock Nut M8	£0.46 £0.38
12	JDMIU805202 Available to backorder	Vent	£11.70 £9.75
12	JDM811683 Available to backorder	Pressure Relief Valve	£31.58 £26.32
13	JD34M7094 Available to backorder	Spring Pin	£0.55 £0.46
15	JDCH10568 Available to backorder	Packing	£1.62 £1.35
17	JDCH13500 Available to backorder	Spring Pin	£0.86 £0.72
19	JDMIA10910 Available to backorder	T40J Hydrostatic Transaxle with Filter	£1,484.40 £1,237.00
20	JD19M7801 Available to backorder	19M7801 Hexagonal Head Flanged Screw M8 x 60	£4.01 £3.34
21	JDGX22456 Available to backorder	Screw M8 x 20	£1.40 £1.17
23	JD37M7463 Available to backorder	Screw	£1.43 £1.19
25	JDR91159 Available to backorder	Tapping Screw M8 x 30	£1.30 £1.08
26	JDCH13499 Available to backorder	Spring Pin	£0.91 £0.76
27	JDM808831 Available to backorder	Lever	£31.78 £26.48
28	JD19M7799 Available to backorder	19M7799 Hexagonal Head Flanged Screw M8 x 45	£2.75 £2.29
31	JD19M7783 Available to backorder	19M7783 Hexagonal Head Flange Screw M10 x 16	£2.14 £1.78
32	JDCH17125 Available to backorder	Roll Pin	£1.30 £1.08
33	JDM810140 Available to backorder	Control Lever Quick Lock Pin	£25.10 £20.92
34	JDGX10434 Available to backorder	Push Nut M6	£1.32 £1.10
35	JDCH10571 Available to backorder	O-Ring	£1.12 £0.93
36	JDM802463 Available to backorder	Spring Pin	£1.64 £1.37
37	JDM809658 Available to backorder	Brake Shoe	£5.15 £4.29
38	JDMIU804267 Available to backorder	Oil Seal	£29.54 £24.62
