John Deere LA115 - PC9741 - Mower Deck (2/2) - ST163914

Description

John Deere LA115

PC Number - PC9741

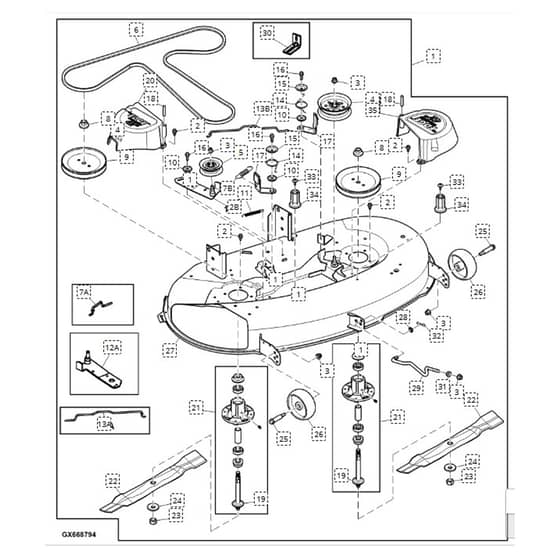

Mower Deck, 42C Inch, (2/2) - ST163914

Be the first to review this product

0 product questions

	Part No.	Details
1	JDBUC11055 Available to backorder	Mower Deck 42 inch	£679.20 £566.00
2	JDGX22456 Available to backorder	Screw M8 x 20	£1.40 £1.17
3	JD14M7400 Available to backorder	14M7465 Hexagonal Lock Nut M10	£2.20 £1.83
4	JDAUC17621 In stock	Flat Idler Sheave	£46.92 £39.10
6	JDUC32283 Available to backorder	Mower Drive Flat Belt Effective Length 2635 mm 103.7 inch	£67.27 £56.06
7	JDGX25342 Available to backorder	Brake Deck Rod Right Side [7A]	£4.24 £3.53
7	JDGX26251 Available to backorder	Extension Spring [7B]	£16.55 £13.79
8	JDGX20513 Available to backorder	Hexagonal Lock Nut 9/16"	£5.44 £4.53
9	JDUC23728 Available to backorder	Mower Drive Sheave	£37.44 £31.20
10	JDGX23240 Available to backorder	Pivot Bushing	£1.60 £1.33
11	JDGX10120 Available to backorder	Extension Spring	£7.08 £5.90
12	JDGY20059 Available to backorder	Mower Deck Idler Arm 42 inch [12A]	£46.56 £38.80
12	JDAUC16256 Available to backorder	Mower Deck Idler Arm [12B]	£34.20 £28.50
13	JDGX23000 Available to backorder	Brake Rod Left Side [13A]	£13.79 £11.49
13	JDGX26333 Available to backorder	Rod [13B]	£11.35 £9.46
14	JDGX20494 Available to backorder	Torsion Spring	£9.72 £8.10
15	JDGX20515 Available to backorder	Round Flanged Retainer	£0.96 £0.80
16	JD37M7461 Available to backorder	37M7461 Hexagonal Flanged Head Self-Tapping Screw M8 x 25	£2.00 £1.67
17	JDGY21943 Available to backorder	Mower Deck Brake Pad	£43.45 £36.21
17	JDAUC17430 Available to backorder	Mower Deck Brake Pad	£29.70 £24.75
18	JDGX20455 Available to backorder	Belt Guide Rod	£13.79 £11.49
19	JDGX22975 Available to backorder	Shaft	£82.80 £69.00
20	JDGY21773 Available to backorder	Spindle Shield 42 inch Right Side	£22.72 £18.93
21	JDAUC15811 Available to backorder	Mower Deck Drive Spindle	£106.92 £89.10
22	JDUC21583 Available to backorder	Mower Deck Blade Cut Length 134 mm 5.2 inch	£36.35 £30.29
23	JDGX21694 In stock	Blade Mounting Lock Nut 5/8"	£5.15 £4.29
24	JDM149625 In stock	Concave Washer	£5.83 £4.86
25	JDGX21012 In stock	Hexagonal Flanged Head Self-Locking Screw M10 x 70	£6.14 £5.12
26	JDGX10168 In stock	Gauge Wheel	£19.34 £16.12
27	JDAUC16767 Available to backorder	Mower Deck 42 inch	£546.00 £455.00
28	JD24M7044 Available to backorder	24M7044 Round Hole Washer	£0.64 £0.53
29	JDGX20497 Available to backorder	Mower Deck Lift Linkage Arm Front Draft	£27.70 £23.08
31	JDM112982 Available to backorder	Ball	£1.40 £1.17
32	JDM144705 Available to backorder	Spring Locking Pin	£1.21 £1.01
33	JDM163626 Available to backorder	Screw M6 x 20	£1.50 £1.25
35	JDGY21084 Available to backorder	Shield	£23.40 £19.50
37	JD14M7165 Available to backorder	14M7165 Hexagonal Lock Nut M6	£0.71 £0.59
38	JDAM141034 Available to backorder	High Lift Bagging Mower Blade Kit 42 Inch	£115.07 £95.89
38	JDAM141031 Available to backorder	Mower Blade Kit 42 Inch 3 in 1	£118.16 £98.47
39	JD14M7367 In stock	14M7367 Hexagonal Lock Nut M12	£2.70 £2.25
40	JDM159140 Available to backorder	Hexagonal Lock Nut 15.875 mm 5/8"	£4.09 £3.41
