John Deere LA105 - PC9740 - Mower Deck - ST163912

Name: John Deere LA105 - PC9740 - Mower Deck - ST163912
SKU: LA105_PC9740_ST163912-group
Price: 0.34 GBP
Availability: InStock

Part No. LA105_PC9740_ST163912-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

John Deere LA105 - PC9740 - Mower Deck - ST163912

Description

John Deere LA105

PC Number - PC9740

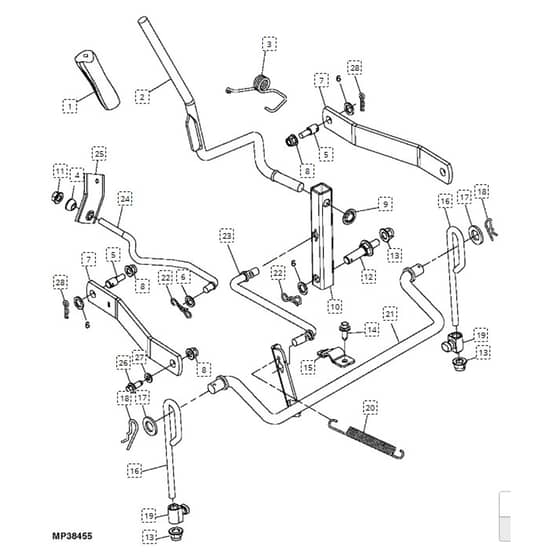

Mower Deck Lift Linkage - ST163912

	Part No.	Details
1	JDGX20281 Available to backorder	Handle Grip	£15.66 £13.05
2	JDGX22442 Available to backorder	Deck Lift Handle	£18.50 £15.42
3	JDGX20274 Available to backorder	Torsion Spring	£12.88 £10.73
4	JDM112982 In stock	Ball	£1.57 £1.31
5	JDGX20237 Available to backorder	Stud M8 x 33	£6.50 £5.42
6	JD24M7044 In stock	24M7044 Round Hole Washer	£0.66 £0.55
7	JDGX23233 Available to backorder	Mower Deck Suspension Arm	£71.64 £59.70
8	JD14M7396 Available to backorder	14M7396 Hexagonal Flange Self-Lock Nut M8	£0.41 £0.34
9	JDGX20190 Available to backorder	Push Nut 1/2"	£1.73 £1.44
11	JDH135891 Available to backorder	Hexagonal Lock Nut M10	£2.48 £2.07
12	JDGX20401 Available to backorder	Stud M10 x 67	£159.24 £132.70
13	JD14M7400 In stock	14M7400 Hexagonal Flange Lock Nut M10	£2.36 £1.97
14	JDGX22456 In stock	Screw M8 x 20	£1.57 £1.31
15	JDGX22783 Available to backorder	Lift Shaft Bracket	£18.02 £15.02
16	JDGX24864 Available to backorder	Mower Deck Lift Linkage Rod	£15.38 £12.82
17	JD24M7053 Available to backorder	24M7053 Round Hole Washer	£1.37 £1.14
18	JD99M7080 Available to backorder	Hair Pin Clip	£7.46 £6.22
19	JDGX21718 In stock	Mower Deck Trunnion	£4.86 £4.05
20	JDGX20146 Available to backorder	Extension Spring	£9.62 £8.02
21	JDGY20608 Available to backorder	Universal Driveshaft	£61.10 £50.92
22	JDM144705 Available to backorder	Spring Locking Pin	£1.28 £1.07
23	JDGX22784 Available to backorder	Connecting Plated Link	£27.29 £22.74
24	JDGX20497 In stock	Mower Deck Lift Linkage Arm Front Draft	£31.16 £25.97
26	JDM153513 Available to backorder	Hexagonal Head Flanged Screw M8 x 28	£3.14 £2.62
27	JDM46935 Available to backorder	Curved Washer	£1.66 £1.38
28	JDGX26085 Available to backorder	Spring Locking Pin	£1.66 £1.38
