John Deere L105 - PC9305 - Mower Deck (2/2) - ST728172

Name: John Deere L105 - PC9305 - Mower Deck (2/2) - ST728172
SKU: L105_PC9305_ST728172-group
Price: 0.55 GBP
Availability: InStock

Part No. L105_PC9305_ST728172-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

John Deere L105 - PC9305 - Mower Deck (2/2) - ST728172

Description

John Deere L105

PC Number - PC9305

Mower Deck, 42C Inch, (2/2) - ST728172

	Part No.	Details
1	JDBUC11055 Available to backorder	Mower Deck 42 inch	£626.69 £522.24
2	JDGX22456 In stock	Screw M8 x 20	£1.57 £1.31
3	JD14M7400 In stock	14M7465 Hexagonal Lock Nut M10	£2.36 £1.97
4	JDAUC17621 Available to backorder	Flat Idler Sheave	£52.74 £43.95
6	JDUC32283 In stock	V-Belt Effective Length 2635 mm 103.7 inch	£72.38 £60.32
7	JDGX26251 Available to backorder	Extension Spring [7B]	£16.55 £13.79
7	JDGX25342 Available to backorder	Brake Deck Rod Right Side [7A]	£4.44 £3.70
8	JDGX20513 Available to backorder	Hexagonal Lock Nut 9/16"	£5.89 £4.91
9	JDUC23728 Available to backorder	Mower Drive Sheave	£41.08 £34.23
10	JDGX23240 Available to backorder	Pivot Bushing	£1.66 £1.38
11	JDGX10120 Available to backorder	Extension Spring	£7.46 £6.22
12	JDAUC16256 Available to backorder	Mower Deck Idler Arm [12B]	£35.80 £29.83
12	JDGY20059 Available to backorder	Mower Deck Idler Arm 42 inch [12A]	£48.89 £40.74
13	JDGX26333 Available to backorder	Rod [13B]	£11.34 £9.45
13	JDGX23000 Available to backorder	Brake Rod Left Side [13A]	£14.47 £12.06
14	JDGX20494 Available to backorder	Torsion Spring	£9.72 £8.10
15	JDGX20515 Available to backorder	Round Flanged Retainer	£1.00 £0.83
16	JD37M7461 Available to backorder	37M7461 Hexagonal Flanged Head Self-Tapping Screw M8 x 25	£2.09 £1.74

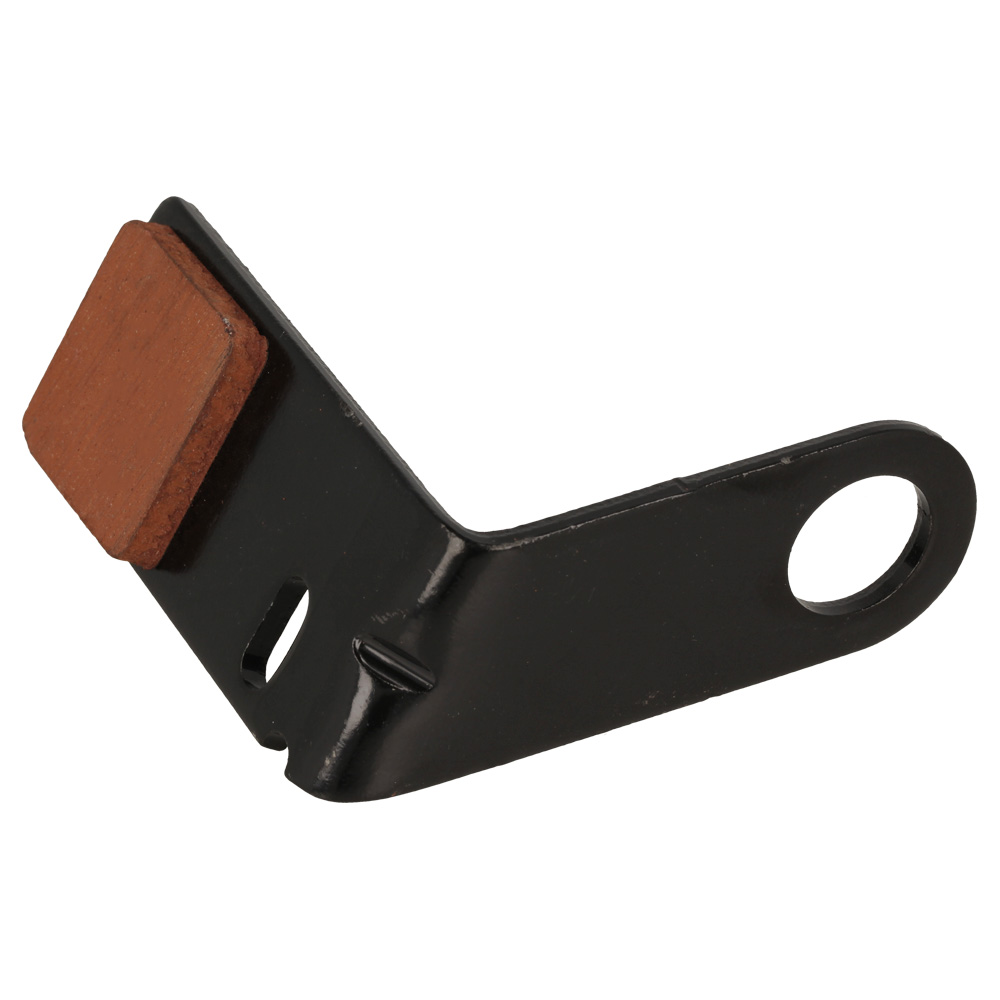

17	JDAUC17430 Available to backorder	Mower Deck Brake Pad	£29.70 £24.75
17	JDGY21943 Available to backorder	Mower Deck Brake Pad	£44.95 £37.46
18	JDGX20455 Available to backorder	Belt Guide Rod	£13.79 £11.49
19	JDGX22975 Available to backorder	Shaft	£80.04 £66.70
20	JDGY21773 Available to backorder	Spindle Shield 42 inch Right Side	£22.69 £18.91
21	JDAUC15811 Available to backorder	Mower Deck Drive Spindle	£115.20 £96.00
22	JDUC21583 In stock	Mower Deck Blade Cut Length 134 mm 5.2 inch	£42.92 £35.77
23	JDGX21694 In stock	Blade Mounting Lock Nut 5/8"	£5.80 £4.83
24	JDM149625 In stock	Concave Washer	£6.34 £5.28
25	JDGX21012 In stock	Hexagonal Flanged Head Self-Locking Screw M10 x 70	£6.91 £5.76
26	JDGX10168 In stock	Gauge Wheel	£20.04 £16.70
27	JDAUC16767 Available to backorder	Mower Deck 42 inch	£515.58 £429.65
28	JD24M7044 In stock	24M7044 Round Hole Washer	£0.66 £0.55
29	JDGX20497 In stock	Mower Deck Lift Linkage Arm Front Draft	£31.16 £25.97
30	JDH135891 Available to backorder	Hexagonal Lock Nut M10	£2.48 £2.07
31	JDM112982 In stock	Ball	£1.57 £1.31
32	JDM144705 Available to backorder	Spring Locking Pin	£1.28 £1.07
33	JDM163626 Available to backorder	Screw M6 x 20	£1.57 £1.31
35	JDGY21084 Available to backorder	Shield	£24.46 £20.38
37	JD14M7165 Available to backorder	14M7165 Hexagonal Lock Nut M6	£0.71 £0.59
38	JDAM141031 Available to backorder	Mower Blade Kit 42 Inch 3 in 1	£114.24 £95.20
38	JDAM141034 Available to backorder	High Lift Bagging Mower Blade Kit 42 Inch	£111.24 £92.70
39	JD14M7367 In stock	14M7367 Hexagonal Lock Nut M12	£3.30 £2.75
40	JDM159140 Available to backorder	Hexagonal Lock Nut 15.875 mm 5/8"	£4.30 £3.58
