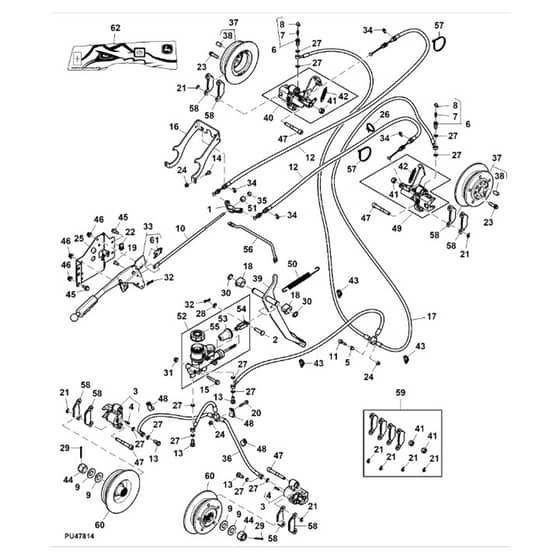

John Deere HPX615E - PC16096 - Front - ST1003048

Name: John Deere HPX615E - PC16096 - Front - ST1003048
SKU: HPX615E_PC16096_ST1003048-group
Price: 0.2 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

John Deere HPX615E - PC16096 - Front - ST1003048

Description

John Deere HPX615E

PC Number - PC16096

Front And Rear Brakes, W/ Park Brake - ST1003048

Be the first to review this product

0 product questions

	Part No.	Details
1	JDM153985 Available to backorder	Balancer	£39.58 £32.98
2	JD45M7060 Available to backorder	45M7060 Pin Fastener	£8.58 £7.15
3	JDAUC13924 Available to backorder	Disk Brake Caliper Assembly	£207.12 £172.60
4	JDUC18139 Available to backorder	Bleed Valve	£24.19 £20.16
5	JDL78691 Available to backorder	Tractor Bushing	£5.84 £4.87
6	JDAUC18602 Available to backorder	Bolt	£22.92 £19.10
9	JDM163861 Available to backorder	Concave Washer	£1.34 £1.12
10	JDM161531 Available to backorder	Park Brake Lever Rod	£21.80 £18.17
11	JD19M7797 Available to backorder	19M7797 Hexagonal Head Flange Bolt M6 x 40	£2.11 £1.76

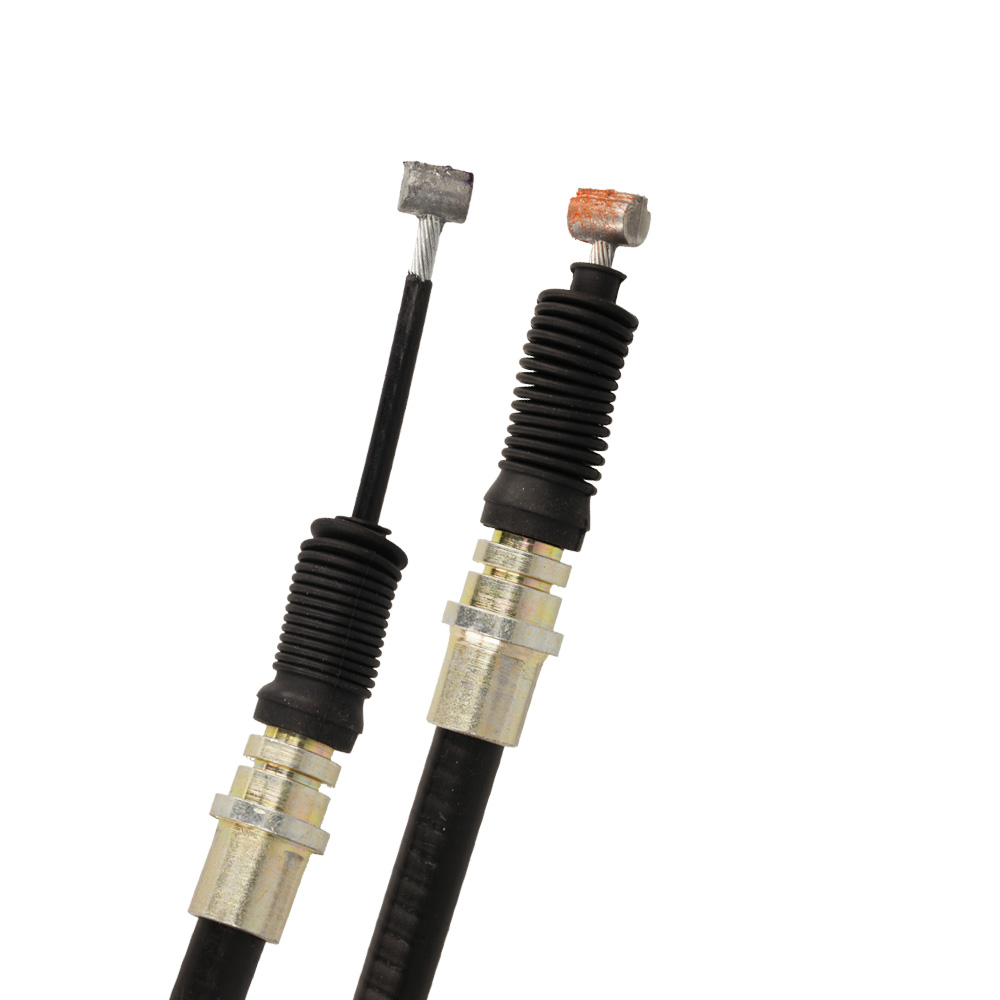

12	JDAM148833 In stock	Park Brake Cable	£83.40 £69.50
13	JDM162580 Available to backorder	Hollow Screw	£5.87 £4.89
14	JD19M7775 Available to backorder	19M7775 Hexagonal Head Screw M6 x 16	£1.22 £1.02
15	JD19M8319 Available to backorder	19M8319 Hexagonal Head Flange Bolt M8 x 50	£3.66 £3.05
18	JDM81214 Available to backorder	Clutch Bearing	£8.74 £7.28
19	JDM164051 Available to backorder	Pin Fastener	£14.52 £12.10
20	JD19M7833 Available to backorder	19M7833 Hexagonal Head Flanged Screw M6 x 35	£1.96 £1.63
21	JDM154090 Available to backorder	External Snap Ring	£1.02 £0.85
22	JDM123593 In stock	Clip Lock Nut M8	Was £2.06 £1.72 Special Price £1.93 £1.61
23	JDM141434 Available to backorder	Flanged Screw M10 x 33	£5.00 £4.17
24	JD14M7397 In stock	14M7397 Hexagonal Flange Lock Nut M6	£0.94 £0.78
26	JDR44302 Available to backorder	Tie-Band 7-1/2"	£0.24 £0.20
27	JDM170554 Available to backorder	Round Hole Washer	£2.32 £1.93
28	JD24M7096 Available to backorder	24M7096 Round Hole Washer	£0.50 £0.42
29	JD11M7087 Available to backorder	11M7087 Cotter Pin	£0.53 £0.44
30	JDM40514 Available to backorder	External Snap Ring	£4.06 £3.38
31	JD14M7298 Available to backorder	14M7298 Hexagonal Flange Nut M8	£0.68 £0.57
32	JDM146729 Available to backorder	Spring Locking Pin	£0.68 £0.57
33	JDAM148823 Available to backorder	Park Brake Lever Handle	£253.32 £211.10
34	JDR26871 Available to backorder	External Snap Ring	£1.96 £1.63
35	JD14M7327 Available to backorder	14M7327 Hexagonal Lock Nut M8	£1.37 £1.14
37	JDAM135647 In stock	Brake Rear Rotor Hub	£203.64 £169.70
38	JDM154392 Available to backorder	Dowel Pin	£7.49 £6.24
40	JDAUC11301 Available to backorder	Rear Disk Brake Caliper Assembly Right Side	£357.60 £298.00
42	JDM153951 Available to backorder	Extension Spring	£16.70 £13.92
43	JDM161168 Available to backorder	Snap-In Clamp	£1.14 £0.95
44	JD14M7188 Available to backorder	14M7188 Hexagonal Slotted Nut M20	£12.82 £10.68
45	JD19M7866 Available to backorder	19M7866 Hexagonal Head Flanged Screw M8 x 20	£1.32 £1.10
46	JD14M7396 Available to backorder	14M7396 Hexagonal Flange Self-Lock Nut M8	£0.46 £0.38
47	JDM152674 Available to backorder	Cylindrical Head Screw 0.438" x 3.142"	£5.12 £4.27
49	JDAUC11302 Available to backorder	Rear Disk Brake Caliper Assembly Left Side	£361.20 £301.00
50	JDM141788 Available to backorder	Spring	£13.45 £11.21
51	JDVG11406 Available to backorder	Hexagonal Nut M8	£5.58 £4.65
52	JDAM148820 Available to backorder	Brake Tandem Cylinder	£323.64 £269.70
55	JDAM143853 Available to backorder	Brake Cap	£49.63 £41.36
56	JDM154548 Available to backorder	Support	£32.34 £26.95
57	JDH77698 Available to backorder	Tie-Band	£1.21 £1.01
59	JDAM141182 In stock	Brake Pad Kit	£150.53 £125.44

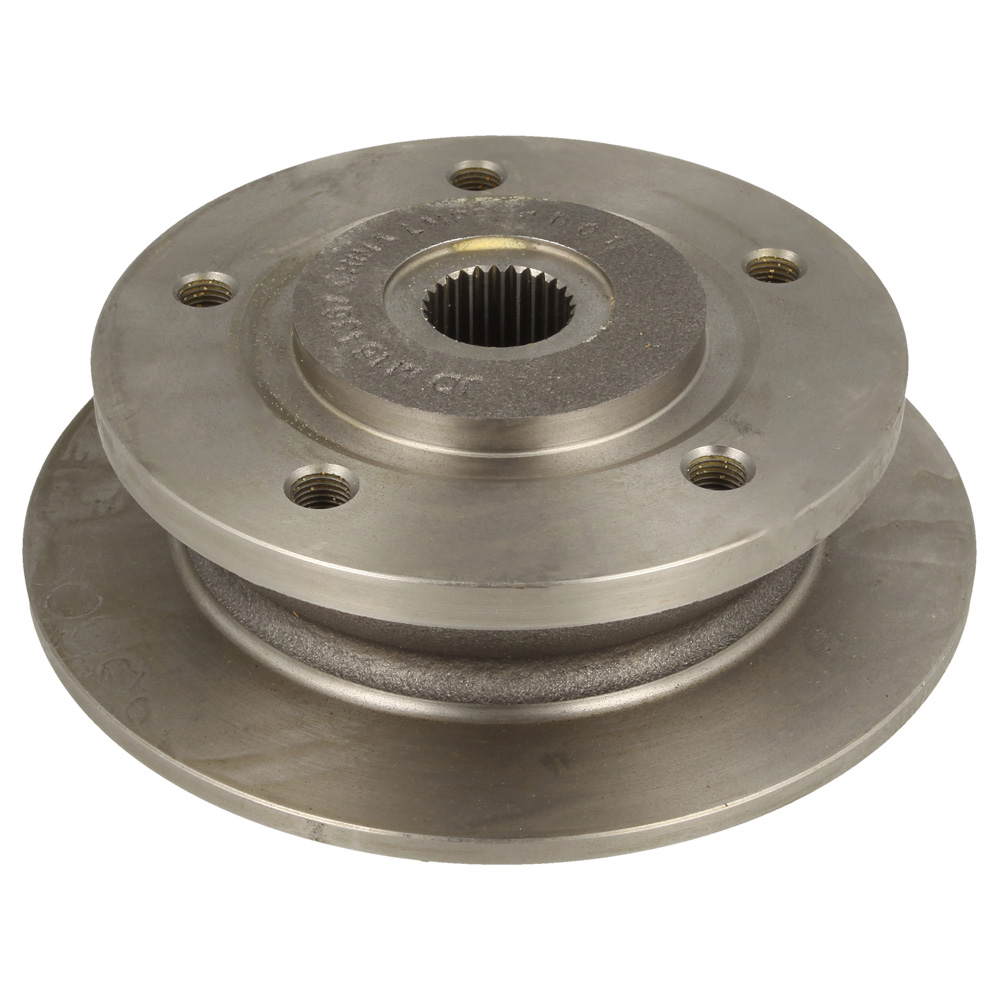

60	JDAM142950 Available to backorder	Brake Hub Kit	£214.19 £178.49
61	JDVGA10707 Available to backorder	Park Brake Assembly Switch	£36.91 £30.76
