John Deere 2520 - PC1145 - Transmission - ST120

John Deere 2520 - PC1145 - Transmission - ST120
John Deere 2520 - PC1145 - Transmission - ST120

Description

John Deere 2520

PC Number - PC1145

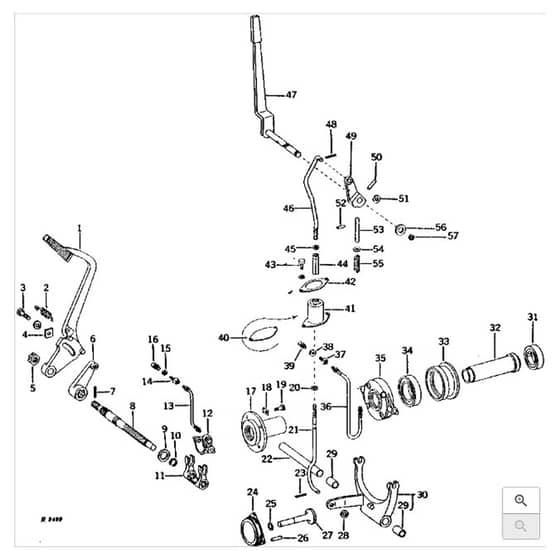

Transmission And Pto Clutch Controls (Collar Shift) (Serial No. -200999) [01F21] - 40-4 - ST120

Ref. Img. Part No. Details
  2 Clutch Pedal Extension Spring
Clutch Pedal Extension Spring
JDR26833
Available to backorder
Clutch Pedal Extension Spring
£30.04 £25.03

  3 12H301 Lock Washer
12H301 Lock Washer
JD12H301
Available to backorder
12H301 Lock Washer
£0.84 £0.70

  3 19H2993 Hexagonal Head Cap Screw 1/2
19H2993 Hexagonal Head Cap Screw 1/2
JD19H2993
Available to backorder
19H2993 Hexagonal Head Cap Screw 1/2" x 1-1/2"
£4.06 £3.38

  7 11M7083 Cotter Pin
11M7083 Cotter Pin
JD11M7083
Available to backorder
11M7083 Cotter Pin
£0.53 £0.44

  9 24H1477 Round Hole Washer
24H1477 Round Hole Washer
JD24H1477
Available to backorder
24H1477 Round Hole Washer
£1.78 £1.48

  10 External Snap Ring
External Snap Ring
JDR26643
Available to backorder
External Snap Ring
£8.30 £6.92

  11 Clutch Fork
Clutch Fork
JDR31393
Available to backorder
Clutch Fork
£320.39 £266.99

  15 Hexagonal Nut 3.175 mm 1/8
Hexagonal Nut 3.175 mm 1/8
JDE12379
Available to backorder
Hexagonal Nut 3.175 mm 1/8"
£2.21 £1.84

  16 Lubrication Fitting
Lubrication Fitting
JDJD7797
Available to backorder
Lubrication Fitting
£1.19 £0.99

  18 Lock Plate
Lock Plate
JDR30958
Available to backorder
Lock Plate
£3.83 £3.19

  19 19H2284 Hexagonal Head Screw 3/8
19H2284 Hexagonal Head Screw 3/8
JD19H2284
Available to backorder
19H2284 Hexagonal Head Screw 3/8" x 7/8"
£1.30 £1.08

  20 14H971 Hexagonal Nut 1/2
14H971 Hexagonal Nut 1/2
JD14H971
Available to backorder
14H971 Hexagonal Nut 1/2"
£1.30 £1.08

  25 O-RING
O-RING
JDB2762R
Available to backorder
O-RING
£4.34 £3.62

  26 Dowel Pin
Dowel Pin
JDR36666
Available to backorder
Dowel Pin
£6.80 £5.67

  28 24H1341 Round Hole Washer
24H1341 Round Hole Washer
JD24H1341
Available to backorder
24H1341 Round Hole Washer
£0.66 £0.55

  29 R Pin
R Pin
JDA776R
Available to backorder
R Pin
£18.18 £15.15

  31 T Thrust Ball Bearing
T Thrust Ball Bearing
JDAM3983T
Available to backorder
T Thrust Ball Bearing
£119.56 £99.63

  33 Transmission Clutch Control Shift Collar
Transmission Clutch Control Shift Collar
JDR26666
Available to backorder
Transmission Clutch Control Shift Collar
£307.80 £256.50

  34 Single Row Cylindrical Ball Bearing
Single Row Cylindrical Ball Bearing
JDAR27447
Available to backorder
Single Row Cylindrical Ball Bearing
£145.97 £121.64

  36 Hydraulic Hose
Hydraulic Hose
JDR35644
Available to backorder
Hydraulic Hose
£72.94 £60.78

  43 12H303 Lock Washer
12H303 Lock Washer
JD12H303
Available to backorder
12H303 Lock Washer
£0.46 £0.38

  43 19H2127 Hexagonal Head Screw 5/16
19H2127 Hexagonal Head Screw 5/16
JD19H2127
Available to backorder
19H2127 Hexagonal Head Screw 5/16" x 7/8"
£1.25 £1.04

  48 11H236 Cotter Pin
11H236 Cotter Pin
JD11M7015
Available to backorder
11H236 Cotter Pin
£0.30 £0.25

  50 34H331 Spring Pin
34H331 Spring Pin
JD34H331
Available to backorder
34H331 Spring Pin
£1.66 £1.38

  51 WASHER
WASHER
JD24H1227
Available to backorder
WASHER
£0.71 £0.59

  54 24H1325 Round Hole Washer
24H1325 Round Hole Washer
JD24H1325
Available to backorder
24H1325 Round Hole Washer
£0.91 £0.76

  56 24H1396 Round Hole Washer
24H1396 Round Hole Washer
JD24H1396
Available to backorder
24H1396 Round Hole Washer
£1.85 £1.54

  57 External Snap Ring
External Snap Ring
JDR73380
Available to backorder
External Snap Ring
£7.33 £6.11


Description

John Deere 2520

PC Number - PC1145

Transmission And Pto Clutch Controls (Collar Shift) (Serial No. -200999) [01F21] - 40-4 - ST120
