John Deere 1905 - PC9386 - Cutting Unit - ST501784

Name: John Deere 1905 - PC9386 - Cutting Unit - ST501784
SKU: 1905_PC9386_ST501784-group
Price: 0.76 GBP
Availability: InStock

Part No. 1905_PC9386_ST501784-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

John Deere 1905 - PC9386 - Cutting Unit - ST501784

Description

John Deere 1905

PC Number - PC9386

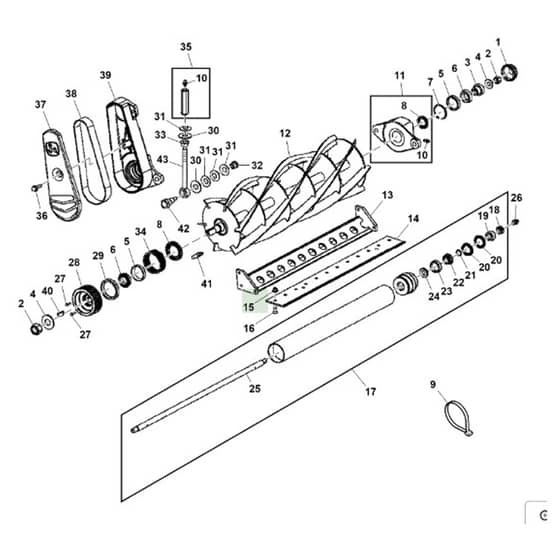

Cutting Unit, Esp™ (Continued) - ST501784

	Part No.	Details
1	JDQ31117 Available to backorder	Hub Cap	£12.92 £10.77
2	JDA31869 Available to backorder	Hexagonal Lock Nut M16	£3.48 £2.90
3	JDET16932 Available to backorder	Hub	£87.00 £72.50
5	JDJD8225 Available to backorder	Bearing Cup	£13.38 £11.15
6	JDJD8187 Available to backorder	Bearing Cone	£32.59 £27.16
7	JDM18237 Available to backorder	Snap Ring	£9.26 £7.72
7	JDTCU28719 Available to backorder	Compression Spring	£52.96 £44.13
8	JDAP19509 Available to backorder	Internal Oil Seal	£18.43 £15.36
9	JDR76477 Available to backorder	Tie-Band	£2.60 £2.17
10	JDJD7844 Available to backorder	Straight Lubrication Fitting	£2.16 £1.80
12	JDAMT2891 Available to backorder	Mower Reel 8-Blade	£632.46 £527.05
14	JDET16755 Available to backorder	Cutterbar Knife	£185.76 £154.80
15	JDH135891 Available to backorder	Hexagonal Lock Nut M10	£2.48 £2.07
16	JD19M8551 Available to backorder	19M8551 Countersunk Head Screw M10 x 25	£3.40 £2.83
17	JDAMT2961 Available to backorder	Roller	£406.08 £338.40
18	JDN101345 Available to backorder	Hexagonal Lock Nut 19.05 mm 3/4"	£5.81 £4.84
19	JDET15726 Available to backorder	Sleeve	£39.42 £32.85
20	JDET15755 In stock	Internal Oil Seal	£10.24 £8.53
21	JDU46731 Available to backorder	Round Cross Section O-Ring	£2.26 £1.88
22	JDJD8188 Available to backorder	Bearing Cone	£29.34 £24.45
23	JDJD8226 Available to backorder	Tapered Roller Bearing Cup	£15.46 £12.88
24	JDMT739 Available to backorder	Internal Oil Seal	£12.13 £10.11
25	JDET16934 Available to backorder	Roller Shaft	£118.68 £98.90
26	JDJD7759 Available to backorder	Straight Lubrication Fitting	£1.82 £1.52
27	JD19M7077 Available to backorder	19M7077 Hexagonal Head Cap Screw M6 x 20	£0.91 £0.76
28	JDTCA25562 Available to backorder	Synchronous Belt Pulley	£555.10 £462.58
29	JDAT49215 Available to backorder	Internal Oil Seal	£45.34 £37.78
30	JDET16424 Available to backorder	Round Hole Washer	£4.26 £3.55
31	JDET16678 Available to backorder	Concave Washer	£3.85 £3.21
32	JDET16572 Available to backorder	Hexagonal Nut M10	£6.88 £5.73
33	JDET17361 Available to backorder	Hexagonal Flange Nut 1/2"	£3.32 £2.77
35	JDAMT2965 Available to backorder	Housing Adjuster	£69.84 £58.20
36	JD19M7867 Available to backorder	19M7867 Hexagonal Head Flanged Screw M8 x 25	£1.67 £1.39
38	JDDMU212181 Available to backorder	V-Belt Effective Length 752 mm 29.6 inch	£98.28 £81.90
39	JDMT6800 Available to backorder	Left Side Belt Drive Housing	£838.18 £698.48
40	JD26H76 Available to backorder	26H76 Shaft Key	£1.64 £1.37
42	JDET16896 Available to backorder	Hexagonal Head Screw 5/8" x 1.88"	£25.49 £21.24
43	JDET16897 Available to backorder	Eyebolt	£59.99 £49.99
44	JDAET10632 Available to backorder	Seal Kit	£170.76 £142.30
