John Deere 1580 - PC12160 - Brake Pedal - ST773528

Name: John Deere 1580 - PC12160 - Brake Pedal - ST773528
SKU: 1580_PC12160_ST773528-group
Price: 0.21 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

John Deere 1580 - PC12160 - Brake Pedal - ST773528

Description

John Deere 1580

PC Number - PC12160

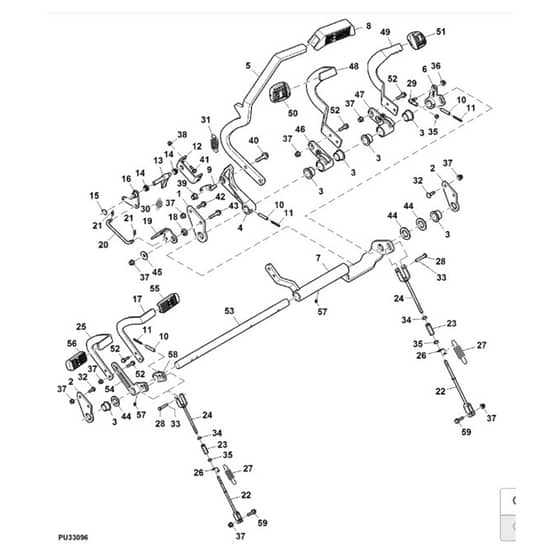

Brake Pedal And Linkages - ST773528

Be the first to review this product

0 product questions

	Part No.	Details
3	JDTCU12437 Available to backorder	Cylindrical Flanged Alloy Bushing	£20.26 £16.88
4	JDUC16512 Available to backorder	Master Brake Pedal Support	£141.65 £118.04
8	JDTCU18371 Available to backorder	Windshield Pad	£38.48 £32.07
9	JDTCU12459 Available to backorder	Bracket	£17.72 £14.77
10	JDTCU24089 Available to backorder	Spring Pin	£1.39 £1.16
11	JDTCU24000 Available to backorder	Spring Pin	£1.80 £1.50
13	JDUC17617 Available to backorder	Park Brake Lock Pawl	£42.29 £35.24
14	JDTCU15222 Available to backorder	Flanged Split Bushing	£2.62 £2.18
15	JD40M7202 Available to backorder	40M7202 External Snap Ring	£3.14 £2.62
19	JDTCU35954 Available to backorder	Brake Release Pedal	£35.28 £29.40
21	JDTCU33333 Available to backorder	Spring Locking Pin	£1.62 £1.35
22	JDTCA13166 Available to backorder	Brake Pedal Lower Yoke	£35.87 £29.89
23	JDM93998 Available to backorder	Hand Brake Rod Linkage Turnbuckle	£13.18 £10.98
24	JDTCA12426 Available to backorder	Brake Pedal Upper Yoke	£52.80 £44.00
26	JDTCU14811 Available to backorder	Brake Return Spring Hook	£13.43 £11.19
27	JDTCU14812 Available to backorder	Extension Spring	£11.72 £9.77
28	JDTCU12467 Available to backorder	Pin	£5.17 £4.31
29	JDAM102064 Available to backorder	Ball Joint	£41.47 £34.56
30	JDM153186 Available to backorder	Extension Spring	£7.92 £6.60
31	JDTCU15476 Available to backorder	Extension Spring	£9.54 £7.95
32	JD03M7185 Available to backorder	03M7185 Carriage Bolt M8 x 25	£1.14 £0.95
33	JD11M7099 Available to backorder	11M7099 Cotter Pin	£0.25 £0.21
34	JD14M7145 Available to backorder	14M7145 Hexagonal Nut M8	£2.44 £2.03
35	JD14M7273 Available to backorder	14M7273 Hexagonal Lock Nut M8	£0.66 £0.55
36	JD14M7298 Available to backorder	14M7298 Hexagonal Flange Nut M8	£0.68 £0.57
37	JD14M7396 Available to backorder	14M7396 Hexagonal Flange Self-Lock Nut M8	£0.46 £0.38
38	JD14M7397 In stock	14M7397 Hexagonal Flange Lock Nut M6	£0.94 £0.78
39	JD14M7400 Available to backorder	14M7465 Hexagonal Lock Nut M10	£2.20 £1.83
40	JD19M7804 Available to backorder	19M7804 Hexagonal Head Flange Bolt M10 x 40	£3.66 £3.05
41	JD19M7862 Available to backorder	19M7862 Hexagonal Head Flange Bolt M6 x 20	£1.37 £1.14
42	JD19M7867 Available to backorder	19M7867 Hexagonal Head Flanged Screw M8 x 25	£1.60 £1.33
43	JD19M8317 Available to backorder	19M8317 Hexagonal Head Flange Bolt M8 x 40	£2.41 £2.01
44	JD24M7091 Available to backorder	24M7091 Round Hole Washer	£3.12 £2.60
45	JD24M7178 Available to backorder	24M7178 Round Hole Washer	£1.68 £1.40
50	JDM125849 Available to backorder	Pad	£26.10 £21.75
51	JDM125850 Available to backorder	Hydrostatic Control Reverse Pad	£17.45 £14.54
52	JD19M7868 Available to backorder	19M7868 Hexagonal Head Flanged Screw M8 x 30	£2.00 £1.67
57	JDJD7844 Available to backorder	Straight Lubrication Fitting	£2.16 £1.80
59	JD19M7897 Available to backorder	19M7897 Hexagonal Head Flange Screw M8 x 35	£2.28 £1.90
