John Deere 1575 - PC12159 - Belt Idlers (090001 - ) - ST1065332

Name: John Deere 1575 - PC12159 - Belt Idlers (090001 - ) - ST1065332
SKU: 1575_PC12159_ST1065332-group
Price: 0.34 GBP
Availability: InStock

Part No. 1575_PC12159_ST1065332-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

John Deere 1575 - PC12159 - Belt Idlers (090001 - ) - ST1065332

Description

John Deere 1575

PC Number - PC12159

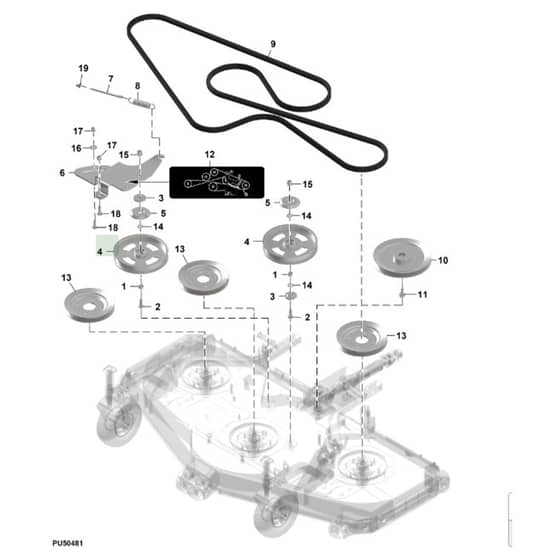

Belt Idlers, Mower Deck, 72Rd Inch, For Canada And Usa (090001 - ) - ST1065332

	Part No.	Details
1	JDTCU17020 Available to backorder	Cylindrical Alloy Bushing	£4.52 £3.77
2	JDM134834 Available to backorder	Hexagonal Head Square Neck Screw M12 x 55	£5.12 £4.27
3	JDM132309 Available to backorder	Shouldered Spacer	£11.56 £9.63
4	JDAUC16477 Available to backorder	Backside Idler Pulley	£81.24 £67.70
5	JDM133598 Available to backorder	Idler Shield	£18.32 £15.27
7	JDM141764 Available to backorder	Eyebolt M8 x 130	£7.24 £6.03
8	JDM136044 Available to backorder	Idler Extension Spring	£18.71 £15.59
9	JDTCU19900 Available to backorder	Mower Drive V-Belt Effective Length 4459 mm 175.6 inch	£320.28 £266.90
11	JD19M7788 Available to backorder	19M7788 Hexagonal Head Flanged Screw M12 x 25	£2.94 £2.45
12	JDTCU36590 Available to backorder	Belt Tension Label	£12.84 £10.70
13	JDTCU51522 Available to backorder	Sheave	£83.28 £69.40
14	JD24M7047 Available to backorder	Round Hole Washer	£0.98 £0.82
15	JD14M7401 Available to backorder	14M7401 Hexagonal Lock Nut M12	£2.94 £2.45
16	JD24M7178 Available to backorder	24M7178 Round Hole Washer	£1.68 £1.40
17	JD14M7400 In stock	14M7465 Hexagonal Lock Nut M10	£2.36 £1.97
18	JD03M7193 Available to backorder	03M7193 Round Head Square Neck Bolt M10 x 35	£2.41 £2.01
19	JD14M7396 Available to backorder	14M7396 Hexagonal Flange Self-Lock Nut M8	£0.41 £0.34
