IS 2026 - - Efco Sprayer Engine Diagram

Name: IS 2026 - - Efco Sprayer Engine Diagram
SKU: is_2026_engine-group
Price: 0.68 GBP
Availability: InStock

Part No. is_2026_engine-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

Efco IS 2026 Parts Diagram

Model Year -

	Part No.	Details
1	EF61070007 Available to backorder	Gasket	£2.00 £1.67
2	EF3801051R Available to backorder	Screw	£1.08 £0.90
3	EF61070004 Available to backorder	Insulator	£19.92 £16.60

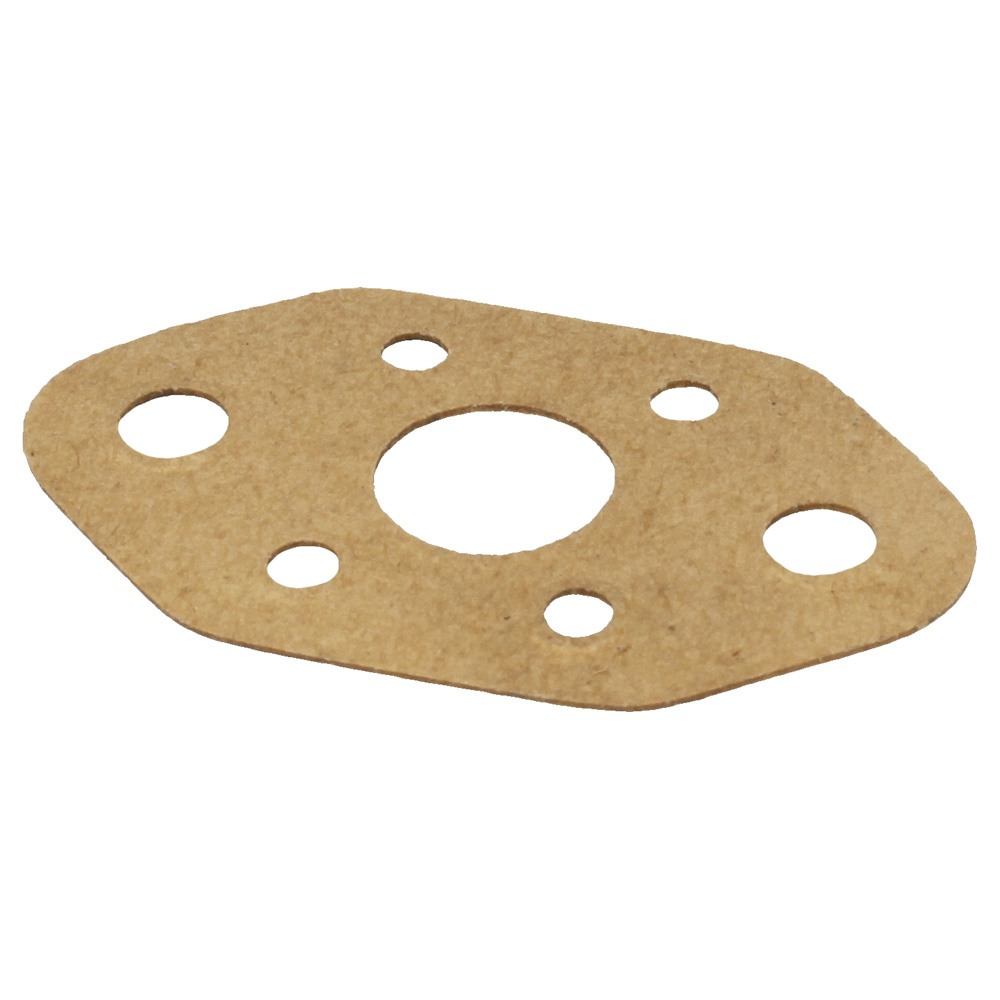

4	EF4161438 Available to backorder	Gasket	£1.63 £1.36
5	EF2318945R Available to backorder	Carburetor Wyj-372	£125.88 £104.90

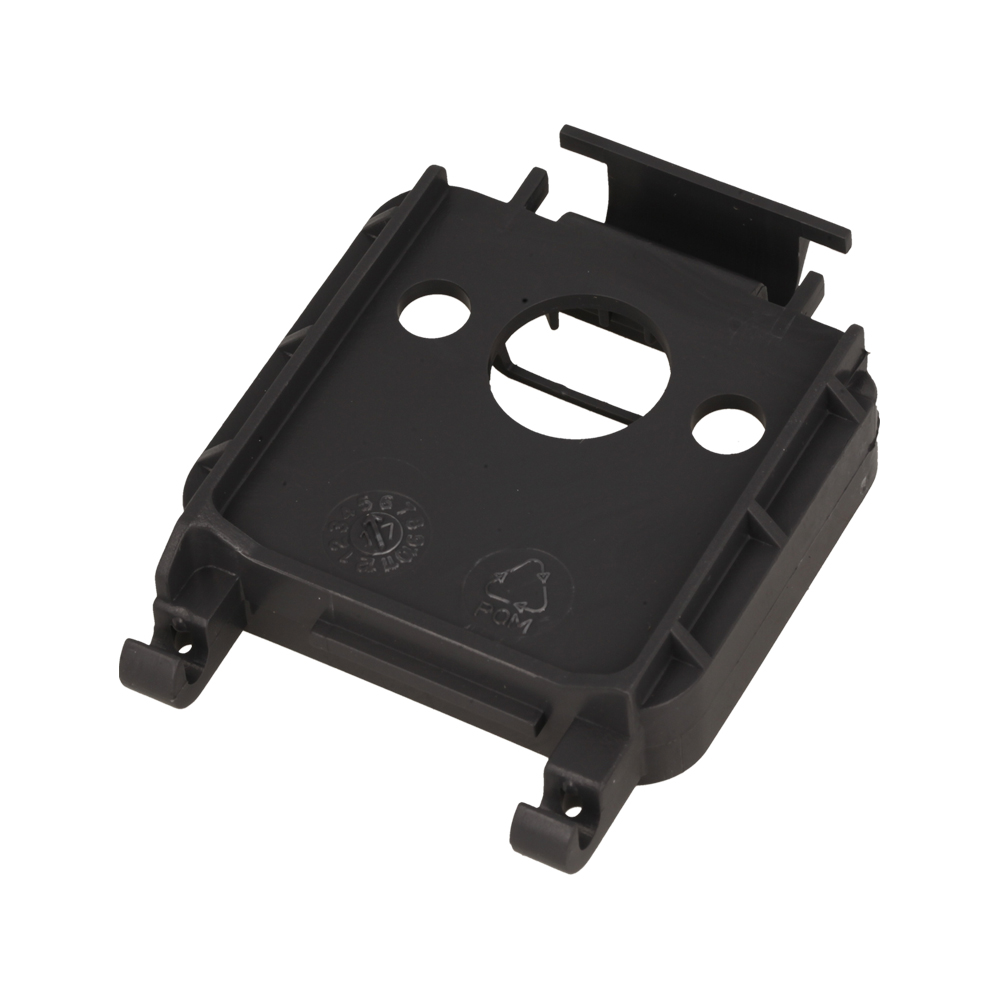

6	EF61070003ER In stock	Filter Support	£9.32 £7.77
7	EF61040020 Available to backorder	Bushing	£3.01 £2.51
8	EF61052009BR Available to backorder	Screw	£2.46 £2.05

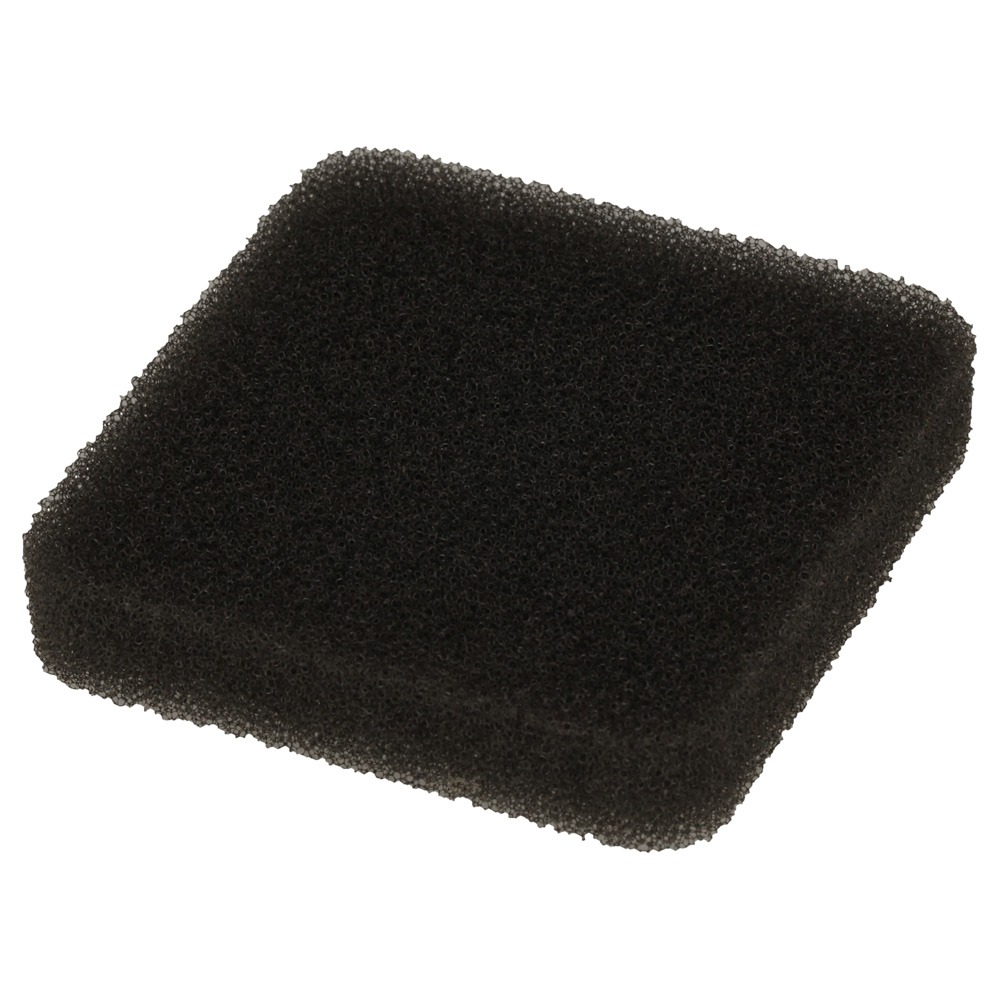

9	EF61070005R In stock	Air Filter	£2.50 £2.08
10	EF56010002A Available to backorder	Cover	£9.00 £7.50
11	EF3833073R Available to backorder	Washer	£1.08 £0.90
12	EF094600097AR Available to backorder	Spark Plug Cap	£5.64 £4.70
13	EF094600169AR Available to backorder	Spring	£3.01 £2.51

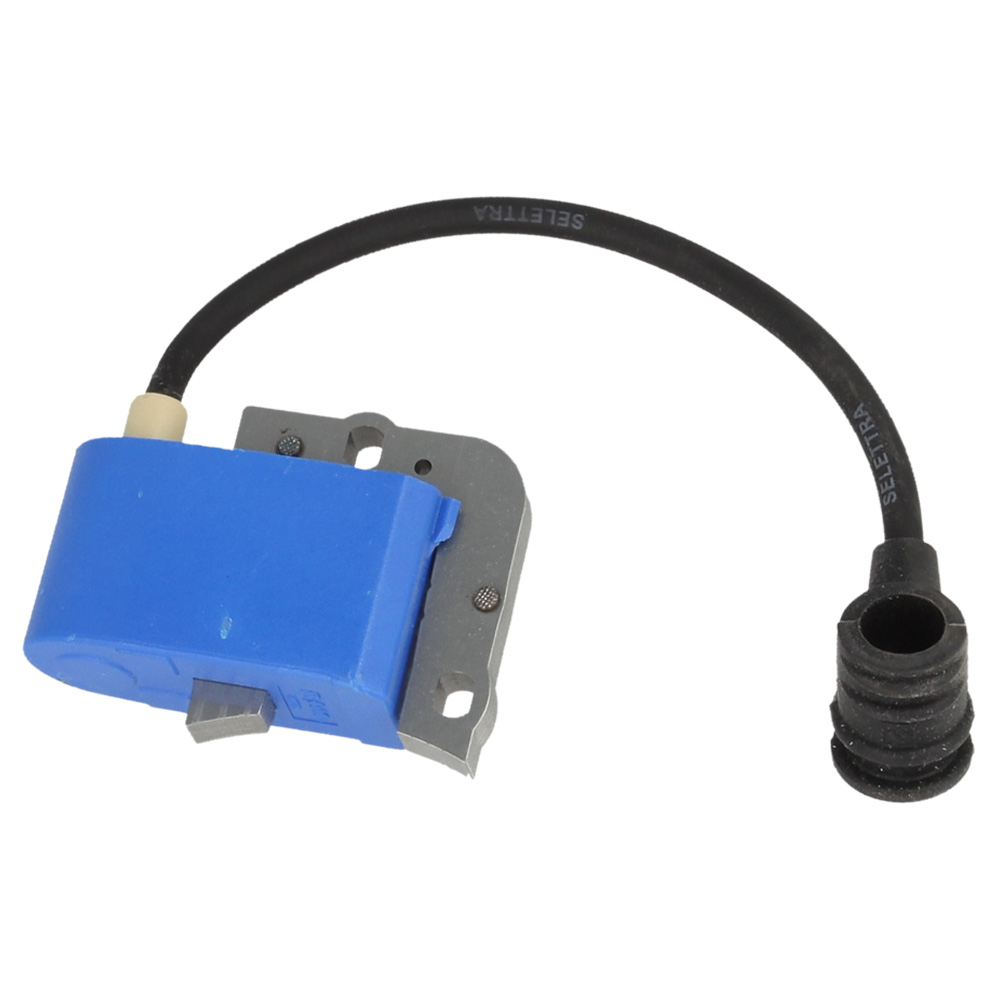

14	EF56510066R Available to backorder	Ignition Coil	£63.72 £53.10
15	EF3819005 Available to backorder	Washer	£1.08 £0.90
16	EF006000085 Available to backorder	Screw	£1.08 £0.90
17	EF3916004R Available to backorder	Washer	£1.66 £1.38
18	EF56010004 Available to backorder	Cable	£9.00 £7.50
19	EF50070148A Available to backorder	Spacer	£1.06 £0.88
20	EF3980012 Available to backorder	Nut	£2.00 £1.67
21	EF61070017BR Available to backorder	Flywheel	£75.72 £63.10
22	EF61070039R Available to backorder	Spring	£2.00 £1.67

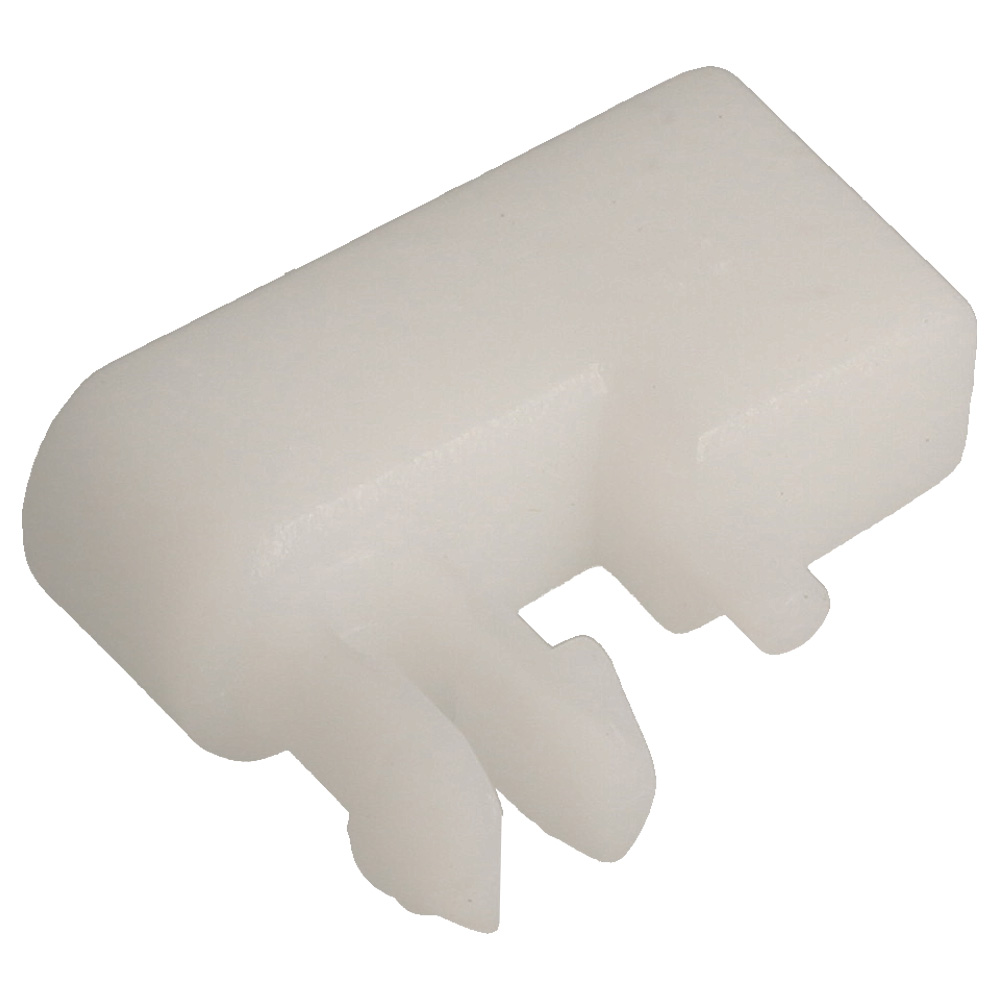

23	EF61070038R Available to backorder	Pawl	£2.00 £1.67
24	EF61070053A Available to backorder	Clutch Driver	£12.60 £10.50
25	EF3960070AR Available to backorder	Screw	£1.08 £0.90
26	EF094600451 Available to backorder	Washer	£1.08 £0.90
27	EF61070035BR Available to backorder	Starter Pulley	£3.84 £3.20
28	EF61070036R In stock	Spring	£11.82 £9.85
29	EF61070019A Available to backorder	Starter Rope	£1.76 £1.47
30	EF093500397 In stock	Starter Handle	Was £3.68 £3.07 Special Price £2.72 £2.27
31	EF072700089R Available to backorder	Bushing	£3.01 £2.51

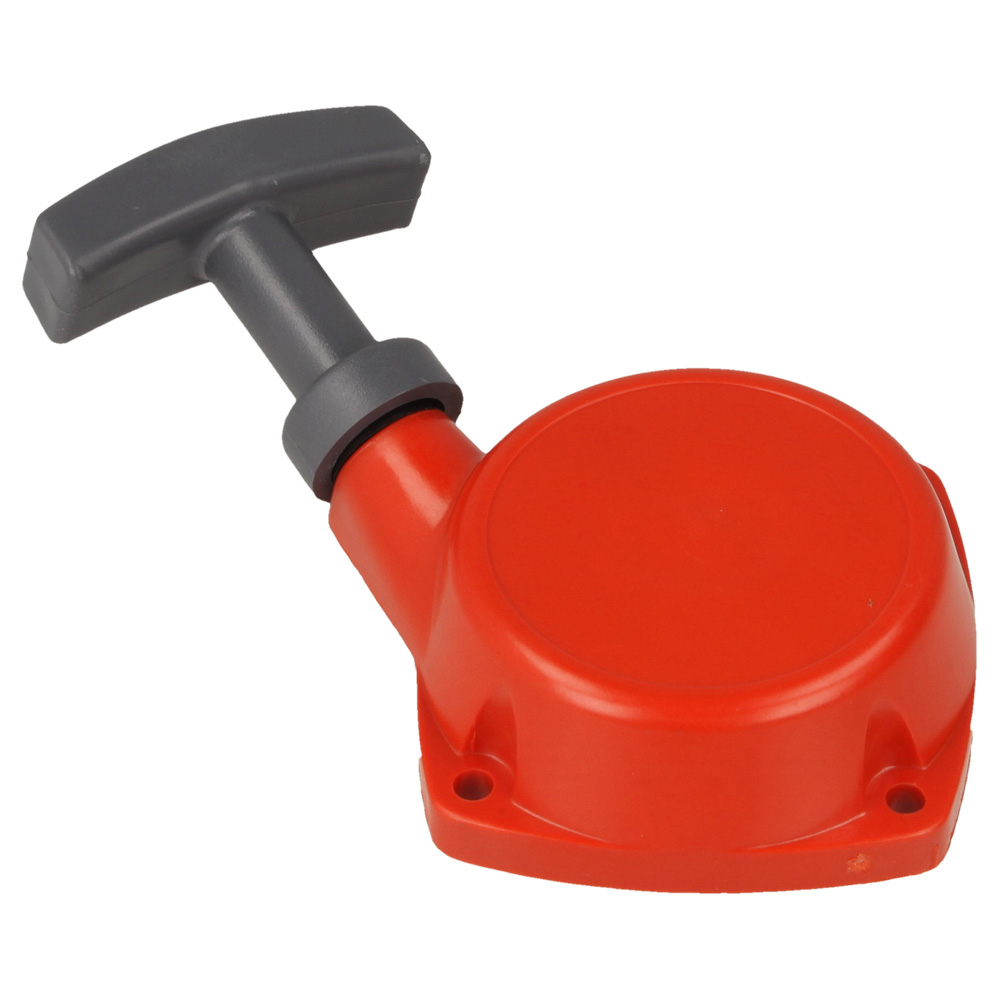

32	EF61072008CR Available to backorder	Starter Assy	£38.04 £31.70
33	EF61070009 Available to backorder	Stand	£9.00 £7.50
34	EF3918005R Available to backorder	Washer	£2.66 £2.22
35	EF3819006R Available to backorder	Washer	£1.58 £1.32
36	EF3801013R Available to backorder	Screw	£1.61 £1.34
37	EF4161211R Available to backorder	Bush	£1.87 £1.56
38	EF4098377R Available to backorder	Band	£2.00 £1.67

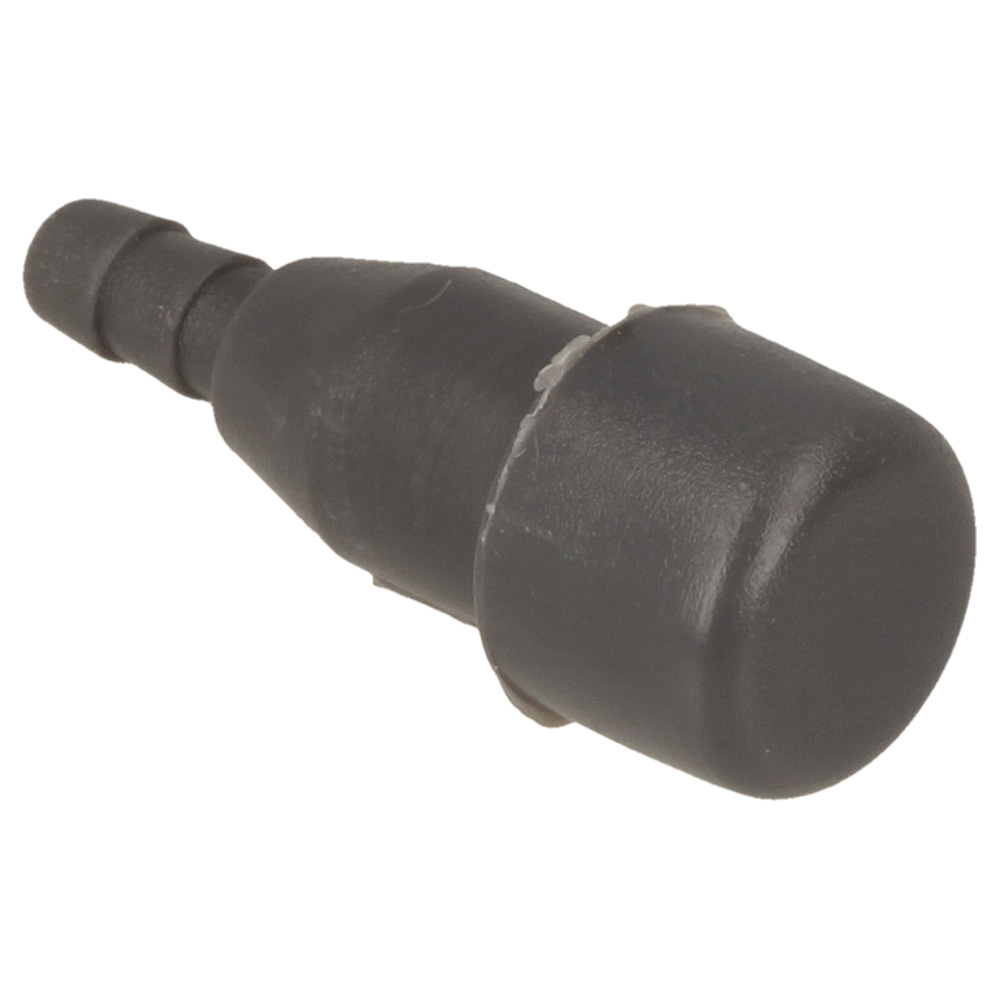

39	EF61070011AR Available to backorder	Breather Valve	£11.40 £9.50

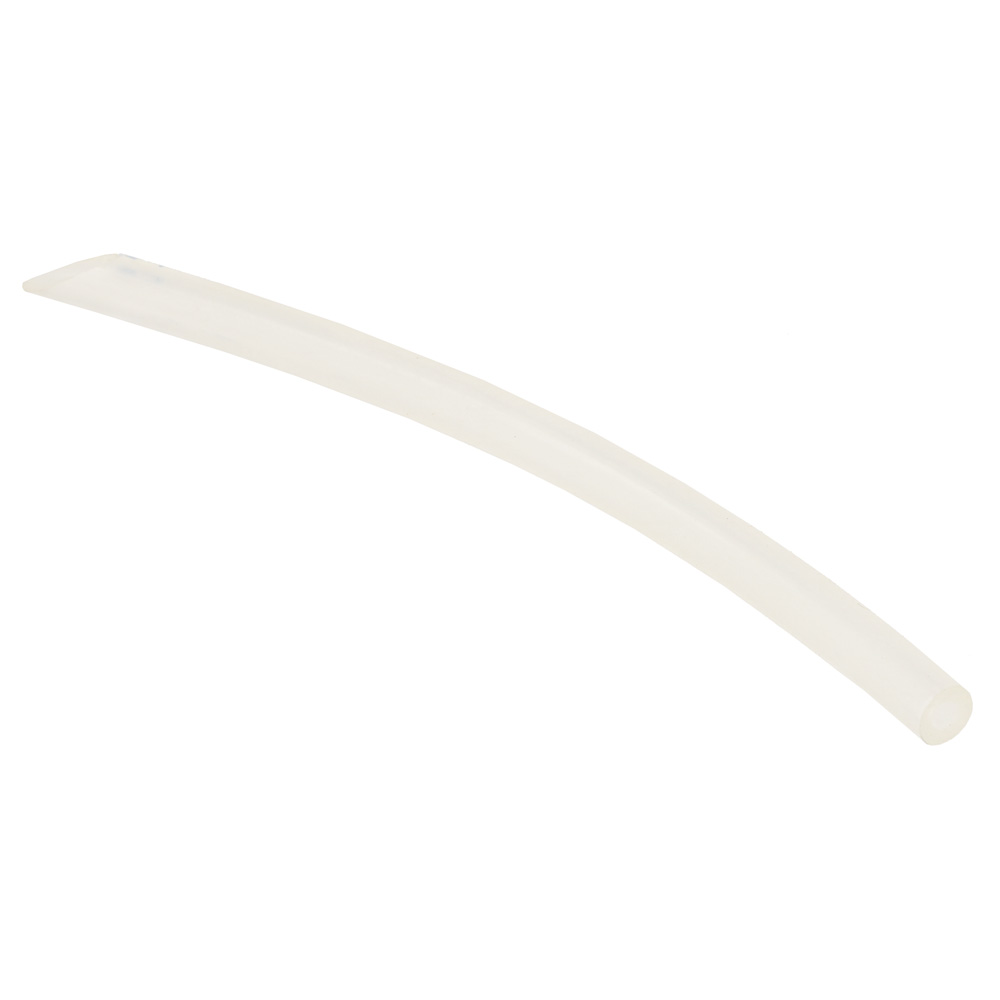

40	EF61290088R Available to backorder	Tube	£3.12 £2.60

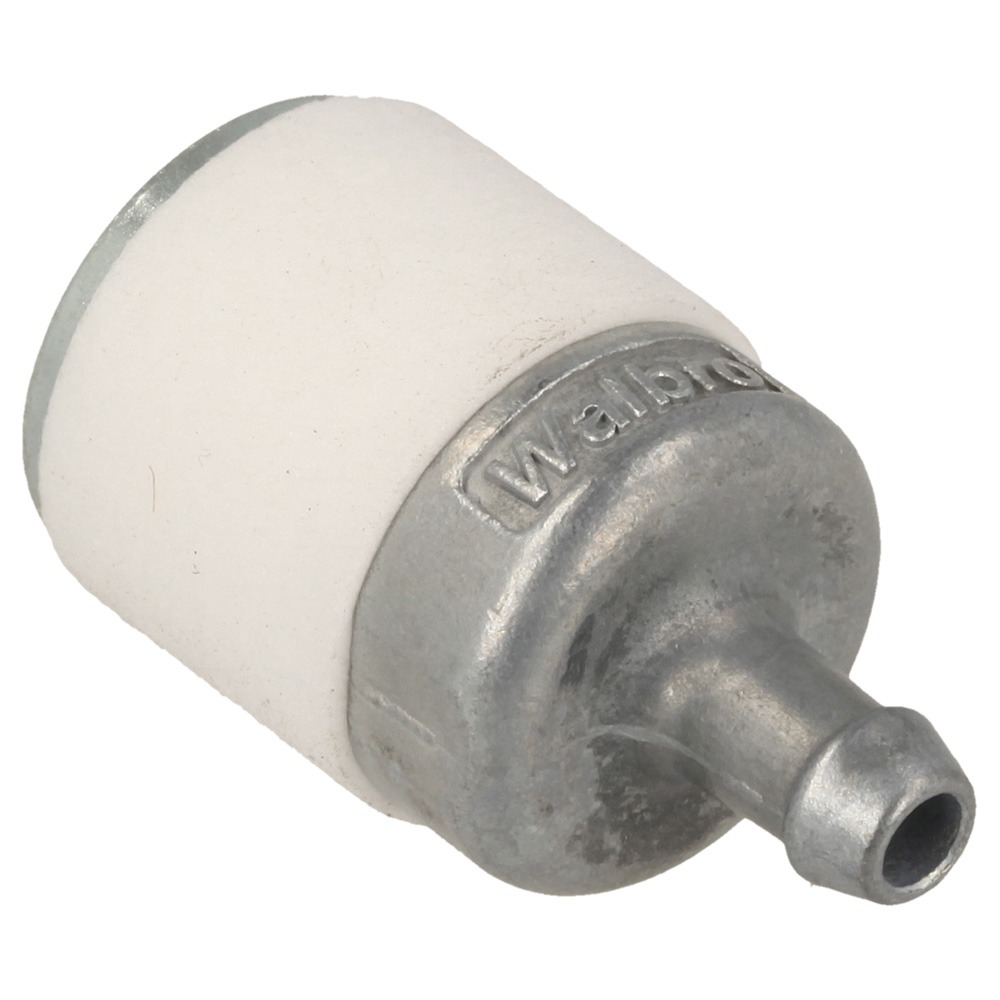

41	EF61370639R In stock	Fuel Filter	£8.83 £7.36

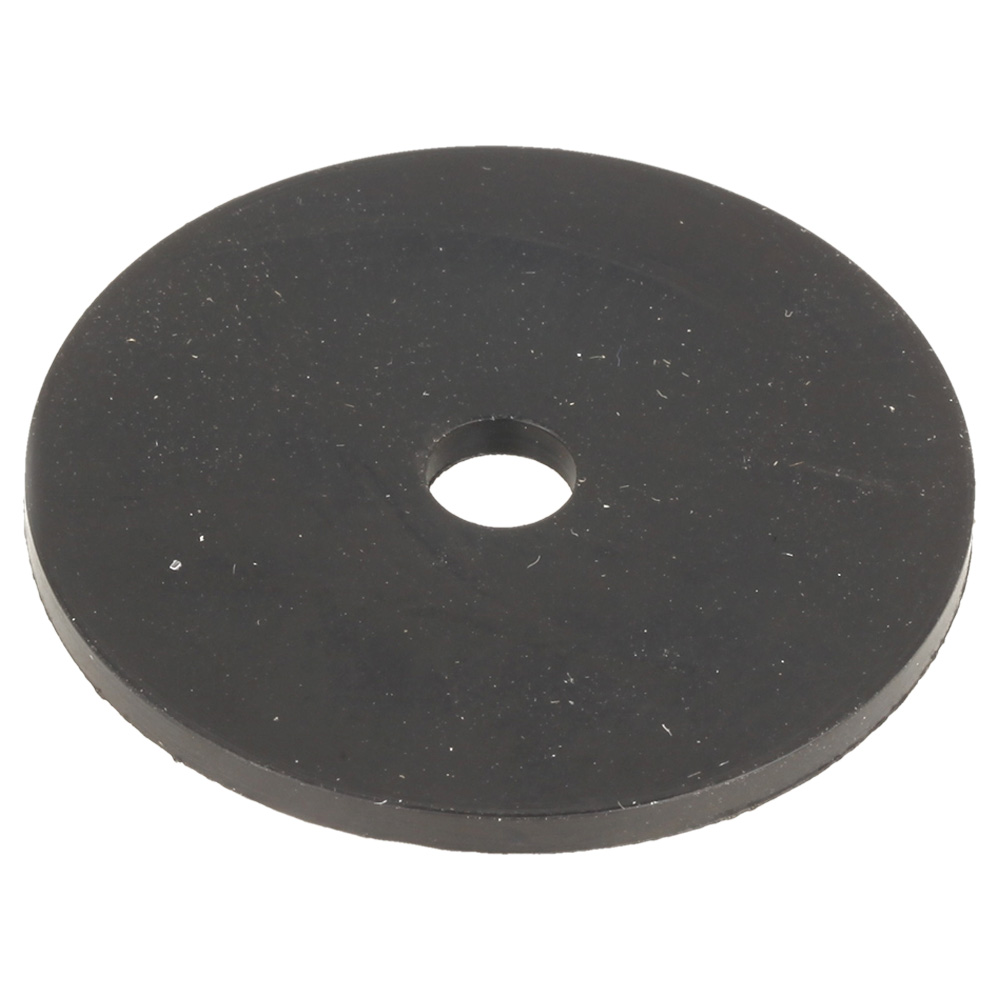

42	EF61070006R Available to backorder	Gasket	£2.22 £1.85
43	EF61070079AR Available to backorder	Tank Cap	£9.48 £7.90
44	EF61070105BR Available to backorder	Tank	£67.92 £56.60
46	EF3801002R Available to backorder	Screw	£1.08 £0.90
47	EF61070060 Available to backorder	Screw	£3.84 £3.20

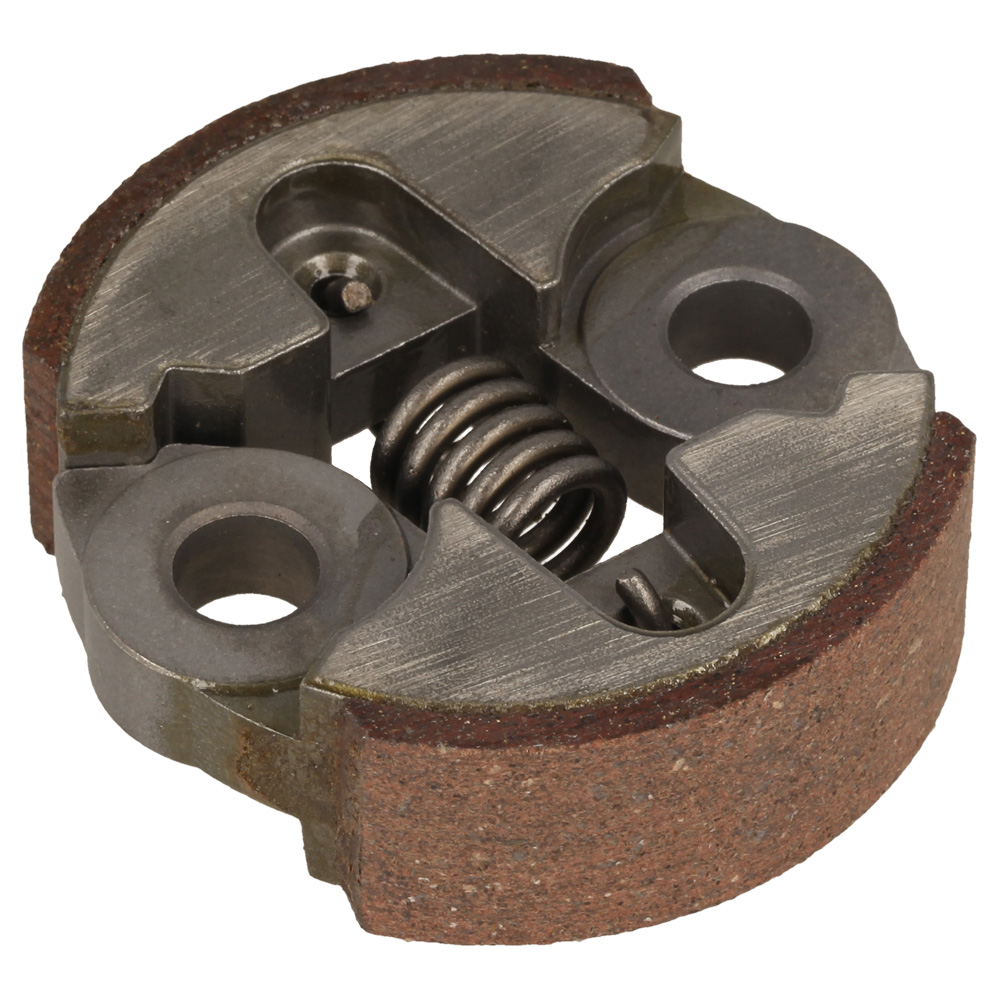

48	EF61070091AR In stock	Clutch	£47.60 £39.67
49	EF61070059 Available to backorder	Gasket	£3.01 £2.51
50	EF61070033 Available to backorder	Gasket	£3.01 £2.51
51	EF58040140AR Available to backorder	Muffler	£36.84 £30.70
52	EF61070055R Available to backorder	Plate	£5.28 £4.40
53	EF3806027 Available to backorder	Screw	£1.08 £0.90
54	EF61070026BR Available to backorder	Cover	£13.32 £11.10
55	EF4191069BR Available to backorder	Plate	£1.08 £0.90
56	EF3960030R Available to backorder	Screw	£2.45 £2.04
57	EF072700036A Available to backorder	Grommet	£5.64 £4.70

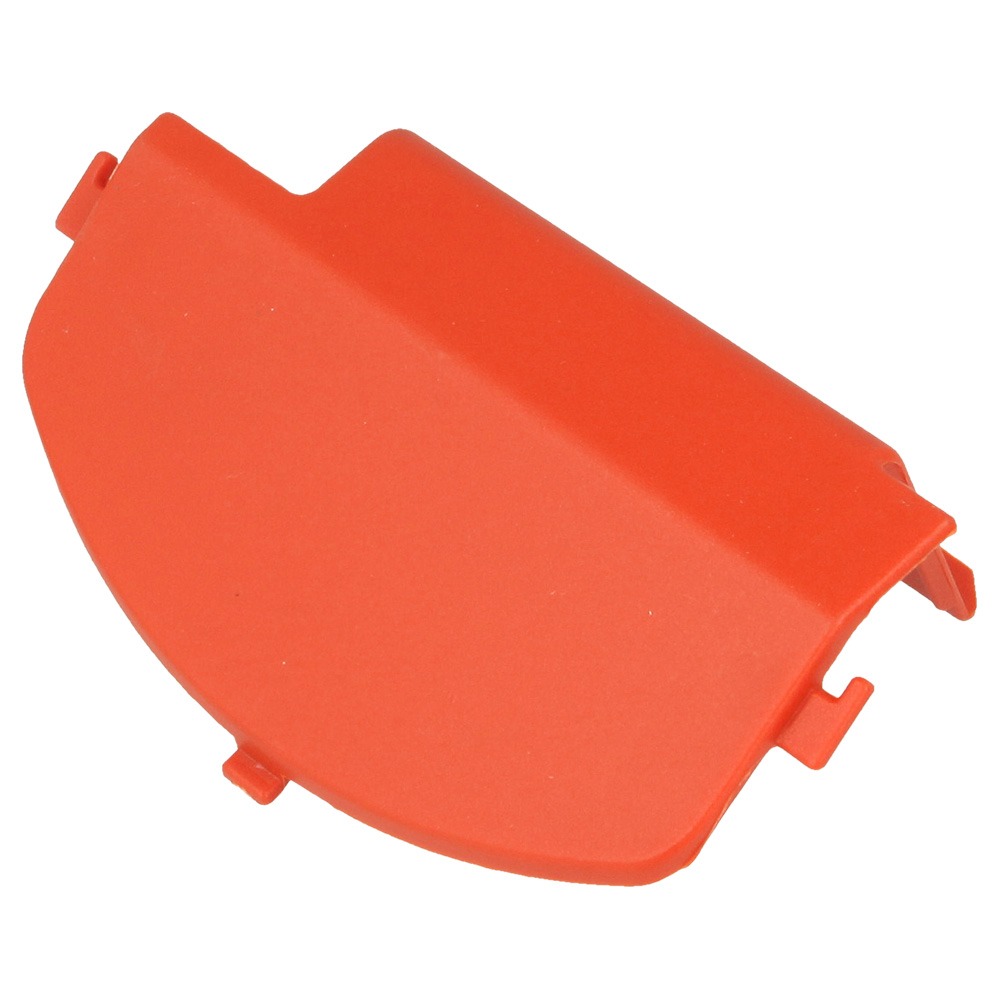

58	EF61070027A Available to backorder	Lock	£9.00 £7.50
59	EF61070067 Available to backorder	Ring	£1.08 £0.90
60	EF61070066 Available to backorder	Piston Pin	£9.00 £7.50
61	EF61070107 Available to backorder	Piston Assy	£93.24 £77.70
62	EF61070072A Available to backorder	Complete Cylinder Ø34	£186.96 £155.80
63	EF61070065R Available to backorder	Piston Ring	£13.20 £11.00
64	EF3055104R Available to backorder	Spark Plug	£9.00 £7.50
65	EF61070074 Available to backorder	Seal Ring	£9.00 £7.50
66	EF61070075 Available to backorder	Seal Ring	£9.00 £7.50
67	EF61070063 Available to backorder	Screw	£2.00 £1.67
68	EF61070061R Available to backorder	Crankcase	£104.76 £87.30
69	EF3025019 Available to backorder	Ring	£1.08 £0.90
70	EF61070070 Available to backorder	Key	£3.01 £2.51
71	EF50160140 Available to backorder	Spacer	£9.00 £7.50
72	EF61070076 Available to backorder	Bearing	£14.28 £11.90
73	EF61070062 Available to backorder	Gasket	£3.84 £3.20
74	EF3034009R Available to backorder	Bearing	£13.20 £11.00
75	EF61070069 Available to backorder	Crankshaft	£189.00 £157.50
76	EF61070073 Available to backorder	Plug	£2.00 £1.67
77	EF3918009R Available to backorder	Washer	£1.08 £0.90

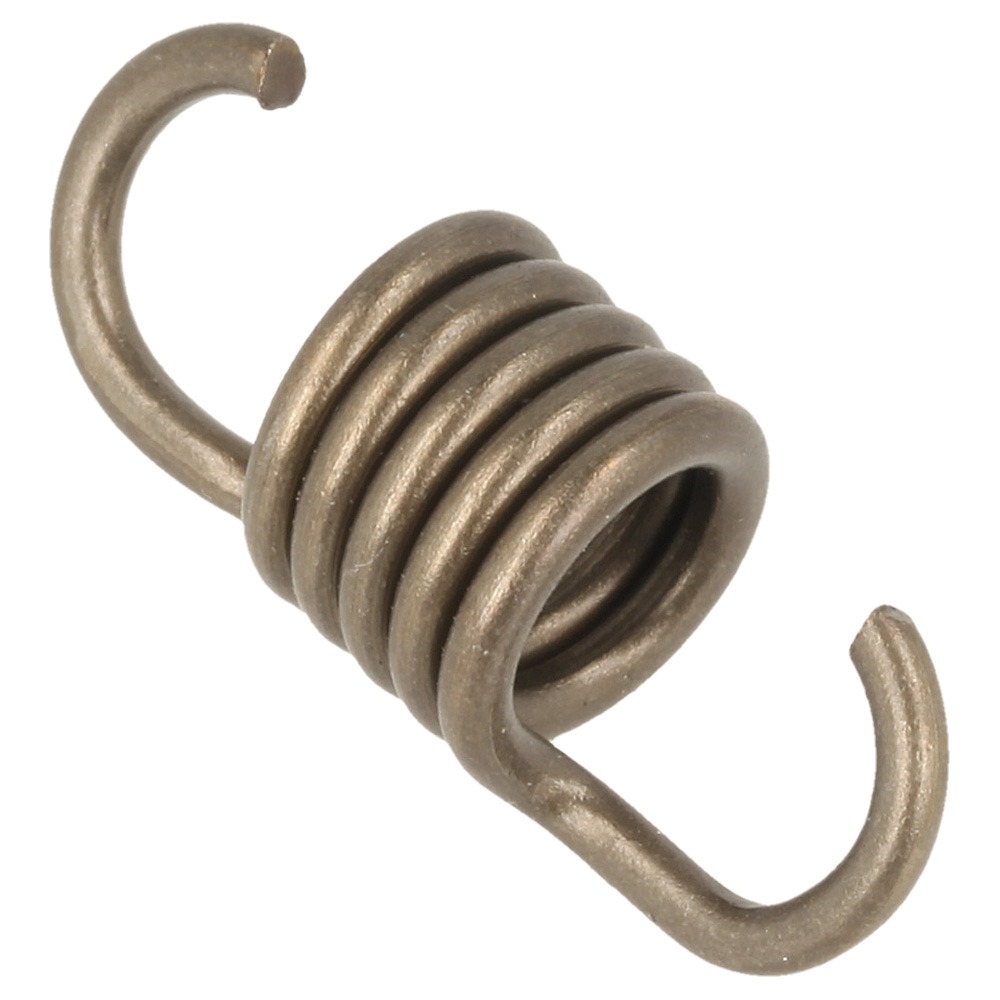

78	EF61070090R In stock	Spring	£3.98 £3.32
79	EF61370257 Available to backorder	Kit Pin + Belleville Washer + Spacer Ring	£5.64 £4.70
80	EF56010001 Available to backorder	Starter Case	£14.40 £12.00
81	EF3960074 Available to backorder	Screw	£2.83 £2.36
82	EF006000829 Available to backorder	Washer	£1.08 £0.90
83	EF61130060 Available to backorder	Gasket Set	£16.44 £13.70
84	EF56012014 Available to backorder	Screw	£0.82 £0.68
85	EF61072017 Available to backorder	Screw	£1.08 £0.90
86	EF56010017 Available to backorder	Labels Kit	£14.16 £11.80
