IP 2500 HS - - Efco Pressure Washer Water pump Diagram

Description

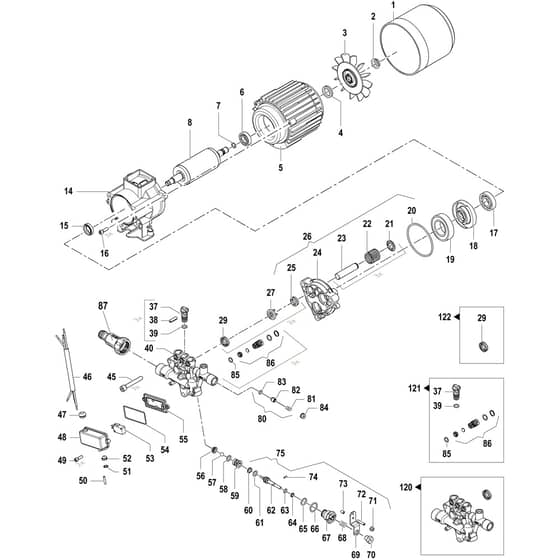

Efco IP 2500 HS Parts Diagram

Model Year -

	Part No.	Details
1	EFCH04660029 Available to backorder	Fan Cover	£10.20 £8.50
2	EFCH00090296 Available to backorder	Ring	£1.08 £0.90
3	EFCH36320083 Available to backorder	Motor Fan Kit	£5.64 £4.70
4	EFCH12410070 Available to backorder	Ring	£5.64 £4.70
6	EFCH04380090 Available to backorder	Bearing	£16.32 £13.60
7	EFCH12100420 Available to backorder	O-Ring	£1.08 £0.90
14	EFCH10090258B Available to backorder	Flange	£57.60 £48.00
15	EFCH00190118 Available to backorder	Seal Ring	£15.72 £13.10
16	EFCH36090114 Available to backorder	Screw	£1.08 £0.90
17	EFCH04380091 Available to backorder	Bearing	£23.28 £19.40
19	EFCH04360032 Available to backorder	Bearing	£37.80 £31.50
20	EFCH12100620 Available to backorder	O-Ring	£3.84 £3.20
21	EFCH00090317 Available to backorder	Ring	£1.08 £0.90
22	EFCH18020213 Available to backorder	Spring	£3.01 £2.51
23	EFCH24090127 Available to backorder	Piston	£13.44 £11.20
24	EFCH24320025 Available to backorder	Pump Crankcase	£30.72 £25.60
25	EFCH00190124 Available to backorder	Seal Ring	£5.64 £4.70
26	EFCH24320026 Available to backorder	Pump Crankcase	£109.80 £91.50
27	EFCH00090318 Available to backorder	Ring	£15.72 £13.10
37	EFCH12200069 Available to backorder	Valve	£2.00 £1.67
38	EFCH30210032 Available to backorder	Plug	£0.98 £0.82
45	EFCH36090191 Available to backorder	Screw	£3.01 £2.51
47	EFCH24340048 Available to backorder	Cable Holder	£3.01 £2.51
48	EFCH04020276 Available to backorder	Cover	£3.84 £3.20
49	EFCH36090198 Available to backorder	Screw	£1.08 £0.90
50	EFCH30050097 Available to backorder	Plug	£3.01 £2.51
51	EFCH00090229 Available to backorder	Ring	£9.00 £7.50
52	EFCH24160112 Available to backorder	Guard	£5.64 £4.70
53	EFCH18250020R Available to backorder	Switch	£19.56 £16.30
54	EFCH12100550 Available to backorder	O-Ring	£2.00 £1.67
55	EFCH04020290 Available to backorder	Half Case	£3.84 £3.20
56	EFCH30090141 Available to backorder	Seat	£5.64 £4.70
57	EFCH30030035 Available to backorder	Ball	£2.00 £1.67
58	EFCH12100152 Available to backorder	O-Ring	£1.08 £0.90
59	EFCH30090158 Available to backorder	Seat	£11.52 £9.60
60	EFCH00090112 Available to backorder	Ring	£1.08 £0.90
61	EFCH12100041 Available to backorder	O-Ring	£1.08 £0.90
62	EFCH00150194 Available to backorder	Easy Start Kit	£21.12 £17.60
63	EFCH12100055 Available to backorder	O-Ring	£1.08 £0.90
64	EFCH00090110 Available to backorder	Ring	£2.00 £1.67
66	EFCH12100390 Available to backorder	O-Ring	£1.08 £0.90
67	EFCH36050115 Available to backorder	Screw	£16.56 £13.80
68	EFCH18020249 Available to backorder	Spring	£5.64 £4.70
69	EFCH16000093 Available to backorder	Lever	£3.84 £3.20
70	EFCH32020241 Available to backorder	Screw	£12.24 £10.20
71	EFCH06040087 Available to backorder	Nut	£1.08 £0.90
72	EFCH36220047 Available to backorder	Total Stop Adjustable Nut	£2.56 £2.13
73	EFCH04320044 Available to backorder	Cap	£3.84 £3.20
74	EFCH30210035 Available to backorder	Plug	£2.00 £1.67
80	EFCH50270025 Available to backorder	Reed Valve Kit	£2.66 £2.22
81	EFCH18020284 Available to backorder	Spring	£1.08 £0.90
82	EFCH36000087 Available to backorder	Valve	£3.01 £2.51
83	EFCH12100220 Available to backorder	O-Ring	£1.08 £0.90
84	EFCH32020280 Available to backorder	Cap	£2.00 £1.67
85	EFCH12100465 Available to backorder	O-Ring	£1.08 £0.90
120	EFCH33000108 Available to backorder	Top Cover	£297.60 £248.00
