IC 2080 - - Efco Sprayer Tank Diagram

Name: IC 2080 - - Efco Sprayer Tank Diagram
SKU: ic_2080_tank-group
Price: 0.57 GBP
Availability: InStock

Description

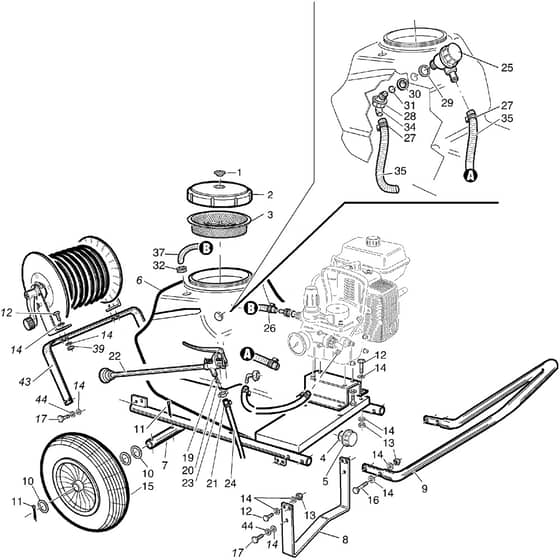

Efco IC 2080 Parts Diagram

Model Year -

	Part No.	Details
1	EFUU36000052R Available to backorder	Valve	£11.46 £9.55
2	EFUU04020084 Available to backorder	Cover	£37.08 £30.90
3	EFUU10020019R Available to backorder	Filter	£23.70 £19.75
5	EFU32020163F Available to backorder	Tank Cap	£9.36 £7.80
8	EFU24140088F Available to backorder	Stand	£66.76 £55.63
9	EFU18030052F Available to backorder	Handlebar	£123.60 £103.00
10	EFU28110039F Available to backorder	Washer	£4.14 £3.45
14	EFU28110016F Available to backorder	Washer	£0.68 £0.57
15	EFU12260219F Available to backorder	Wheel	£191.50 £159.58
16	EFU36070024F Available to backorder	Screw	£2.10 £1.75
17	EFU36070015F Available to backorder	Screw	£2.10 £1.75
19	EFU12090013F Available to backorder	O-Ring	£1.40 £1.17
20	EFU28020002F Available to backorder	Fitting	£6.66 £5.55
23	EFU12000038F Available to backorder	Nut	£6.66 £5.55
24	EFU32040042F Available to backorder	Tube	£6.66 £5.55
25	EFUR309733 Available to backorder	Filter	£22.20 £18.50
26	EFU10030090F Available to backorder	Band	£8.28 £6.90
27	EFU10030091F Available to backorder	Band	£8.92 £7.43
28	EFU12000069F Available to backorder	Ring Nut	£10.38 £8.65
30	EFU12170014F Available to backorder	Ring Nut	£6.66 £5.55
31	EF3049016R Available to backorder	O-Ring	£1.22 £1.02
32	EFU24200008F Available to backorder	Grommet	£6.66 £5.55
37	EFU32040123F Available to backorder	Tube	£11.74 £9.78
43	EFUR3002056400 Available to backorder	Support	£101.58 £84.65
44	EFU28080012F Available to backorder	Washer	£0.68 £0.57
