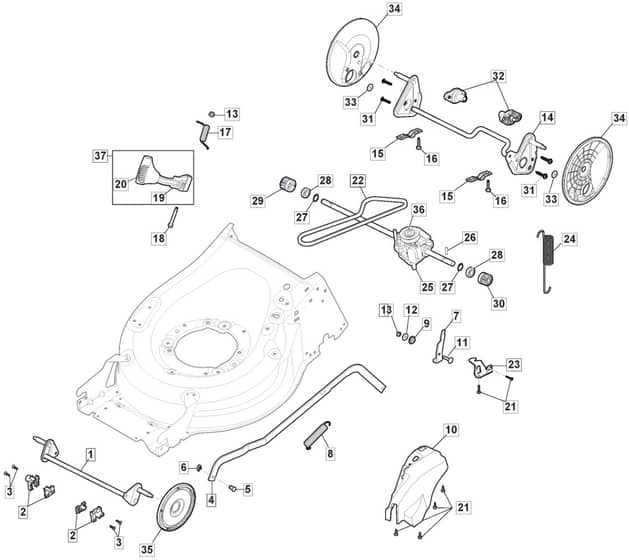

HW531 PD - 2019-2021 - 294556843/M19 - Mountfield Rotary Mower Height Adjusting Diagram

Name: HW531 PD - 2019-2021 - 294556843/M19 - Mountfield Rotary Mower Height Adjusting Diagram
SKU: hw531_pd_294556843_m19_height_adjusting-group
Price: 1.24 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

HW531 PD - 2019-2021 - 294556843/M19 - Mountfield Rotary Mower Height Adjusting Diagram

Description

Mountfield HW531 PD Parts Diagram

Product Name - HW 531 PD

Model Year - 2019-2021

Model Type - MP1 554 WSQ

Art.N - 294556843/M19

Engine Model - ST170 OHV Autochoke

Be the first to review this product

0 product questions

	Part No.	Details
1	MO381302915/0	Front Wheel Axle To S.N 20BA2WBH062001	Out of stock	£32.51 £27.09
1	MO381302915/1	Front Wheel Axle From S.N 20BA2WBH062002	Out of stock	£31.15 £25.96
1	MO381302883/0	Front Wheel Axle	Out of stock	£36.92 £30.77
2	MO322785305/1	Support	In stock	£2.58 £2.15

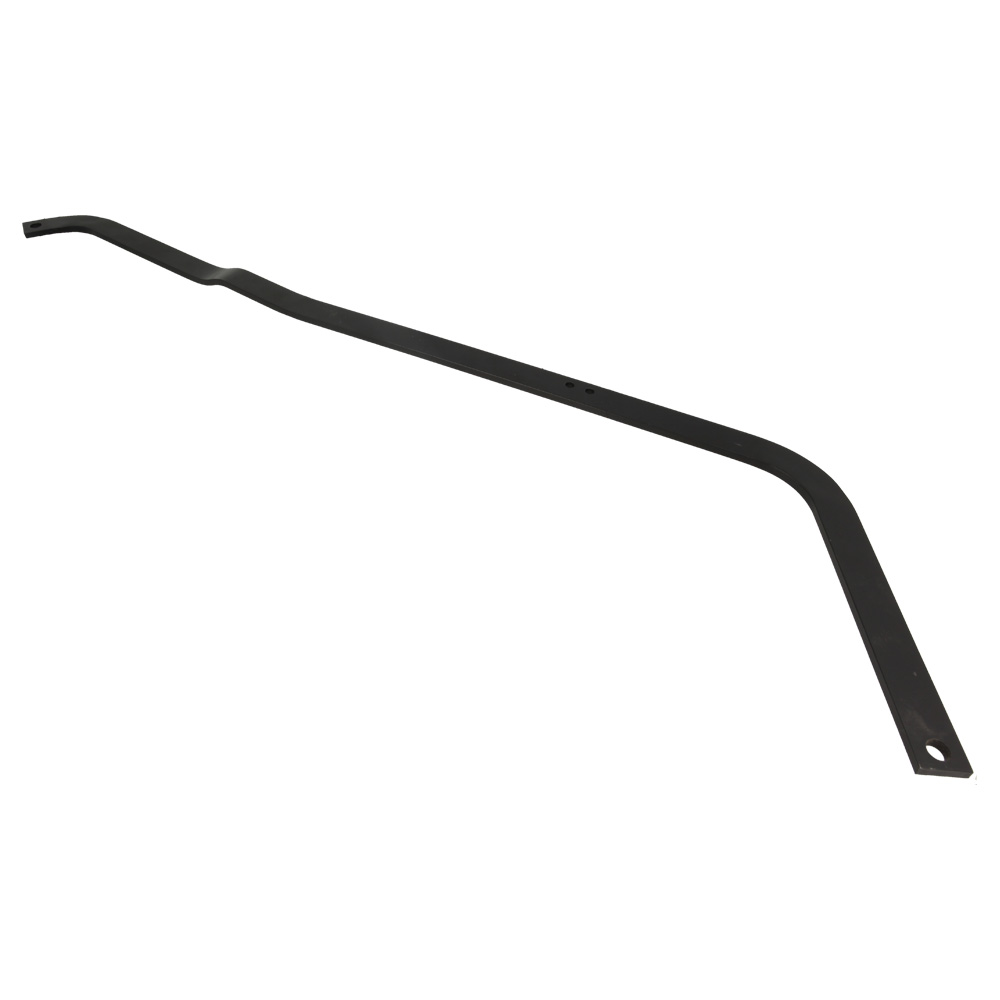

4	MO322869693/2	Wheels Control Rod From S.N 20BA2WBH072228	Out of stock	£32.38 £26.98
4	MO322869693/1	Wheels Control Rod	Out of stock	£33.86 £28.22
5	MO122519823/0	Pin	In stock	£2.17 £1.81
6	MO112436050/0	Plate	In stock	£1.75 £1.46
7	MO322778475/0	Bracket	Out of stock	£2.70 £2.25
8	MO122450480/0	Spring	Out of stock	£2.30 £1.92
9	MO122517873/0	Pin	Out of stock	£2.84 £2.37
10	MO322055330/0	Cover	Out of stock	£9.96 £8.30
11	MO112815270/0	Screw	Out of stock	£1.49 £1.24
12	MO112523040/0	Washer	In stock	£1.63 £1.36
13	MO112154510/0	Nut	In stock	£1.63 £1.36
14	MO381302887/1	Rear Wheel Axle From S.N 20BA2WBH072228	Out of stock	£23.02 £19.18
14	MO381302887/0	Rear Wheel Axle To S.N 20BA2WBH072227	Out of stock	£39.47 £32.89
15	MO322545152/0	Plate	Out of stock	£1.63 £1.36
17	MO122446192/0	Spring	Out of stock	£2.04 £1.70
18	MO122534131/0	Pin	Out of stock	£1.49 £1.24
19	MO381003418/0	Lever. Height Adjustment	Out of stock	£6.36 £5.30
20	MO322394506/0	Knob Standard Black	Out of stock	£1.63 £1.36
21	MO112728904/0	Screw	Out of stock	£1.49 £1.24
22	MO135064100/0	Belt To 31-8-2017	In stock	£8.88 £7.40
22	MO1111-9124-01	Drive Belt Stiga Packed into 135063902.1	Out of stock	£12.30 £10.25
22	MO135063902/1	Belt	Out of stock	£8.76 £7.30
23	MO322778473/1	Bracket	Out of stock	£2.04 £1.70
24	MO122450478/0	Spring	Out of stock	£8.53 £7.11
25	MO181003115/0	Gear Box	Out of stock	£119.87 £99.89
26	MO122753000/0	Pin	In stock	£1.63 £1.36
27	MO112608600/0	Seeger	Out of stock	£1.63 £1.36
28	MO119216035/0	Bearing	In stock	£3.24 £2.70
29	MO122570133/0	Right Pinion	In stock	£6.84 £5.70
30	MO122570134/0	Left Pinion	In stock	£6.84 £5.70
31	MO112728697/0	Screw	Out of stock	£1.63 £1.36
32	MO322042063/1	Bushing	In stock	£2.30 £1.92
33	MO112521371/0	Washer	Out of stock	£1.49 £1.24
34	MO322600208/0	Protection. Wheel	Out of stock	£4.20 £3.50
35	MO322600145/0	Protection. Wheel	Out of stock	£1.80 £1.50
36	MO122601909/0	Pulley	Out of stock	£5.16 £4.30
37	MO381003458/1	Height Adjust Lever D	Out of stock	£10.43 £8.69
