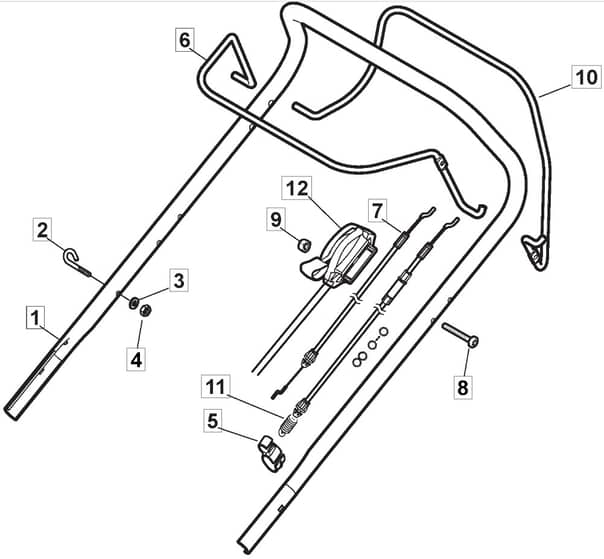

HW511 PD 4 in 1 - 2013-2014 - 295536043/M12 - Mountfield Rotary Mower Upper Handle Diagram

Name: HW511 PD 4 in 1 - 2013-2014 - 295536043/M12 - Mountfield Rotary Mower Upper Handle Diagram
SKU: hw511_pd_4_in_1_295536043_m12_upper_handle-group
Price: 1.29 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

HW511 PD 4 in 1 - 2013-2014 - 295536043/M12 - Mountfield Rotary Mower Upper Handle Diagram

Description

Mountfield HW511 PD 4 in 1 Parts Diagram

Product Name - HW 511 PD 4 in 1

Model Year - 2013-2014

Model Type - CRC 534 WS

Art.N - 295536043/M12

Be the first to review this product

0 product questions

	Part No.	Details
1	MO381006787/1 In stock	Handle	£39.42 £32.85
1	MO381006745/3 In stock	Handle	£38.52 £32.10
2	MO122430313/0 In stock	Guide Spring	£3.94 £3.28
3	MO112521330/0 Available to backorder	Washer	£1.55 £1.29
5	MO118390020/0 Available to backorder	Conduit Clip	£1.82 £1.52
6	MO181003363/1 Available to backorder	Lever	£14.92 £12.43
7	MO181030087/0 In stock	Cable. Thread Engine Brake	£13.44 £11.20
8	MO112727788/0 Available to backorder	Screw	£1.55 £1.29
9	MO112154510/0 In stock	Nut	£1.55 £1.29
10	MO181003364/0 In stock	Drive Control Lever Black	£15.20 £12.67
11	MO381030051/1 In stock	Cable Rear Drive	£17.17 £14.31
12	MO181005512/0 In stock	Throttle Cable L.1070	£22.93 £19.11
