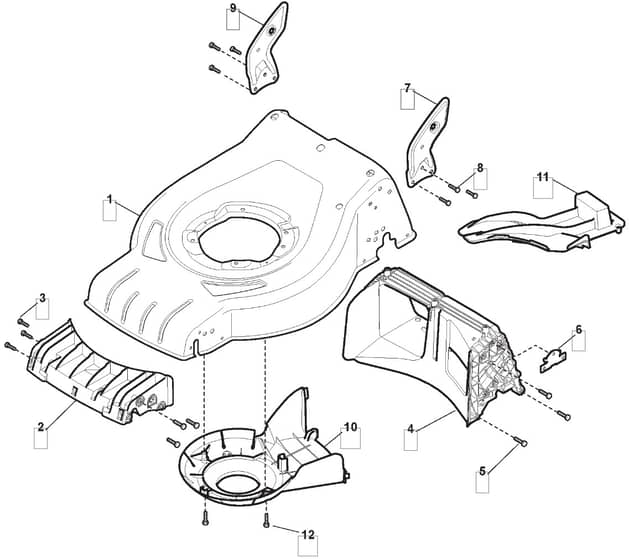

HW511 PD 4 in 1 - 2013-2014 - 295536043/M12 - Mountfield Rotary Mower Deck Diagram

HW511 PD 4 in 1 - 2013-2014 - 295536043/M12 - Mountfield Rotary Mower Deck Diagram
HW511 PD 4 in 1 - 2013-2014 - 295536043/M12 - Mountfield Rotary Mower Deck Diagram

Description

Mountfield HW511 PD 4 in 1 Parts Diagram

Product Name - HW 511 PD 4 in 1

Model Year - 2013-2014

Model Type - CRC 534 WS

Art.N - 295536043/M12

Ref. Img. Part No. Details
  1 Red Deck MO381004936/1
Red Deck
Out of stock
£203.17 £169.31

  2 Rear Conveyor Assy MO322108308/0
Rear Conveyor Assy
Out of stock
£13.55 £11.29

  4 Rear Conveyor Assy MO322108392/0
Rear Conveyor Assy
Out of stock
£19.63 £16.36

  5 Screw MO112728904/0
Screw
Out of stock
£1.49 £1.24

  6 Plate MO322545213/0
Plate
Out of stock
£1.90 £1.58

  7 Left Bracket Standard Black Knob To 31-8-2017 MO381005167/0
Left Bracket Standard Black Knob To 31-8-2017
Out of stock
£7.86 £6.55

  7 Left Bracket Standard Black Knob From 01-9-2017 MO381005167/1
Left Bracket Standard Black Knob From 01-9-2017
Out of stock
£7.86 £6.55

  8 Screw MO112727801/0
Screw
Out of stock
£1.49 £1.24

  9 Right Bracket Standard Black Knob To 31-8-2017 MO381005165/0
Right Bracket Standard Black Knob To 31-8-2017
Out of stock
£7.86 £6.55

  9 Right Bracket Standard Black Knob From 01-9-2017 MO381005165/1
Right Bracket Standard Black Knob From 01-9-2017
Out of stock
£7.45 £6.21

  10 Belt Protection MO322060250/1
Belt Protection
Out of stock
£9.84 £8.20

  11 Mulching Plug MO322140244/1
Mulching Plug
Out of stock
£14.88 £12.40

  12 Self-Tap Screw 4.8 X 25 Use 112728531.0 MO112728903/0
Self-Tap Screw 4.8 X 25 Use 112728531.0
In stock
£1.49 £1.24


Description

Mountfield HW511 PD 4 in 1 Parts Diagram

Product Name - HW 511 PD 4 in 1

Model Year - 2013-2014

Model Type - CRC 534 WS

Art.N - 295536043/M12
