HW461 PD ES - 2010 - 299482548/ADE - Mountfield Rotary Mower Transmission Diagram

Name: HW461 PD ES - 2010 - 299482548/ADE - Mountfield Rotary Mower Transmission Diagram
SKU: hw461_pd_es_299482548_ade_transmission-group
Price: 1.29 GBP
Availability: InStock

Part No. hw461_pd_es_299482548_ade_transmission-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

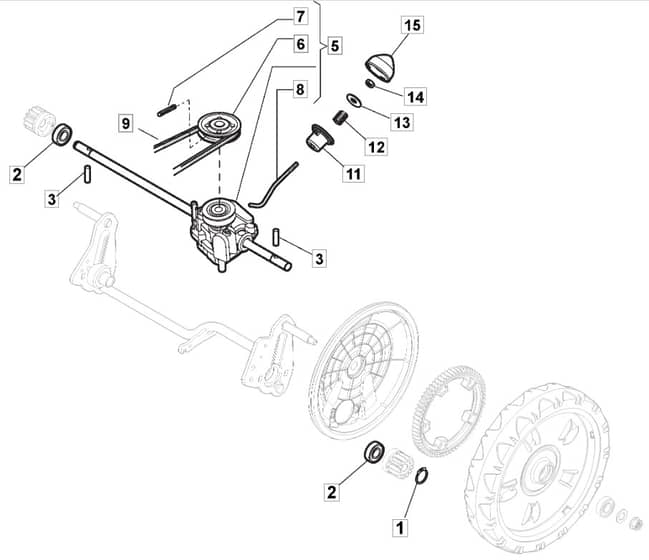

HW461 PD ES - 2010 - 299482548/ADE - Mountfield Rotary Mower Transmission Diagram

Description

Mountfield HW461 PD ES Parts Diagram

Product Name - HW 461 PD ES

Model Year - 2010

Model Type - NTL 484 W TR/E

Art.N - 299482548/ADE

	Part No.	Details
1	MO112608600/0 In stock	Seeger	£1.55 £1.29
2	MO119216035/0 In stock	Bearing	£3.52 £2.93
3	MO122753000/0 In stock	Pin	£1.55 £1.29
5	MO181003092/0 In stock	Gear Box To 31-8-2012	£63.96 £53.30
5	MO181003076/1 Available to backorder	Gear Box From 01-9-2012	£121.07 £100.89
6	MO122601909/0 In stock	Pulley	£5.65 £4.71
7	MO112645700/0 Available to backorder	Elastic Pin	£1.63 £1.36
8	MO122033283/0 In stock	Adjustment Rod	£4.64 £3.87
9	MO135063800/0 In stock	Trapezoidal Belt	£9.17 £7.64
9	MO1111-9123-01 In stock	Drive Belt Stiga Packed into 135063800.0	£9.17 £7.64
11	MO122041957/1 Available to backorder	Bushing	£1.55 £1.29
12	MO122450063/0 Available to backorder	Spring	£1.55 £1.29
13	MO322680009/0 Available to backorder	Washer	£1.84 £1.53
14	MO112154510/0 In stock	Nut	£1.55 £1.29
15	MO122110230/0 In stock	Hub Cover	£1.55 £1.29
