Husqvarna Zthe6125 - Seat

Husqvarna Zthe6125 - Seat

Part No. zthe6125_2002_01_seat-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Husqvarna Zthe6125 - Seat

Husqvarna Zthe6125 - Seat

Description

Husqvarna Zthe6125

Model Year - 2002-01

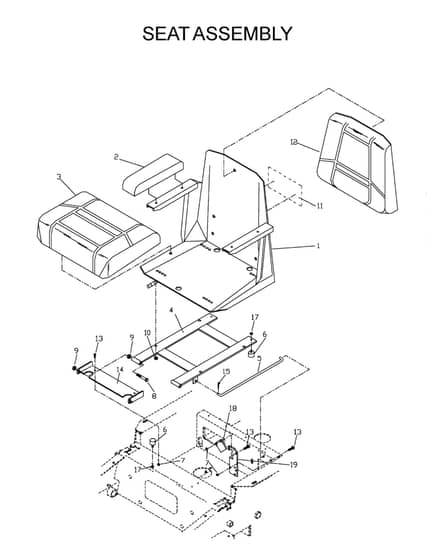

Seat - Parts Diagram

Ref.		Img.	Part No.	Details
	-1		HV539 10 25-39 Available to backorder	Seat Cushion		£297.14 £247.62
	0		HV539 99 03-65 Available to backorder	Pin Retaining Screw		£4.12 £3.43
	1		HV539 97 69-78 Available to backorder	Nut		£2.05 £1.71
	2		HV539 99 05-46 Available to backorder	Nut		£2.94 £2.45
	3		HV539 10 13-41 Available to backorder	Screw		£8.34 £6.95
	4		HV539 99 01-84 Available to backorder	Nut		£2.44 £2.03
	5		HV539 99 05-80 Available to backorder	Screw		£2.56 £2.13

Description

Husqvarna Zthe6125

Model Year - 2002-01

Seat - Parts Diagram
