Husqvarna Zth7226 Koa - Seat 2

Husqvarna Zth7226 Koa - Seat 2

Part No. zth7226_koa_2006_04_seat_2-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Husqvarna Zth7226 Koa - Seat 2

Husqvarna Zth7226 Koa - Seat 2

Description

Husqvarna Zth7226 Koa

Model Year - 2006-04

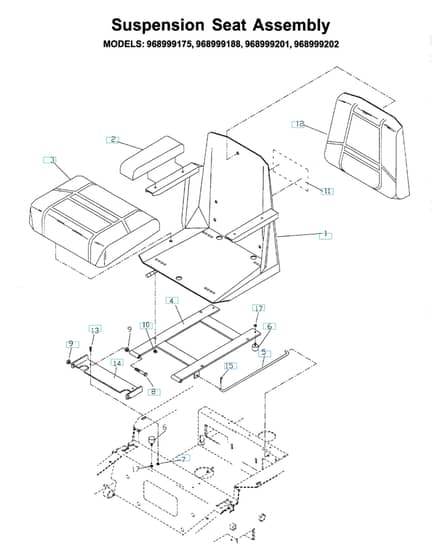

Seat 2 - Parts Diagram

Ref.		Img.	Part No.	Details
	8		HV539 10 13-41 Available to backorder	Screw		£8.34 £6.95
	9		HV539 99 05-46 Available to backorder	Nut		£2.94 £2.45
	13		HV539 99 05-80 Available to backorder	Screw		£2.56 £2.13
	15		HV539 99 03-65 Available to backorder	Pin Retaining Screw		£4.12 £3.43
	17		HV539 97 69-78 Available to backorder	Nut		£2.05 £1.71

Description

Husqvarna Zth7226 Koa

Model Year - 2006-04

Seat 2 - Parts Diagram
