Husqvarna Zth7226 Koa - Mower Lift & Deck Lift

Description

Husqvarna Zth7226 Koa

Model Year - 2006-04

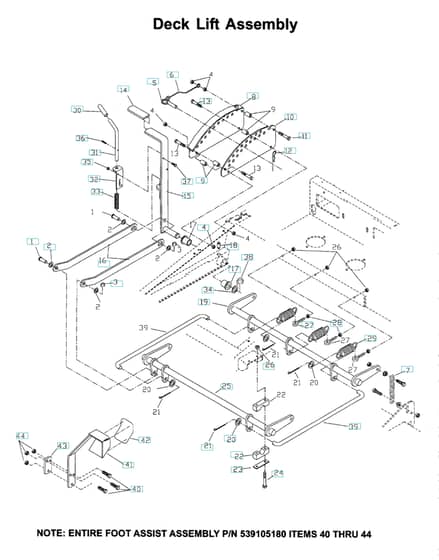

Mower Lift & Deck Lift - Parts Diagram

	Part No.	Details
2	HV539 99 10-43 Available to backorder	Bushing	£0.94 £0.78
4	HV539 99 05-46 Available to backorder	Nut	£2.94 £2.45
5	HV539 10 25-26 Available to backorder	Pin Retaining Screw	£12.18 £10.15
6	HV539 10 50-59 Available to backorder	Rope	£3.73 £3.11
20	HV539 97 69-82 Available to backorder	Washer	£4.86 £4.05
22	HV539 10 48-08 Available to backorder	Support	£12.82 £10.68
26	HV539 99 01-84 Available to backorder	Nut	£2.44 £2.03
28	HV539 99 05-85 Available to backorder	Nut	£2.69 £2.24
32	HV539 10 35-34 Available to backorder	Bracket	£13.46 £11.22
36	HV539 10 10-82 Available to backorder	Pin Retaining Screw	£4.50 £3.75
37	HV539 99 05-80 Available to backorder	Screw	£2.56 £2.13
40	HV539 99 06-55 Available to backorder	Screw	£7.06 £5.88
44	HV539 97 69-79 Available to backorder	Nut	£2.94 £2.45
