Husqvarna Zth6126 Koa - Fuel System 2

Husqvarna Zth6126 Koa - Fuel System 2

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Husqvarna Zth6126 Koa - Fuel System 2

Husqvarna Zth6126 Koa - Fuel System 2

Description

Husqvarna Zth6126 Koa

Model Year - 2006-04

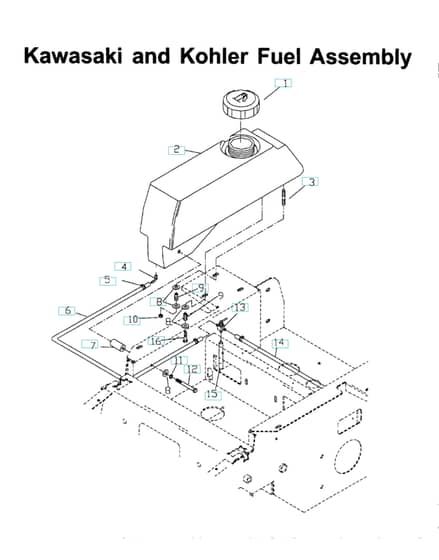

Fuel System 2 - Parts Diagram

Be the first to review this product

0 product questions

Ref.		Img.	Part No.	Details
	-1		HV539 10 44-09 Available to backorder	Tank Unit		£170.80 £142.33
	1		HV539 10 61-88 Available to backorder	Tank Cap - Anti		£25.44 £21.20
	4		HV539 10 26-50 Available to backorder	Connection		£7.76 £6.47
	5		HV539 91 22-22 Available to backorder	Clamp		£1.40 £1.17
	10		HV539 99 07-17 Available to backorder	Nut		£2.46 £2.05
	11		HV539 99 01-87 Available to backorder	Washer		£2.58 £2.15
	13		HV539 10 26-79 Available to backorder	Valve		£47.22 £39.35
	16		HV539 99 02-09 Available to backorder	Screw		£4.26 £3.55

Description

Husqvarna Zth6126 Koa

Model Year - 2006-04

Fuel System 2 - Parts Diagram
