ZTH 6126 KOA - Zero Turn Commercial Parts
Husqvarna Zth6126 Koa - Chassis & Frame

Husqvarna Zth6126 Koa - Chassis & Frame

Part No. zth6126_koa_2006_04_chassis_frame-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Husqvarna Zth6126 Koa - Chassis & Frame

Husqvarna Zth6126 Koa - Chassis & Frame

Description

Husqvarna Zth6126 Koa

Model Year - 2006-04

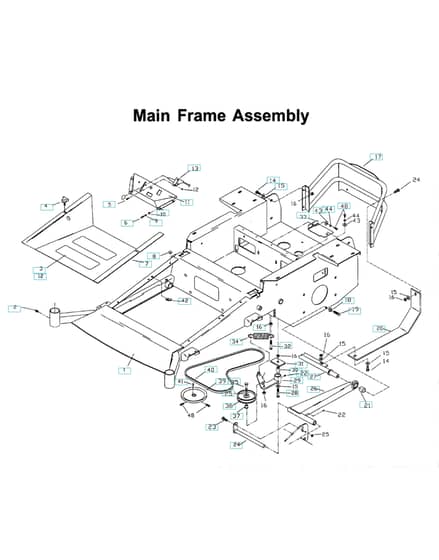

Chassis & Frame - Parts Diagram

Ref.		Img.	Part No.	Details
	2		HV539 10 14-74 Available to backorder	Nipple		£7.70 £6.42
	6		HV539 99 03-62 Available to backorder	Screw		£2.56 £2.13
	8		HV539 10 25-87 Available to backorder	Absorber		£8.56 £7.13
	12		HV539 97 69-77 Available to backorder	Nut		£1.79 £1.49
	13		HV539 10 27-32 Available to backorder	Throttle		£66.24 £55.20
	15		HV539 99 05-17 Available to backorder	Washer		£3.84 £3.20
	16		HV539 99 05-46 Available to backorder	Nut		£2.94 £2.45
	18		HV596 23 89-01 Available to backorder	Washer		£3.12 £2.60
	22		HV539 97 69-98 Available to backorder	Nipple		£6.01 £5.01
	23		HV539 97 69-34 Available to backorder	Screw		£3.59 £2.99
	25		HV539 99 01-84 Available to backorder	Nut		£2.44 £2.03
	28		HV539 10 34-33 Available to backorder	Screw		£10.90 £9.08
	30		HV539 10 34-27 Available to backorder	Bushing		£25.00 £20.83
	32		HV539 99 06-55 Available to backorder	Screw		£7.06 £5.88
	34		HV539 10 32-56 Available to backorder	Spring		£24.36 £20.30
	36		HV539 97 66-88 Available to backorder	Pulley		£59.47 £49.56
	39		HV539 10 11-76 Available to backorder	Pulley		£93.00 £77.50
	44		HV539 99 01-87 Available to backorder	Washer		£2.56 £2.13
	48		HV539 99 02-09 Available to backorder	Screw		£4.22 £3.52
