Husqvarna Zth6125 Koa - Fuel System 2

Husqvarna Zth6125 Koa - Fuel System 2

Part No. zth6125_koa_2006_04_fuel_system_2-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Husqvarna Zth6125 Koa - Fuel System 2

Husqvarna Zth6125 Koa - Fuel System 2

Description

Husqvarna Zth6125 Koa

Model Year - 2006-04

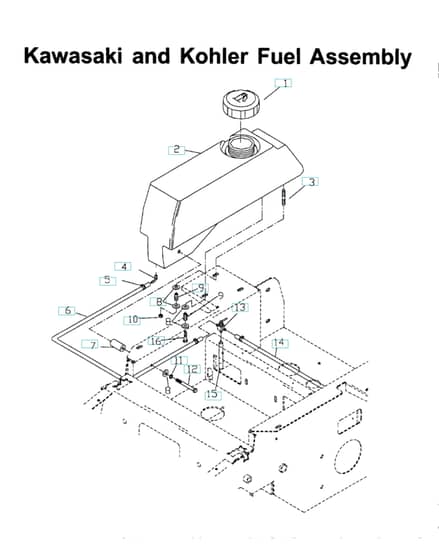

Fuel System 2 - Parts Diagram

Ref.		Img.	Part No.	Details
	-1		HV539 10 44-09 Available to backorder	Tank Unit		£163.56 £136.30
	1		HV539 10 61-88 Available to backorder	Tank Cap - Anti		£25.70 £21.42
	4		HV539 10 26-50 Available to backorder	Connection		£7.70 £6.42
	5		HV539 91 22-22 Available to backorder	Clamp		£1.40 £1.17
	10		HV539 99 07-17 Available to backorder	Nut		£2.44 £2.03
	11		HV539 99 01-87 Available to backorder	Washer		£2.56 £2.13
	13		HV539 10 26-79 Available to backorder	Valve		£46.80 £39.00
	16		HV539 99 02-09 Available to backorder	Screw		£4.22 £3.52

Description

Husqvarna Zth6125 Koa

Model Year - 2006-04

Fuel System 2 - Parts Diagram
