Husqvarna Zth5225Koa - Fuel System

Husqvarna Zth5225Koa - Fuel System

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Husqvarna Zth5225Koa - Fuel System

Husqvarna Zth5225Koa - Fuel System

Description

Husqvarna Zth5225Koa

Model Year - 2006-04

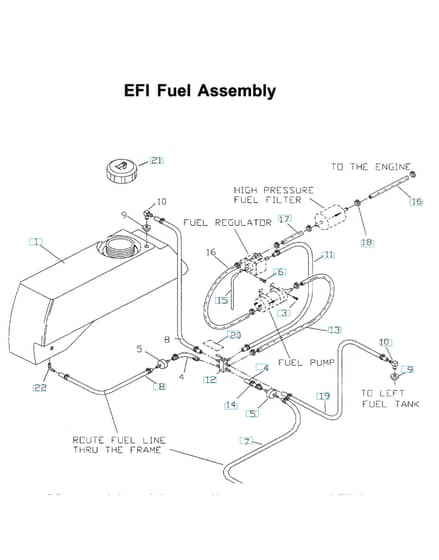

Fuel System - Parts Diagram

Be the first to review this product

0 product questions

Ref.		Img.	Part No.	Details
	10		HV539 10 52-44 Available to backorder	Joint		£12.28 £10.23
	14		HV539 91 22-22 Available to backorder	Clamp		£1.40 £1.17
	21		HV539 10 61-88 Available to backorder	Tank Cap - Anti		£25.44 £21.20
	22		HV539 10 26-50 Available to backorder	Connection		£7.76 £6.47

Description

Husqvarna Zth5225Koa

Model Year - 2006-04

Fuel System - Parts Diagram
