ZTH 5225 KAA - Zero Turn Commercial Parts
Husqvarna Zth5225Kaa - Engine 2

Husqvarna Zth5225Kaa - Engine 2

Part No. zth5225kaa_2006_04_engine_2-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Husqvarna Zth5225Kaa - Engine 2

Husqvarna Zth5225Kaa - Engine 2

Description

Husqvarna Zth5225Kaa

Model Year - 2006-04

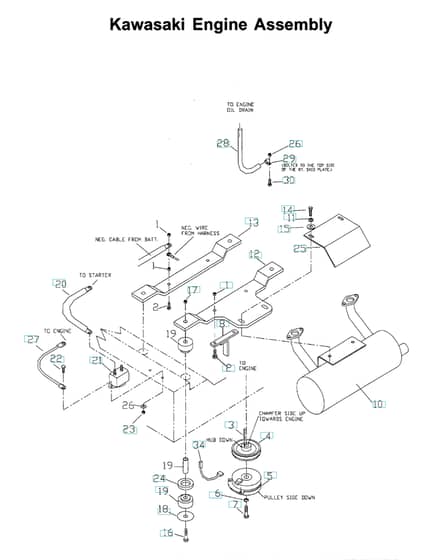

Engine 2 - Parts Diagram

Ref.		Img.	Part No.	Details
	-1		HV539 10 27-33 Available to backorder	Wire		£73.08 £60.90
	0		HV539 10 27-59 Available to backorder	Insulator		£5.41 £4.51
	1		HV539 99 01-84 Available to backorder	Nut		£2.44 £2.03
	2		HV539 99 06-69 Available to backorder	Screw		£6.29 £5.24
	5		HV539 10 54-06 Available to backorder	Clutch		£462.61 £385.51
	6		HV596 23 89-01 Available to backorder	Washer		£3.12 £2.60
	10		HV539 10 58-97 Available to backorder	Muffler		£445.52 £371.27
	11		HV539 99 01-87 Available to backorder	Washer		£2.56 £2.13
	14		HV539 97 69-34 Available to backorder	Screw		£3.59 £2.99
	16		HV539 10 34-33 Available to backorder	Screw		£10.90 £9.08
	17		HV539 10 13-31 Available to backorder	Nut		£5.78 £4.82
	18		HV539 10 49-59 Available to backorder	Washer		£16.66 £13.88
	19		HV539 10 49-58 Available to backorder	Insulator		£60.60 £50.50
	21		HV539 10 17-14 Available to backorder	Solenoid		£22.55 £18.79
	24		HV539 10 50-34 Available to backorder	Spacer		£11.75 £9.79
	30		HV539 99 05-80 Available to backorder	Screw		£2.56 £2.13
	34		HV539 10 56-37 Available to backorder	Harness		£35.83 £29.86
