ZTH 5223 KOLA - Zero Turn Commercial Parts
Husqvarna Zth5223Kola - Handle & Controls

Husqvarna Zth5223Kola - Handle & Controls

Part No. zth5223kola_2002_10_handle_controls-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Husqvarna Zth5223Kola - Handle & Controls

Husqvarna Zth5223Kola - Handle & Controls

Description

Husqvarna Zth5223Kola

Model Year - 2002-10

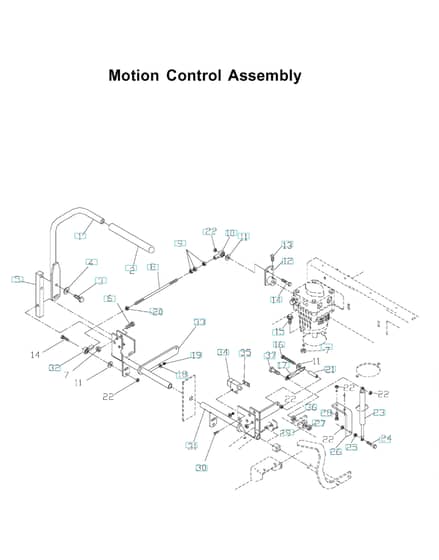

Handle & Controls - Parts Diagram

Ref.		Img.	Part No.	Details
	6		HV539 99 06-55 Available to backorder	Screw		£7.06 £5.88
	7		HV539 99 05-46 Available to backorder	Nut		£2.94 £2.45
	9		HV539 99 02-23 Available to backorder	Nut		£2.30 £1.92
	14		HV539 99 02-09 Available to backorder	Screw		£4.22 £3.52
	15		HV539 99 05-82 Available to backorder	Screw		£7.06 £5.88
	17		HV539 10 32-97 Available to backorder	Spring		£10.26 £8.55
	19		HV539 97 69-98 Available to backorder	Nipple		£6.01 £5.01
	22		HV539 99 01-84 Available to backorder	Nut		£2.44 £2.03
	23		HV539 10 27-20 Available to backorder	Gas Spring		£37.15 £30.96
	24		HV539 99 06-27 Available to backorder	Screw		£5.02 £4.18
	25		HV539 99 05-85 Available to backorder	Nut		£2.69 £2.24
	27		HV539 97 69-79 Available to backorder	Nut		£2.94 £2.45
	28		HV539 97 69-34 Available to backorder	Screw		£3.59 £2.99
	29		HV539 99 05-17 Available to backorder	Washer		£3.84 £3.20
	34		HV539 10 10-80 Available to backorder	Switch		£18.24 £15.20
	35		HV539 10 26-78 Available to backorder	Plate		£7.06 £5.88
	37		HV539 99 05-88 Available to backorder	Screw		£7.06 £5.88
