Husqvarna Zth 5221 Kaa - Parking Brake

Husqvarna Zth 5221 Kaa - Parking Brake

Part No. zth_5221_kaa_2006_04_parking_brake-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Husqvarna Zth 5221 Kaa - Parking Brake

Husqvarna Zth 5221 Kaa - Parking Brake

Description

Husqvarna Zth 5221 Kaa

Model Year - 2006-04

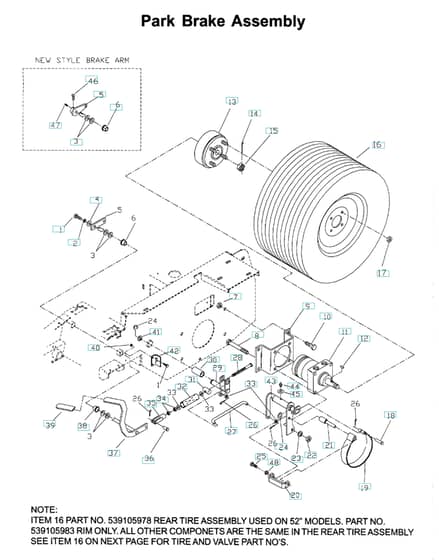

Parking Brake - Parts Diagram

Ref.		Img.	Part No.	Details
	1		HV539 99 05-80 Available to backorder	Screw		£2.56 £2.13
	0		HV539 10 54-87 Available to backorder	Rim Sprocket		£189.36 £157.80
	1		HV539 10 51-52 Available to backorder	Tire		£270.24 £225.20
	2		HV539 99 05-46 Available to backorder	Nut		£2.94 £2.45
	7		HV539 10 13-31 Available to backorder	Nut		£5.78 £4.82
	11		HV539 10 44-17 Available to backorder	Engine		£1,141.87 £951.56
	14		HV539 99 02-97 Available to backorder	Split Pin		£0.77 £0.64
	15		HV539 10 52-77 Available to backorder	Nut		£32.04 £26.70
	17		HV539 10 11-73 Available to backorder	Nut		£5.78 £4.82
	22		HV539 99 02-58 Available to backorder	Nut		£5.02 £4.18
	23		HV539 99 02-54 Available to backorder	Washer		£3.59 £2.99
	26		HV539 99 03-65 Available to backorder	Pin Retaining Screw		£4.12 £3.43
	33		HV539 99 01-22 Available to backorder	Washer		£2.83 £2.36
	34		HV539 99 01-55 Available to backorder	Nut		£2.69 £2.24
	35		HV539 97 74-65 Available to backorder	Bracket		£19.88 £16.57
	44		HV539 97 69-98 Available to backorder	Nipple		£6.01 £5.01
	48		HV539 99 01-18 Available to backorder	Washer		£2.54 £2.12

Description

Husqvarna Zth 5221 Kaa

Model Year - 2006-04

Parking Brake - Parts Diagram
