Husqvarna Z560 X - Mower Deck & Cutting Deck

Name: Husqvarna Z560 X - Mower Deck & Cutting Deck
SKU: z560_x_mower_deck_cutting_deck-group
Price: 1.71 GBP
Availability: InStock

Part No. z560_x_mower_deck_cutting_deck-group

Description

Husqvarna Z560 X

Model Year -

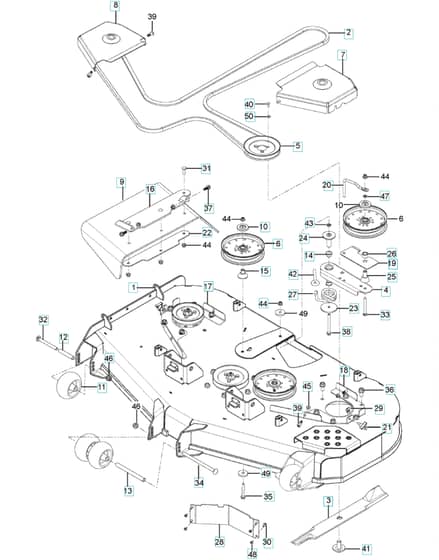

Mower Deck & Cutting Deck - Parts Diagram

	Part No.	Details
2	HV588 26 48-01 Available to backorder	Belt	£159.36 £132.80
3	HV539 10 57-11 Available to backorder	Bladeheavy Duty Blade Na Market ''High Lift''	£60.36 £50.30
3	HV592 89 49-01 Available to backorder	Blademid Lift W/Holes Normally For Eu Market	£54.00 £45.00
6	HV510 01 51-01 Available to backorder	Pulley	£90.96 £75.80
11	HV574 16 96-01 Available to backorder	Roller	£32.68 £27.23
12	HV574 19 64-01 Available to backorder	Tube	£25.64 £21.37
14	HV539 13 15-18 Available to backorder	Bearing	£8.98 £7.48
32	HV510 02 23-01 Available to backorder	Screw	£28.84 £24.03
41	HV539 11 90-07 Available to backorder	Screw	£23.08 £19.23
45	HV539 11 28-99 Available to backorder	Nut. 5/16-18. Nyloc	£2.69 £2.24
46	HV521 99 11-01 Available to backorder	Nut	£7.06 £5.88
48	HV539 97 69-78 Available to backorder	Nut	£2.05 £1.71
49	HV539 10 65-04 Available to backorder	Washer	£6.40 £5.33
