Husqvarna Z560 X - Fuel System 2

Husqvarna Z560 X - Fuel System 2

Description

Husqvarna Z560 X

Model Year -

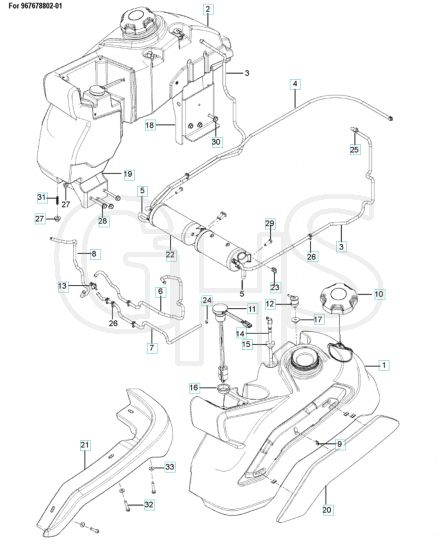

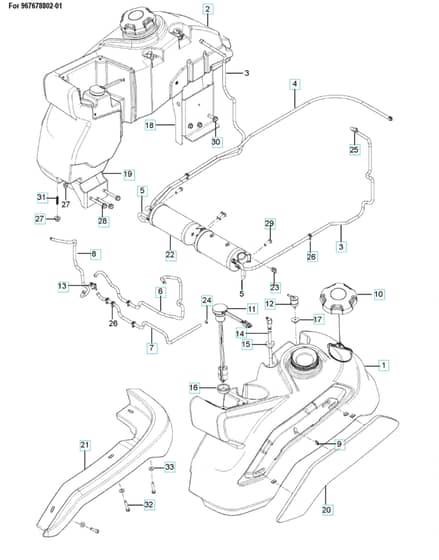

Fuel System 2 - Parts Diagram

Be the first to review this product

0 product questions

Ref.		Img.	Part No.	Details
	10		HV575 01 81-01 Available to backorder	Cap		£47.16 £39.30
	12		HV576 61 81-01 Available to backorder	Tank Vent		£14.88 £12.40
	13		HV539 10 26-79 Available to backorder	Valve		£47.22 £39.35
	15		HV532 00 36-45 Available to backorder	Bushing		£5.04 £4.20
	23		HV532 17 48-14 Available to backorder	Nut		£2.06 £1.72
	24		HV539 91 22-22 Available to backorder	Clamp		£1.40 £1.17
	27		HV539 11 28-99 Available to backorder	Nut. 5/16-18. Nyloc		£2.72 £2.27

Description

Husqvarna Z560 X

Model Year -

Fuel System 2 - Parts Diagram
