Husqvarna Z560 - Steering

Part No. z560_2019_12_steering-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

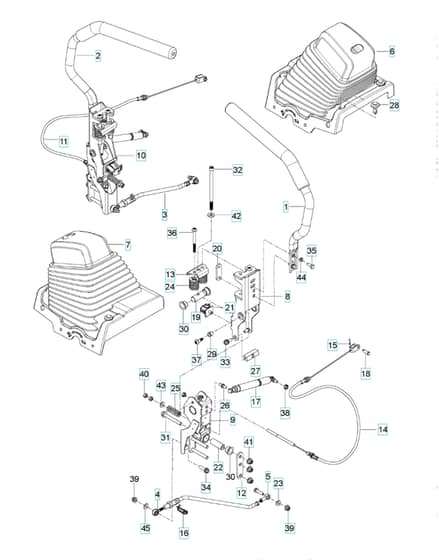

Husqvarna Z560 - Steering

Husqvarna Z560 - Steering

Description

Husqvarna Z560

Model Year - 2019-12

Steering - Parts Diagram

Ref.		Img.	Part No.	Details
	14		HV582 47 75-01 Available to backorder	Cable		£44.86 £37.38
	18		HV582 47 74-01 Available to backorder	Pin		£7.06 £5.88
	25		HV532 15 13-32 Available to backorder	Spring		£7.06 £5.88
	30		HV539 13 15-18 Available to backorder	Bearing		£8.98 £7.48
	31		HV577 11 77-01 Available to backorder	Screw		£3.56 £2.97
	35		HV539 97 69-34 Available to backorder	Screw		£3.59 £2.99
	38		HV539 99 01-84 Available to backorder	Nut		£2.44 £2.03
	39		HV539 11 28-99 Available to backorder	Nut. 5/16-18. Nyloc		£2.69 £2.24
	40		HV539 99 02-23 Available to backorder	Nut		£2.30 £1.92
	44		HV539 99 01-87 Available to backorder	Washer		£2.56 £2.13

Description

Husqvarna Z560

Model Year - 2019-12

Steering - Parts Diagram
