Husqvarna Ythk180 - Chassis & Enclosures

Husqvarna Ythk180 - Chassis & Enclosures

Part No. ythk180_1996_01_chassis_enclosures-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

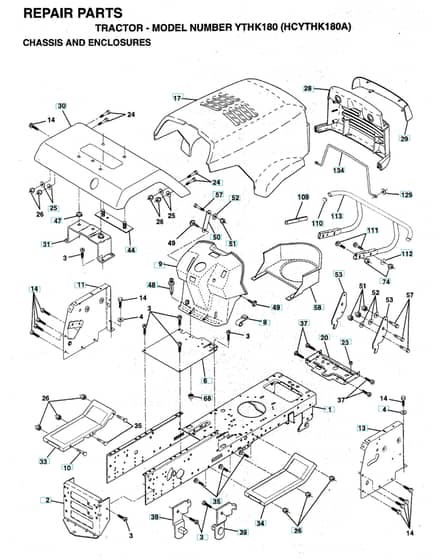

Husqvarna Ythk180 - Chassis & Enclosures

Husqvarna Ythk180 - Chassis & Enclosures

Description

Husqvarna Ythk180

Model Year - 1996-01

Chassis & Enclosures - Parts Diagram

Ref.		Img.	Part No.	Details
	8		HV532 12 64-71 Available to backorder	Clip		£0.90 £0.75
	14		HV817 49 06-08 Available to backorder	Screw		£5.24 £4.37
	24		HV874 78 06-16 Available to backorder	Bolt		£6.29 £5.24
	37		HV817 49 05-08 Available to backorder	Screw		£3.59 £2.99
	38		HV532 13 98-86 Available to backorder	Bracket		£8.45 £7.04
	44		HV532 14 06-75 Available to backorder	Strap		£8.34 £6.95
	52		HV819 09 14-16 Available to backorder	Washer		£3.07 £2.56
	74		HV596 32 26-01 Available to backorder	Nut		£3.83 £3.19

Description

Husqvarna Ythk180

Model Year - 1996-01

Chassis & Enclosures - Parts Diagram
