Husqvarna Ythk1746B - Mower Lift & Deck Lift

Name: Husqvarna Ythk1746B - Mower Lift & Deck Lift
SKU: ythk1746b_2002_02_mower_lift_deck_lift-group
Price: 0.64 GBP
Availability: InStock

Part No. ythk1746b_2002_02_mower_lift_deck_lift-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Husqvarna Ythk1746B - Mower Lift & Deck Lift

Description

Husqvarna Ythk1746B

Model Year - 2002-02

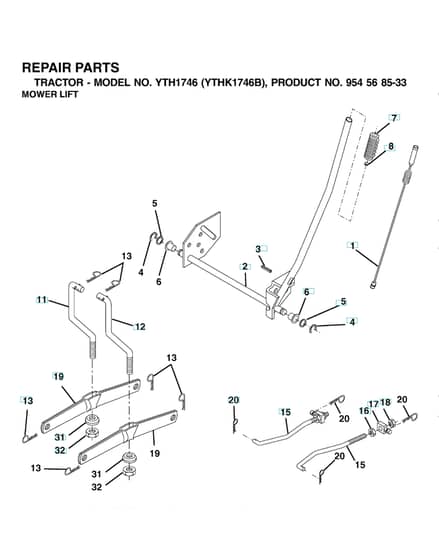

Mower Lift & Deck Lift - Parts Diagram

	Part No.	Details
1	HV532 15 94-60 Available to backorder	Wire	£26.11 £21.76
2	HV532 15 94-71 Available to backorder	Lever	£77.16 £64.30
3	HV532 10 57-67 In stock	Pin Retaining Screw	Was £7.60 £6.33 Special Price £4.88 £4.07
4	HV812 00 00-02 Available to backorder	Retainer Ring	£0.77 £0.64
5	HV819 21 16-21 Available to backorder	Washer	£2.30 £1.92
6	HV532 12 01-83 Available to backorder	Bearing	£6.29 £5.24
7	HV532 12 56-31 Available to backorder	Handle	£12.82 £10.68
15	HV532 17 32-88 Available to backorder	Link	£15.35 £12.79
16	HV596 43 34-01 In stock	Nut	Was £3.43 £2.86 Special Price £2.50 £2.08
19	HV532 13 98-68 Available to backorder	Lever	£18.60 £15.50
