Husqvarna Yth2548B - Chassis & Enclosures

Husqvarna Yth2548B - Chassis & Enclosures

Part No. yth2548b_2004_06_chassis_enclosures-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Husqvarna Yth2548B - Chassis & Enclosures

Husqvarna Yth2548B - Chassis & Enclosures

Description

Husqvarna Yth2548B

Model Year - 2004-06

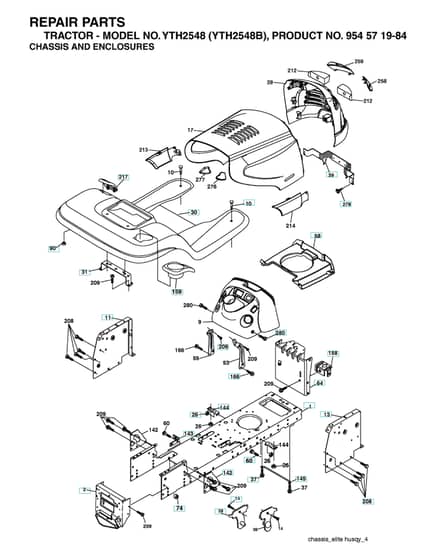

Chassis & Enclosures - Parts Diagram

Ref.		Img.	Part No.	Details
	1		HV532 17 46-19 Available to backorder	Frame		£370.08 £308.40
	2		HV532 17 65-54 Available to backorder	Plate		£42.80 £35.67
	14		HV817 49 06-08 Available to backorder	Screw		£5.24 £4.37
	37		HV817 49 05-08 Available to backorder	Screw		£3.59 £2.99
	38		HV532 17 57-10 Available to backorder	Bracket		£17.94 £14.95
	74		HV596 32 26-01 Available to backorder	Nut		£3.83 £3.19
	142		HV532 17 57-02 Available to backorder	Plate		£6.23 £5.19
	143		HV532 18 66-89 Available to backorder	Bracket		£10.26 £8.55
	208		HV817 67 06-08 Available to backorder	Screw		£5.24 £4.37
	209		HV817 00 06-12 Available to backorder	Screw		£5.78 £4.82

Description

Husqvarna Yth2548B

Model Year - 2004-06

Chassis & Enclosures - Parts Diagram
