Husqvarna Yth2546 Td - Chassis & Enclosures

Description

Husqvarna Yth2546 Td

Model Year - 2009-04

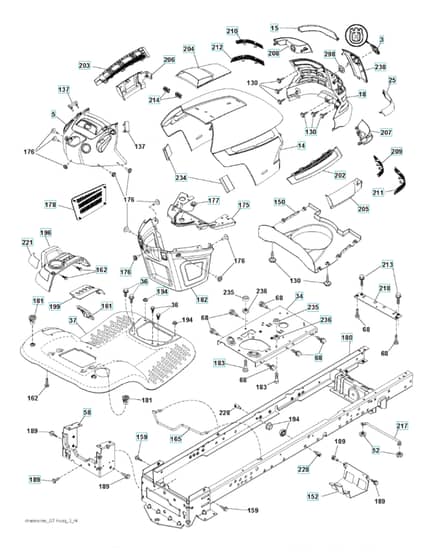

Chassis & Enclosures - Parts Diagram

	Part No.	Details
14	HV532 41 10-46 Available to backorder	Hood	£202.68 £168.90
15	HV532 19 89-07 Available to backorder	Lens	£18.60 £15.50
18	HV532 40 86-07 Available to backorder	Front Cover	£118.92 £99.10
25	HV532 19 89-06 Available to backorder	Lens	£18.60 £15.50
68	HV817 49 05-08 Available to backorder	Screw	£3.59 £2.99
130	HV532 41 63-58 Available to backorder	Screw	£2.05 £1.71
137	HV532 40 75-90 Available to backorder	Damping Piece	£5.90 £4.92
152	HV532 19 95-35 Available to backorder	Shield	£48.07 £40.06
159	HV817 00 06-12 Available to backorder	Screw	£5.78 £4.82
161	HV532 40 18-26 Available to backorder	Console	£8.98 £7.48
162	HV532 14 24-32 Available to backorder	Screw	£2.30 £1.92
176	HV532 40 07-76 Available to backorder	Screw	£2.05 £1.71
177	HV532 19 52-27 Available to backorder	Bushing	£11.09 £9.24
178	HV532 19 97-82 Available to backorder	Net	£28.84 £24.03
180	HV532 41 50-64 Available to backorder	Frame	£158.04 £131.70
182	HV532 40 68-59 Available to backorder	Dash	£161.04 £134.20
194	HV873 90 05-00 Available to backorder	Nut	£2.69 £2.24
203	HV532 40 30-76 Available to backorder	List	£8.09 £6.74
206	HV532 40 17-11 Available to backorder	List	£9.11 £7.59
208	HV532 19 71-99 Available to backorder	Lens	£27.55 £22.96
214	HV532 19 91-45 Available to backorder	Clip	£0.90 £0.75
221	HV532 19 89-09 Available to backorder	Lens	£17.32 £14.43
228	HV532 19 51-61 Available to backorder	Stud	£2.94 £2.45
234	HV532 40 47-42 Available to backorder	Damping Piece	£12.18 £10.15
235	HV532 40 61-29 Available to backorder	Spacer	£9.25 £7.71
236	HV873 93 05-00 Available to backorder	Nut	£2.30 £1.92
298	HV532 11 04-52 Available to backorder	Nut	£2.09 £1.74
