Husqvarna Yth2448 - Mower Lift & Deck Lift

Description

Husqvarna Yth2448

Model Year - 2005-09

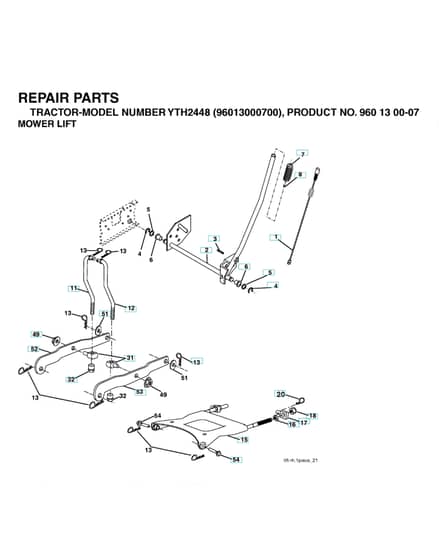

Mower Lift & Deck Lift - Parts Diagram

	Part No.	Details
1	HV532 15 94-60 Available to backorder	Wire	£26.11 £21.76
2	HV532 15 94-71 Available to backorder	Lever	£77.16 £64.30
3	HV532 10 57-67 In stock	Pin Retaining Screw	Was £7.60 £6.33 Special Price £4.88 £4.07
4	HV812 00 00-02 Available to backorder	Retainer Ring	£0.77 £0.64
5	HV819 21 16-21 Available to backorder	Washer	£2.30 £1.92
6	HV532 12 01-83 Available to backorder	Bearing	£6.29 £5.24
7	HV532 12 56-31 Available to backorder	Handle	£12.82 £10.68
12	HV532 17 53-71 Available to backorder	Link	£14.05 £11.71
15	HV532 17 55-62 Available to backorder	Bracket	£84.84 £70.70
16	HV596 43 34-01 In stock	Nut	Was £3.43 £2.86 Special Price £2.50 £2.08
31	HV532 17 62-05 Available to backorder	Trunion	£8.98 £7.48
53	HV532 17 58-02 Available to backorder	Lever	£28.20 £23.50
54	HV532 17 55-60 Available to backorder	Pin Retaining Screw	£13.46 £11.22
