Husqvarna Yth22V46

Model Year -

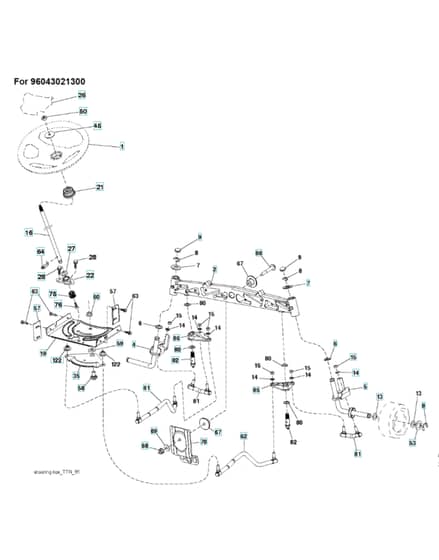

Steering 2 - Parts Diagram

	Part No.	Details
1	HV532 43 97-40 Available to backorder	Steering Wheel	£97.92 £81.60
2	HV583 51 27-01 Available to backorder	Subasm.Axle.Cast.Nztr.	£252.24 £210.20
4	HV583 51 28-01 Available to backorder	Weldment.Spindle.Lh.15.Nztrlh	£72.48 £60.40

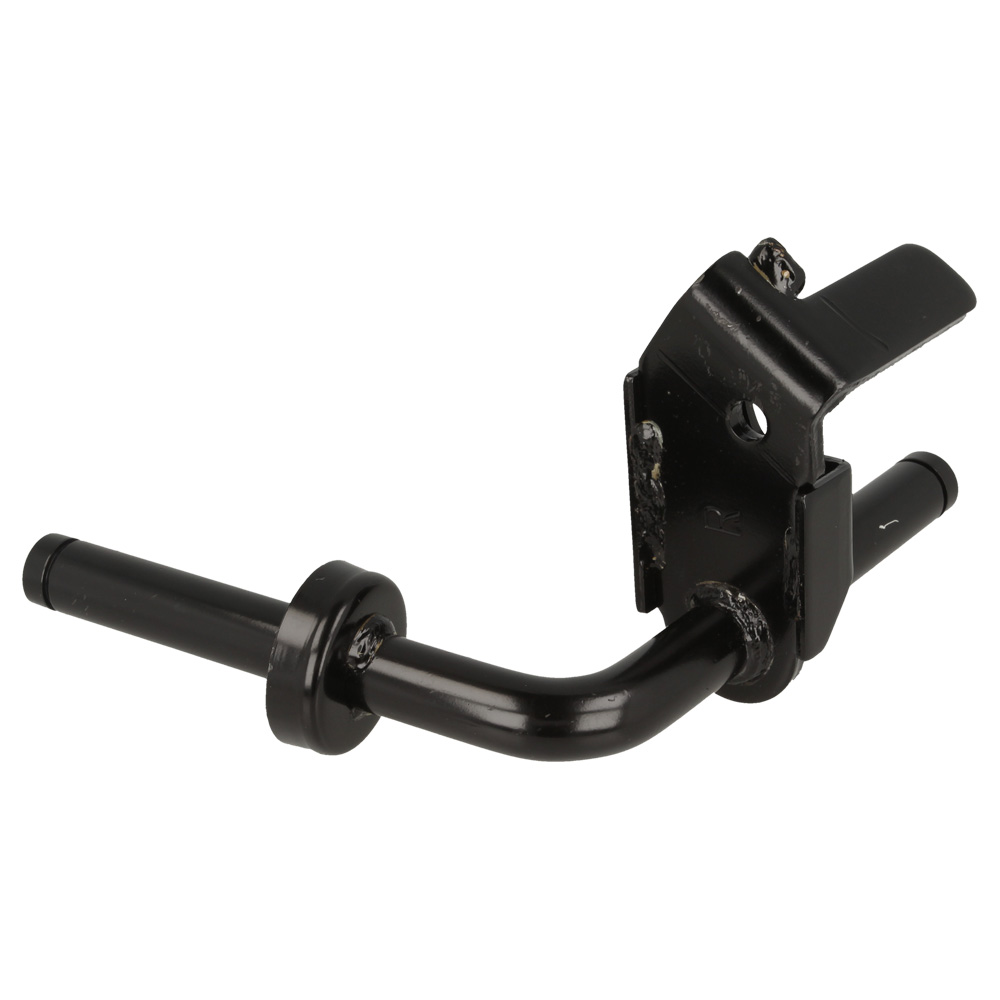

5	HV583 51 29-01 Available to backorder	Weldment.Spindle.Rh.15.Nztrrh	£73.80 £61.50
6	HV532 00 62-66 Available to backorder	Washer	£2.83 £2.36
7	HV532 12 17-48 Available to backorder	Washer	£6.00 £5.00
8	HV812 00 00-29 In stock	Retainer Ring	£0.77 £0.64
9	HV532 12 12-32 Available to backorder	Hub Cap	£5.60 £4.67
13	HV532 12 17-49 In stock	Washer	£2.82 £2.35
16	HV587 73 89-04 Available to backorder	Steering Column	£119.88 £99.90
19	HV532 19 47-29 Available to backorder	Plate	£76.80 £64.00
21	HV587 73 89-05 Available to backorder	Kit	£19.86 £16.55
22	HV587 73 89-01 Available to backorder	Kit	£12.48 £10.40
26	HV532 43 97-43 Available to backorder	Hub Cap	£14.48 £12.07
27	HV819 21 16-16 Available to backorder	Washer	£2.83 £2.36
28	HV817 00 06-12 Available to backorder	Screw	£5.78 £4.82
35	HV583 55 14-01 Available to backorder	Gear	£81.60 £68.00
45	HV587 01 64-01 Available to backorder	Washer	£2.56 £2.13
50	HV532 40 91-49 Available to backorder	Nut	£4.82 £4.02
53	HV532 18 89-67 In stock	Washer	£4.33 £3.61
58	HV532 19 47-47 Available to backorder	Bolt	£13.46 £11.22
59	HV532 19 47-48 Available to backorder	Washer	£4.86 £4.05
61	HV597 06 98-02 Available to backorder	Link Arm Assylh	£48.52 £40.43
62	HV597 06 99-02 Available to backorder	Link Arm Assyrh	£63.96 £53.30
64	HV532 19 98-49 Available to backorder	Spring Retainer	£3.46 £2.88
66	HV871 02 07-48 Available to backorder	Bolt	£9.62 £8.02
67	HV532 19 47-37 Available to backorder	Bushing	£21.16 £17.63
68	HV873 90 07-00 In stock	Nut	Was £4.92 £4.10 Special Price £3.54 £2.95
69	HV532 19 91-62 Available to backorder	Washer	£9.62 £8.02
70	HV585 33 88-01 Available to backorder	Bracket	£32.04 £26.70
76	HV580 68 36-01 Available to backorder	Screw	£1.79 £1.49
80	HV532 00 13-70 Available to backorder	Washer	£4.69 £3.91
82	HV532 44 21-47 Available to backorder	Bolt	£22.44 £18.70
85	HV583 56 11-01 Available to backorder	Subasm.Pivot.Rh.Nztr	£45.52 £37.93
86	HV583 56 10-01 Available to backorder	Subasm.Pivot.Lh.Nztr	£45.52 £37.93
