Husqvarna Yth22V46 - Electrical 2

Name: Husqvarna Yth22V46 - Electrical 2
SKU: yth22v46_electrical_2-group
Price: 2.15 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

Husqvarna Yth22V46

Model Year -

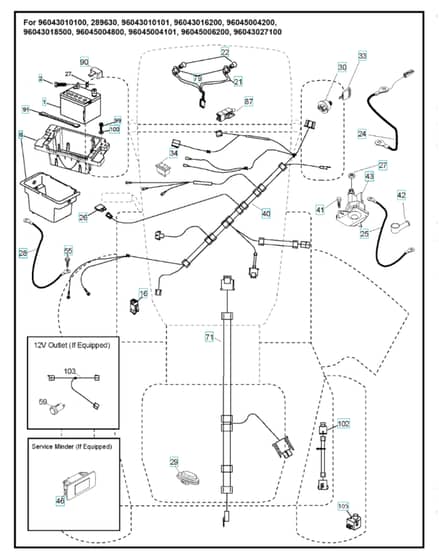

Electrical 2 - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
2	HV874 76 04-12 Available to backorder	Bolt	£2.58 £2.15
8	HV587 20 51-01 Available to backorder	Trayfor 96045004101	£31.72 £26.43
8	HV532 19 32-28 Available to backorder	Boxfor 96043010100. 289630. 96043010101	£56.94 £47.45
16	HV532 17 61-38 Available to backorder	Micro Switch	£14.32 £11.93
21	HV532 40 02-52 Available to backorder	Harnessfor All Except 96043010100	£27.82 £23.18
22	HV532 00 41-52 Available to backorder	Bulb	£4.49 £3.74
24	HV585 55 56-01 Available to backorder	Cablefor All Except 96043010100. 289630. 96043010101	£14.88 £12.40
25	HV585 55 55-01 Available to backorder	Cable	£15.54 £12.95
26	HV532 17 51-58 Available to backorder	Fuse	£5.68 £4.73
28	HV532 41 65-88 Available to backorder	Cablefor 96045004101. 96045006200. 96043027100	£13.12 £10.93
28	HV532 14 54-91 Available to backorder	Cablefor 96043016200. 96045004200. 96043018500. 96045004800	£13.66 £11.38
28	HV532 19 88-85 Available to backorder	Cablefor 96043010100. 289630. 96043010101	£20.28 £16.90
29	HV532 40 15-45 Available to backorder	Switch	£24.12 £20.10
30	HV532 19 33-50 Available to backorder	Ignition Module	£31.08 £25.90
33	HV532 41 19-33 Available to backorder	Key	£10.48 £8.73
34	HV532 11 07-12 Available to backorder	Switch	£17.14 £14.28
40	HV532 40 10-98 Available to backorder	Cablefor All Except 96045006200. 96043027100	£80.60 £67.17
43	HV582 04 28-01 In stock	Solenoidfor All Except 96045006200. 96043027100	£21.96 £18.30
43	HV582 04 28-02 In stock	Solenoidfor 96045006200. 96043027100	£21.96 £18.30
46	HV586 16 18-01 Available to backorder	Hour Meterfor All Except 96045006200. 96043027100	£79.64 £66.37
71	HV532 40 04-49 Available to backorder	Cablefor 96043010100. 289630. 96043010101	£32.36 £26.97
87	HV532 19 78-02 Available to backorder	Switch	£17.78 £14.82
90	HV532 43 53-95 Available to backorder	Terminal Cover	£6.34 £5.28
91	HV532 19 02-70 Available to backorder	Strap Battery Mount Frofor 96043016200. 96045004200. 96043018500	£3.36 £2.80
99	HV817 67 04-12 Available to backorder	Screwfor All Except 96043010100. 289630. 96043010101	£5.32 £4.43
100	HV819 09 14-16 Available to backorder	Washerfor 96043016200. 96045004200. 96043018500. 96045004800. 96045004101	£3.12 £2.60
105	HV532 40 75-68 Available to backorder	Switch	£16.34 £13.62
