Husqvarna Yth22V46 - Chassis & Frame

Name: Husqvarna Yth22V46 - Chassis & Frame
SKU: yth22v46_chassis_frame-group
Price: 0.77 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

Husqvarna Yth22V46

Model Year -

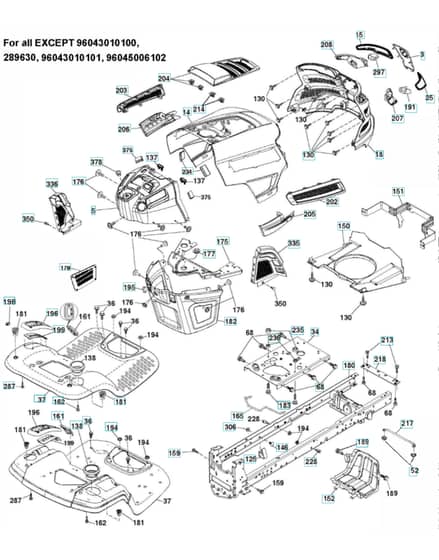

Chassis & Frame - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
3	HV532 44 44-81 Available to backorder	Logotype	£16.18 £13.48
15	HV532 43 97-33 Available to backorder	Lenslh	£22.00 £18.33
25	HV532 44 33-85 Available to backorder	Lensrh	£22.64 £18.87
34	HV580 91 08-01 Available to backorder	Chassis	£124.22 £103.52
37	HV532 44 12-06 Available to backorder	Fenderfor All Except 96043016200. 96045004200. 96043018500. 96045004800. 96045004101. 96045006200. 96043027100	£271.08 £225.90
125	HV581 68 48-01 Available to backorder	Clip	£0.92 £0.77
130	HV532 41 63-58 Available to backorder	Screwfor All Except 96045006100. 96045006200. 96043025700. 96043027100	£2.06 £1.72
137	HV532 40 75-90 Available to backorder	Damping Piece	£5.96 £4.97
138	HV532 43 97-47 Available to backorder	Holder	£4.92 £4.10
146	HV581 85 79-01 Available to backorder	Bolt	£2.84 £2.37
150	HV532 43 97-74 Available to backorder	Air Duct	£58.86 £49.05
151	HV532 43 66-70 Available to backorder	Bracket	£70.52 £58.77
152	HV532 43 98-70 Available to backorder	Shield	£65.34 £54.45
162	HV532 14 24-32 Available to backorder	Screwfor All Except 96045006100. 96045006200. 96043025700. 96043027100	£2.34 £1.95
175	HV590 60 77-02 Available to backorder	Cross Member	£66.64 £55.53
176	HV532 40 07-76 Available to backorder	Screw	£2.06 £1.72
177	HV532 19 52-28 Available to backorder	Bushingfor All Except 96043016100. 96043016200. 96045004100. 96045004200	£10.78 £8.98
177	HV532 19 52-27 Available to backorder	Bushingfor 96043016100. 96043016200. 96045004100. 96045004200	£10.72 £8.93
178	HV532 19 97-82 Available to backorder	Netfor 96043016100. 96043016200. 96043018101	£29.12 £24.27
182	HV532 40 68-59 Available to backorder	Dash	£168.20 £140.17
183	HV874 52 05-20 Available to backorder	Boltfor All Except 96045006100. 96045006200. 96043025700. 96043027100	£4.78 £3.98
189	HV817 00 06-12 Available to backorder	Screwfor All Except 96043021300. 96045006100. 96045006200. 96043025700. 96043027100	£5.68 £4.73
189	HV532 42 88-67 Available to backorder	Boltfor 96043021300. 96045006100. 96045006200. 96043025700. 96043027100	£4.02 £3.35
194	HV873 90 05-00 Available to backorder	Nutfor All Except 96045006100. 96045006200. 96043025700. 96043027100	£2.72 £2.27
196	HV547 63 47-01 Available to backorder	Consoleconsole Asm. (Includes Console. Indicator. Plate)	£22.72 £18.93
199	HV532 41 34-85 Available to backorder	Platefor 96043016200. 96045004200. 96043018500. 96045004800. 96045004101	£19.40 £16.17
202	HV532 43 97-28 Available to backorder	Coverrh	£29.12 £24.27
203	HV532 43 97-27 Available to backorder	Coverlh	£29.76 £24.80
204	HV587 48 58-01 Available to backorder	Vent	£44.64 £37.20
205	HV532 43 97-30 Available to backorder	Skirtrh	£27.18 £22.65
206	HV532 43 97-29 Available to backorder	Skirtlh	£33.00 £27.50
207	HV587 46 48-01 Available to backorder	Headlightrh	£23.94 £19.95
208	HV587 46 45-01 Available to backorder	Headlightlh	£23.94 £19.95
214	HV532 19 91-45 Available to backorder	Clip	£0.92 £0.77
234	HV532 40 47-42 Available to backorder	Damping Piecefor 96043016100. 96043016200. 96045004100. 96045004200. 96043018500. 96045004101. 96043018101	£12.28 £10.23
235	HV532 40 61-29 Available to backorder	Spacerfor All Except 96045006100. 96045006200. 96043025700. 96043027100	£9.16 £7.63
236	HV873 93 05-00 Available to backorder	Nut	£2.34 £1.95
336	HV532 44 53-09 Available to backorder	Cover	£40.12 £33.43
350	HV532 44 51-43 Available to backorder	Clip	£1.01 £0.84
375	HV586 90 82-01 Available to backorder	Bumperfor 96043027100. 96043025700. 96045006200. 96045006100. 96043021300. 96045004800. 96043018100. 96045004500. 96045006101	£5.96 £4.97
378	HV590 84 98-01 Available to backorder	Bushingfor 96045006100. 96045006200. 96043025700. 96043027100. 96045006101	£6.08 £5.07
